Proxima NW2 KING GATES K 2-channel

Proxima NW2 radio receiver compatible with radio KING GATES K - 819 pilots

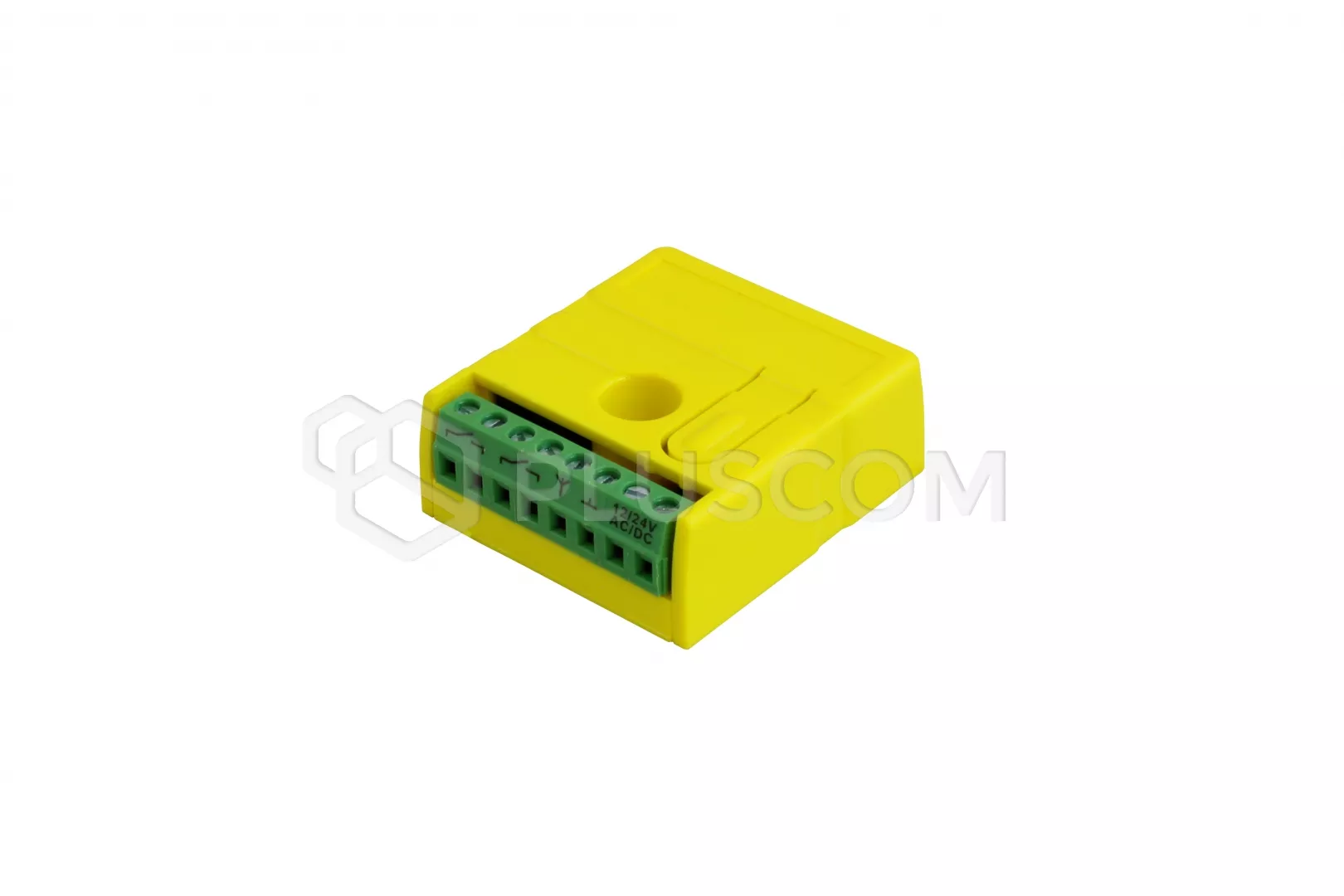

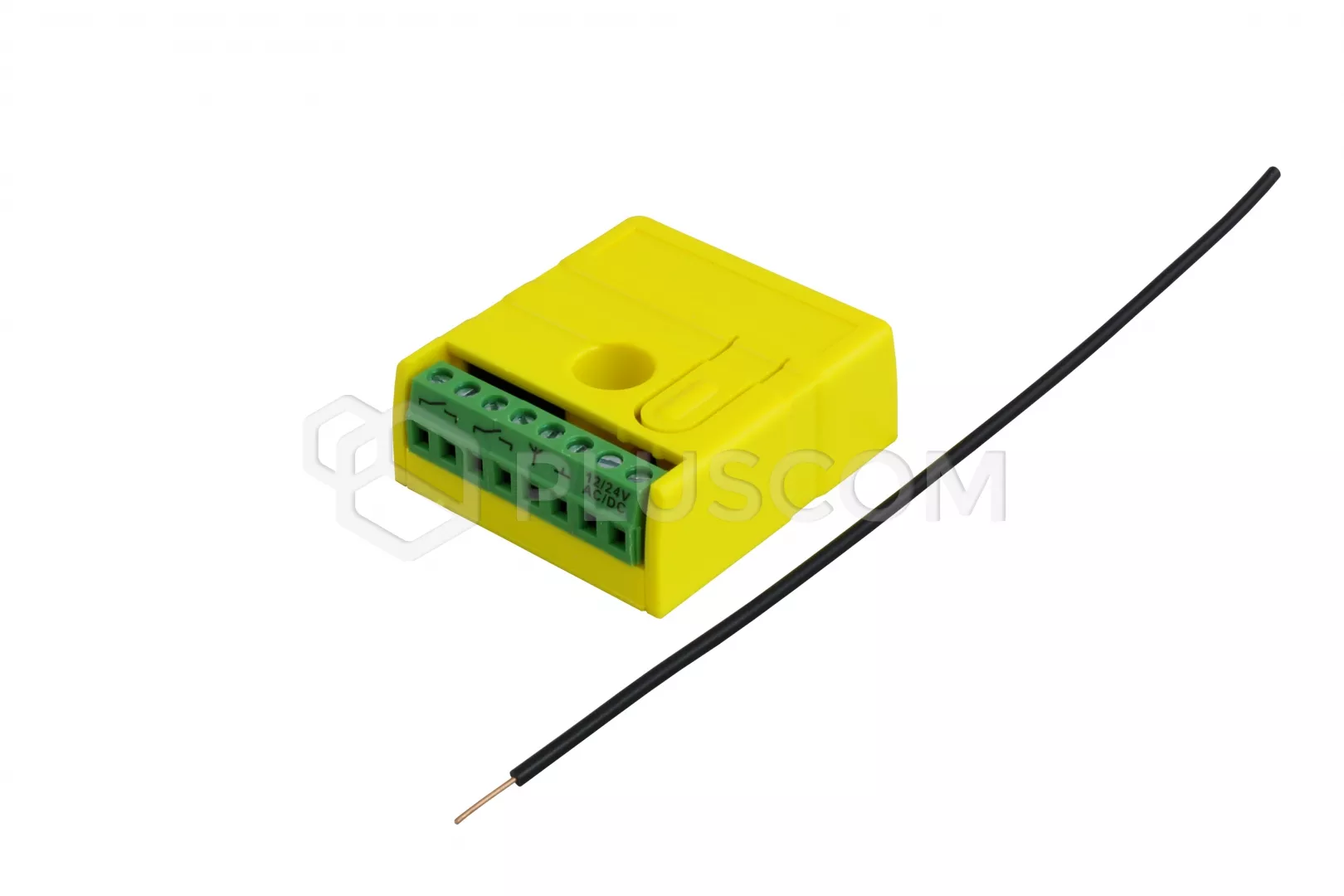

Miniature superheterodyne radio receiver 433,92 MHz equipped with two relay outputs NO. It can work with 819 pilots. The controller is ideal for control systems, gate automation, blinds and security systems of buildings. Will be used in situations where one remote you want to control the automation from different manufacturers.

PRODUCT FEATURES

• miniature size, simple installation
• a large operating range of up to 200m (superheterodyne receiver with high sensitivity)
• adopts leading system rolling code remotes + remotes with HCS system
• the ability to delete the registered remote control without his presence (useful when you want to delete from the memory of a lost remote control)
• two modes of operation:
• • bistable with reset
  • monostable (uptime 1-999s)
• integrated buzzer, acoustic confirmation response pilots, output activation


Programming mode a particular channel, operating time monostable mode and operations pilots performed using only one button. Navigating the menus and programming facilitates the acoustic driver.

TECHNICAL PARAMETERS way radio: KING GATES K number of channels: 2 the number of pilots: 819 power supply: 12-24 V DC / AC current consumption: 10mA output load: 1A 2x 24V/1A operating frequency: 433.92 MHz dimensions: 37x41x15mm hole diameter 4/8mm weight 23g

Proxima NW2 KING GATES K 2-channel 433MHz 819 pilots
