Proxima NW2 BENINCA 2-channel

Proxima NW2 radio receiver compatible with radio BENINCA - 819 pilots

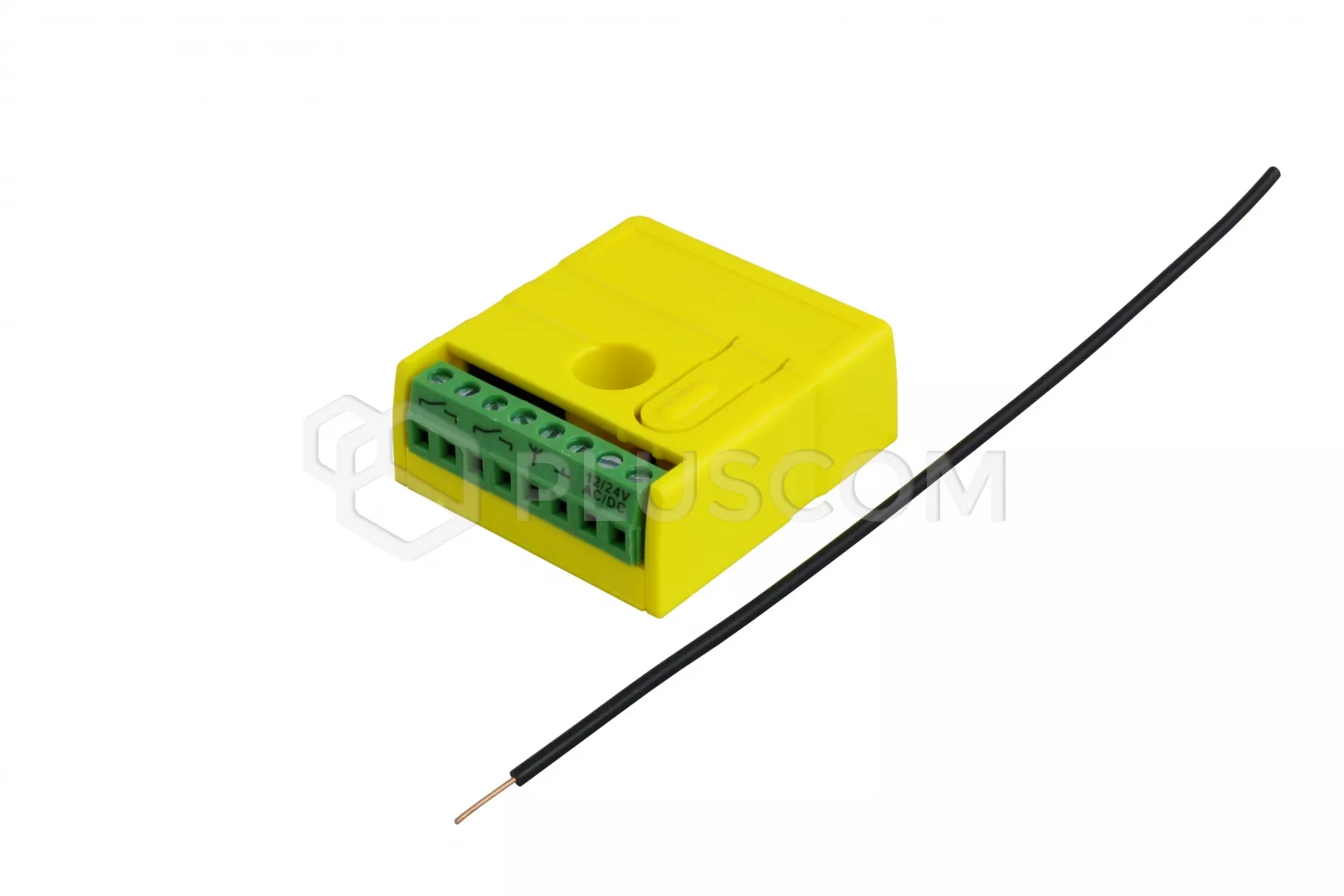

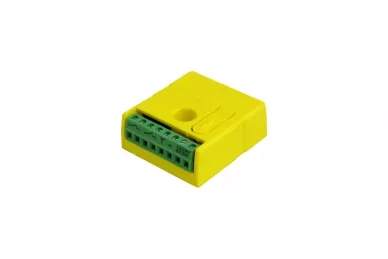

A miniature superheterodyne radio receiver, cooperating with Proxima rolling code remotes on frequency 433.92MHz equipped with two relay outputs NO. It can work with 819 pilots. The controller is ideal for control systems, gate automation, blinds and security systems of buildings. Will be used in situations where one remote you want to control the automation from different manufacturers.

PRODUCT FEATURES

• miniature size, simple installation
• a large operating range of up to 200m (superheterodyne receiver with high sensitivity)
• the ability to delete the registered remote control without his presence (useful when you want to delete from the memory of a lost remote control)
• three modes of operation:
• • bistable with reset
  • monostable (uptime 1-999s)
  • (as long as the press)
• integrated buzzer, acoustic confirmation response pilots, output activation


Programming mode a particular channel, operating time monostable mode and operations pilots performed using only one button. Navigating the menus and programming facilitates the acoustic driver.

TECHNICAL PARAMETERS

• way radio: BENINCA

• number of channels: 2
• the number of pilots: 819
• power supply: 12-24 V DC / AC
• current consumption: 15mA (off relays)
• output load: 1A 2x 24V/1A
• operating frequency: 433.92 MHz
• dimensions: 37x41x15mm hole diameter 4/8mm
• weight 24g
