Proxima NW1 Beninca 1-channel

46,90 EUR including 23.00% VAT
Product code: #18337
Manufacturer: Proxima
  • Memory of pilots: 999
  • Number of channels: 1
  • Power: DC/AC 12-24V
  • Operating modes: monostable (1-999s), bistable, (as long as you press)
  • Radio Way: Beninca
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Proxima Remote control Banana BENINCA 433MHz Bi:KLIK

Proxima NW1 radio receiver compatible with radio Beninca

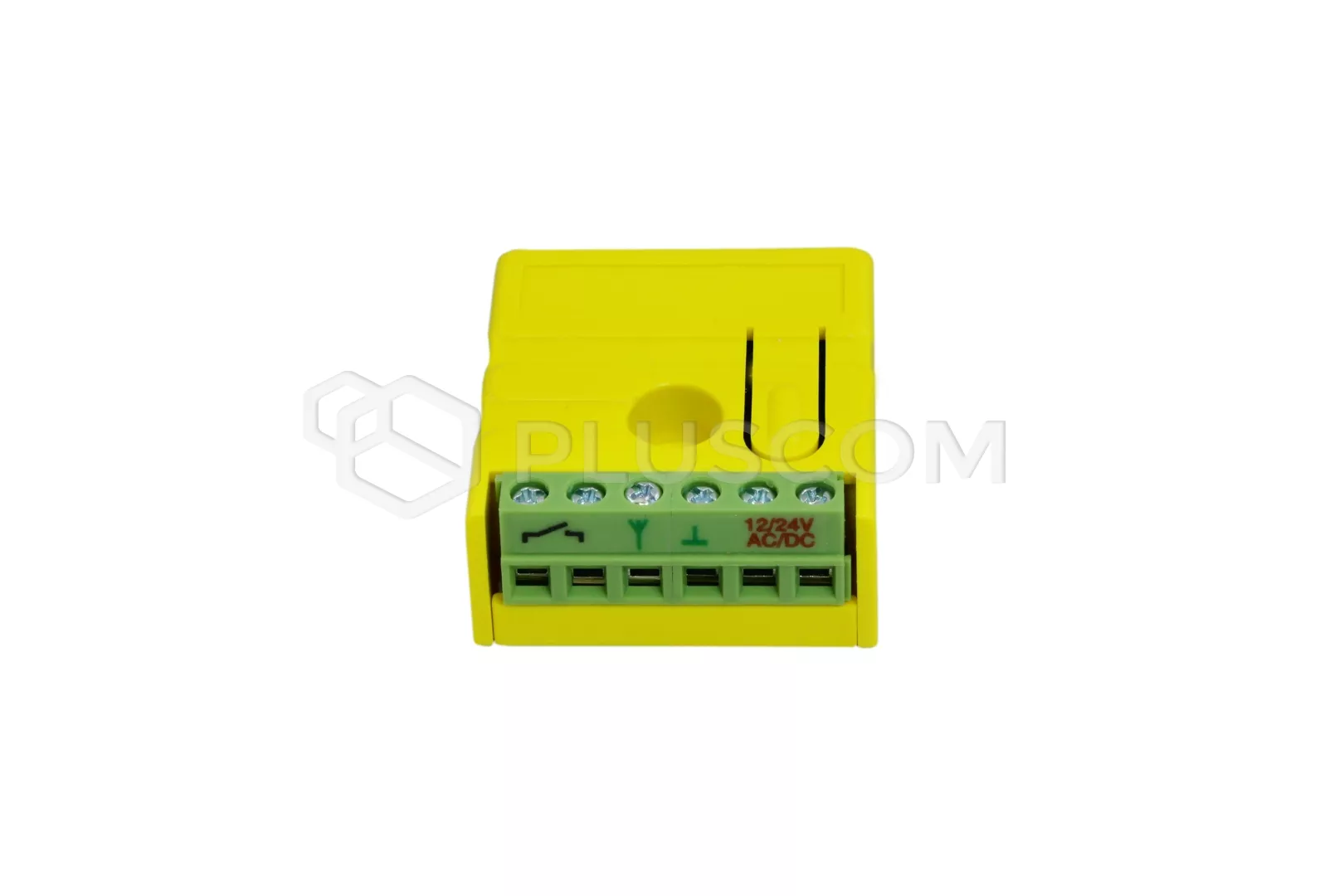

Terminal block:

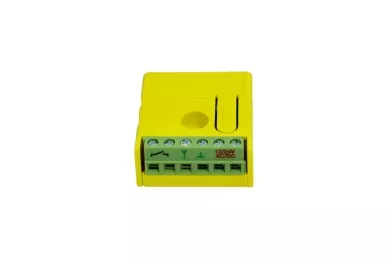

Terminal block:

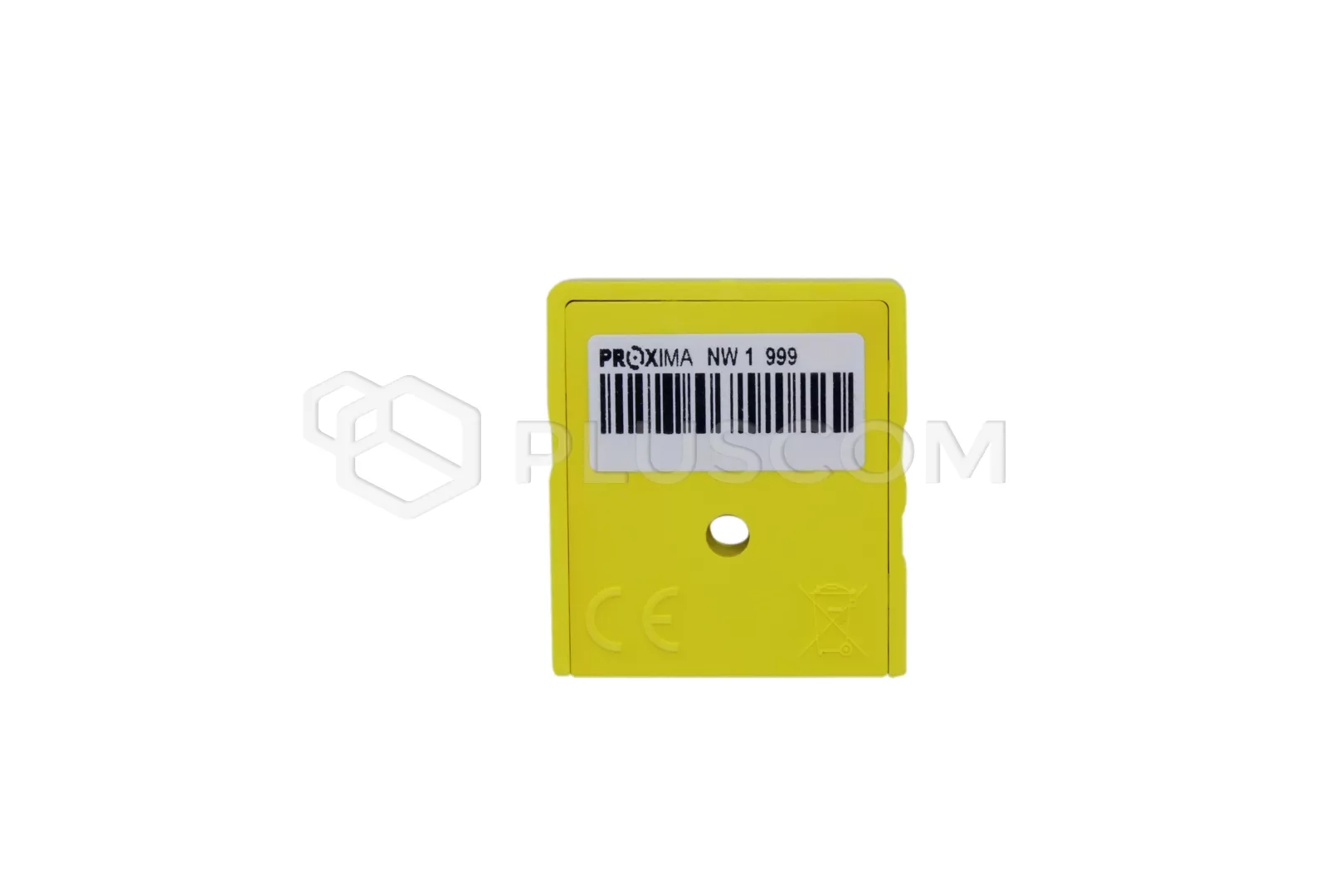

Rear view, mounting hole:

Rear view, mounting hole:

Miniature superheterodyne radio receiver 433,92 MHz equipped with one relay output (NO). It can work with 999 pilots. The controller is ideal for control systems, gate automation, blinds and security systems of buildings. Will be used in situations where one remote you want to control the automation from different manufacturers.

PRODUCT FEATURES
  • miniature size, simple installation
  • a large operating range of up to 200m (superheterodyne receiver with high sensitivity)
  • the ability to delete the registered remote control without his presence (useful when you want to delete from the memory of a lost remote control)
  • three modes of operation:
    • bistable with reset
    • monostable (uptime 1-999s)
    • (as long as the press)
  • integrated buzzer, acoustic confirmation response pilots, output activation
Programming mode a particular channel, operating time monostable mode and operations pilots performed using only one button. Navigating the menus and programming facilitates the acoustic driver.

TECHNICAL PARAMETERS
  • Radio Way: Beninca
  • number of channels: 1
  • the number of pilots: 999
  • power supply: 12-24 V DC / AC
  • current consumption: 15mA (off relays)
  • output load: 1x 24V/1A
  • operating frequency: 433.92 MHz
  • dimensions: 37x41x15mm hole diameter 4/8mm
  • weight 23g

Download
Datasheet 1.89 MB
User Manual 0.32 MB
