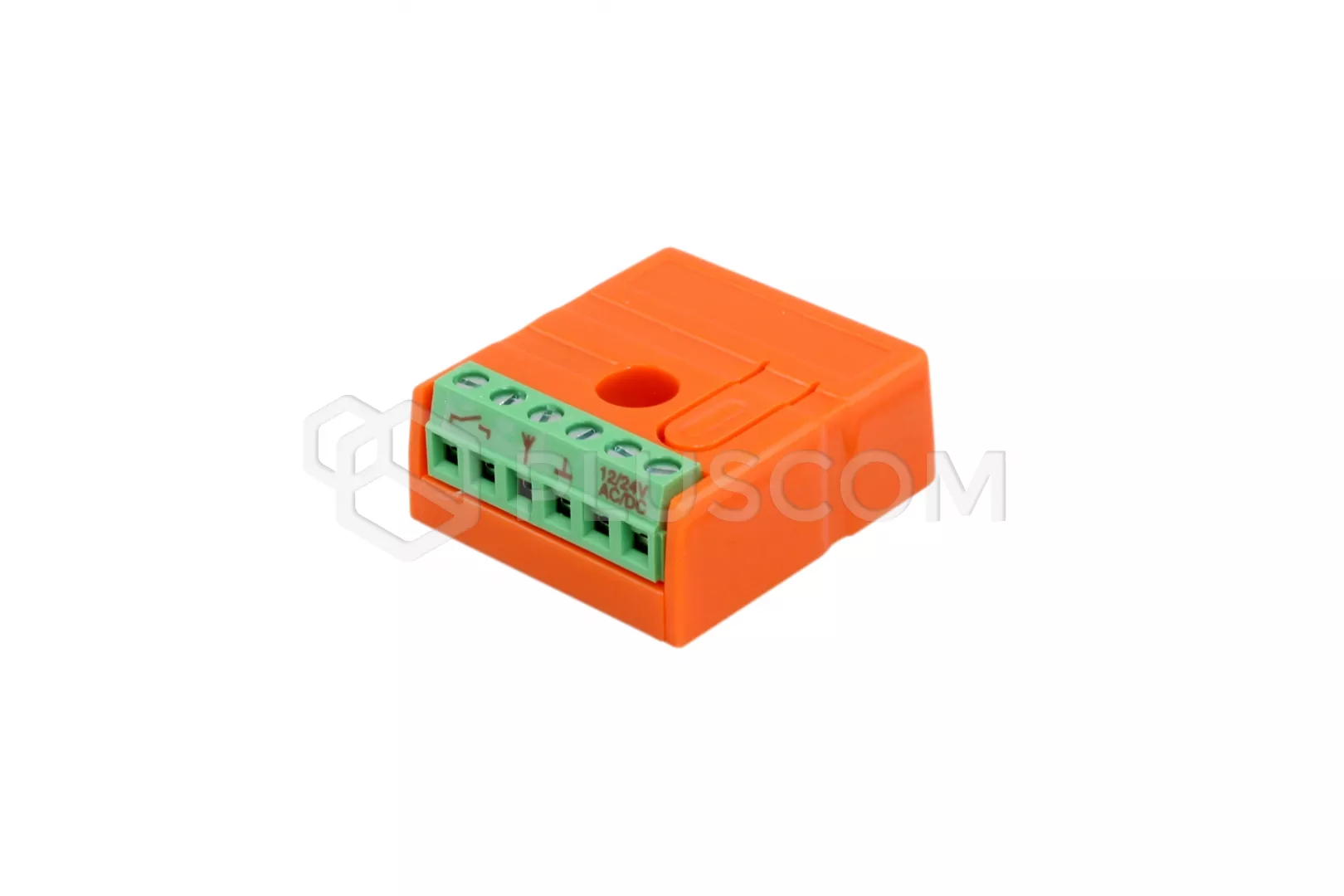

Proxima NMx WIŚNIOWSKI2 1-channel universal receiver

NMx WIŚNIOWSKI 1-channel universal receiver

The following remotes can be programmed for the controller:

• WIŚNIOWSKI system remote controls - (leading system) operation variable code, ensures high copy protection
• remote controls from other manufacturers with HCS, operating in the 433MHz band

APPLICATION
The biggest advantage of the NMx receiver is the ability to load different pilots manufacturers.
We can use this function when we want to use different remote controls systems for controlling the gate drive or the barrier in the company. Employees who in their homes they already have automation from different manufacturers with the same remote control they open a gate or a barrier in the company. This reduces the cost of purchasing additional pilots and employees do not have to have more pilots with them.
An additional distinguishing function is the possibility of programming in the receiver combination of remote control buttons to control the channel operation.

One-channel universal controller, powered by direct or alternating current with a voltage of 12V or 24V. You can program a maximum of 31 to the receiver remotes in the WIŚNIOWSKI + system, you can also program other remotes manufacturers.

BASIC PARAMETERS

• Power: AC/DC 12-24V
• Current consumption: 15mA relay off
• Output: NO relay, 24V-1A load

• Number of pilots: 31
• Number of channels: 1 (relay channel)
• Channel modes:

• • Monostable (1,3,5.25 seconds)
  • bistable
  • As Long As You Press
• dimensions: 37x41x15mm (hole 4/8mm)
• Weight: 23g
