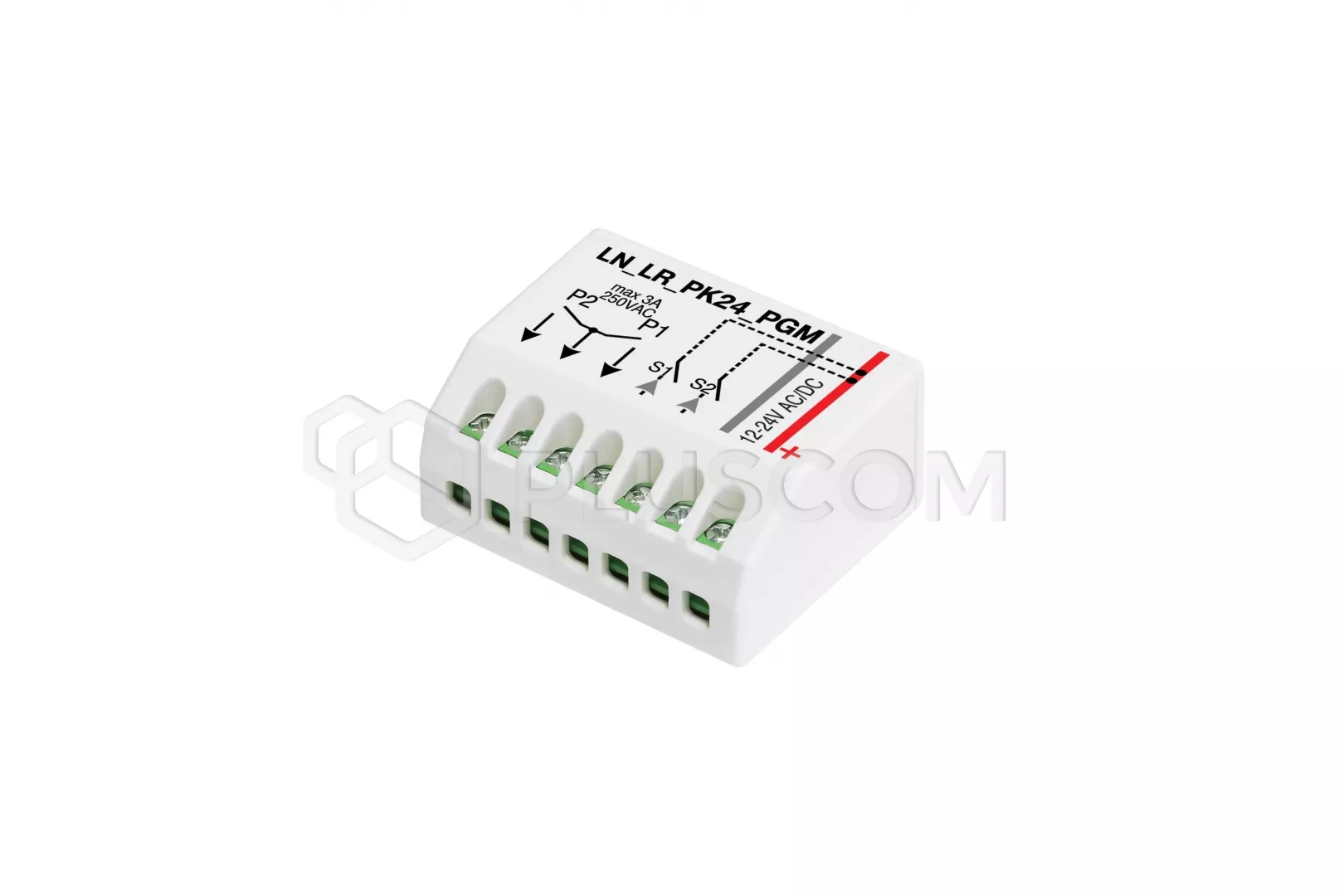

Proxima LN LR PK24 PGM controller

101,89 EUR including 19.00% VAT
Product code: #25296
Manufacturer: Proxima
  • A controller for radio reception of the status of PGM outputs from alarm control panels
  • Power: 12-24V AC/DC
  • Memory of 500 PCB pilots
  • LoRa long range radio technology
  • Range up to 1km
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Proxima PCB LR PGM PGM expansion board

Proxima LN LR PK24 PGM driver


The controller is designed to receive the status of the control panel PGM outputs by radio alarm, sent with the remote control PCB_LR_PGM. The controller can also be controlled P4_LR_PGM, P8_LR_PGM handheld transmitters and local, wired S1_S2.
The device uses LoRa technology - long-range radio technology (LongRange), resistant to interference, the range of which can reach up to 1km per open space.
LN LR PK24 PGM has a memory of 500 remotes PCB_P8_P4_LR_PGM.

THE MOST IMPORTANT FEATURES OF THE DRIVER
  • power supply 12-24V AC / DC and has two potential-free relay channels can control 230VAC / 2A voltage, and two control inputs S1-S2.
  • memory of 500 remotes PCB_P8_P4_LR_PGM
  • LoRa long range radio technology
  • Each channel can run in monostable mode with timing 1s-10s-30s-1min-10min-30min-1h-12h, or in bistable mode
  • the driver can operate in one of the four frequency bands radio, set with the PRG button of the controller. It is possible to act four PGM Systems side by side
The PCB_LR_PGM pilot input can be registered in the driver channel into one way: when input IN1-IN10 is short-circuited, the channel relay is turned on, and input is closed IN1- IN10 turns off the channel relay.
The button of the P4 and P8_LR_PGM pilots and the wired local input S1_S2, can register in the controller channel in three ways: turn on the channel relay, change channel relay state, turn off channel relay.

TECHNICAL DATA:
  • power supply: 12-24V AC/DC
  • power consumption: 20mA
  • P1_P2 outputs: 2 x 3A / 230AC potential-free NO contacts
  • intput: 2x S1_S2
  • ISM band frequency: 433MHz LoRa
  • dimensions: 42x37x22mm
