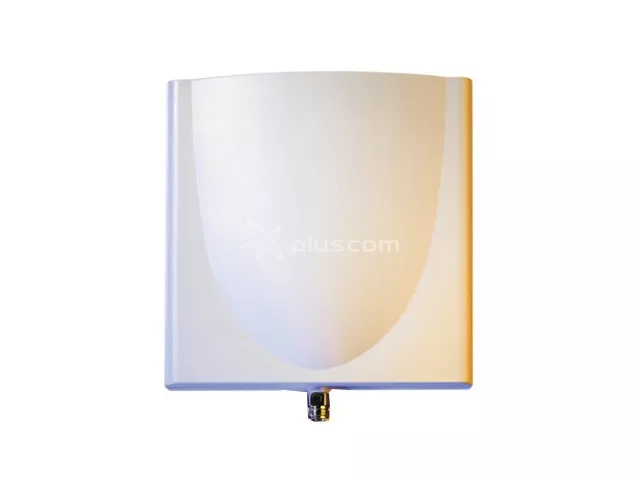

Panel Proxim 5054-PA-18

69,56 EUR including 20.00% VAT
Product code: #669
Manufacturer: Proxima
  • Gain: 18 dBi
  • Beamwidth: 18° / 18° H/V
  • Outer size: 200x200x50
  • Connector N - Female

Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice WALKY1024 MYGO gate kit

The antenna operates in the band of 5.25 - 5.875 GHz. Made of ABS plastic is resistant to weathering and UV rays. It can operate at temperatures of -40 ° C to 80 ° C.
Specifications:
  • Frequency:  5.25-5875 MHz
  • Gain: 18 dBi
  • VSWR: 1.5 : 1 Max.
  • Polarization: Linear, vertical
  • HPBW / horizontal 18 degrees
  • HPBW / vertical 18 degrees
  • Front to back ratio: 30 dB
  • Downtilt: 0 degrees
  • Power handling 10 W (cw)
  • Impedance: 50 Ohms
  • Connector N-type Female
  • Wind Survival (perEIA-222-F at 100’ height) 216 km/hr
  • Temperature -40 C to +80 C
  • Humidity 95%
  • Lightning Protection DC ground
  • Radome color black
  • Radome material: ABS, UV resistant
  • Weight: 0.825 kgw
  • Dimensions: 200 x 200 x 50 mm
