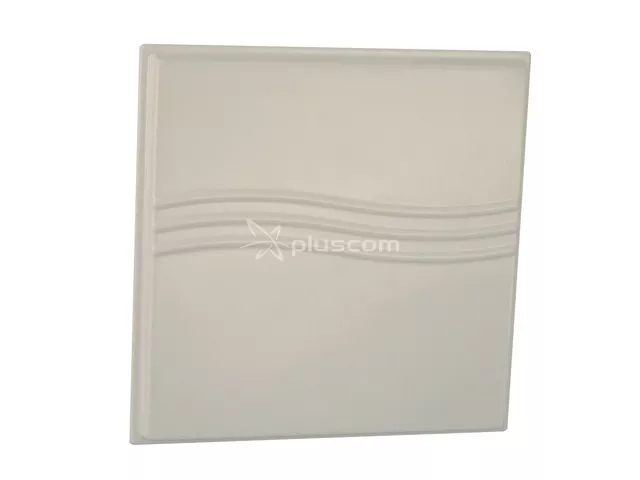

Panel Antenna TetraAnt_5_23_10_RSSL

22,32 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #1906
  • Gain: 23 dBi
  • Beamwidth: 10° / 10° H/V
  • Outer size: 330x330x50
  • Connector: N - Female

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Specification:
  • Frequency: 5.2 GHz - 6.1 gHz
  • VSWR: < 1.8 in the whole operating band
  • Gain: 23 dBi
  • Polarization: Linear
  • Elevation HPBW: 10 deg
  • Azimuth HPBW: 10 deg
  • Sidelobe supression: Better than 22 dB
  • Crosspolar rejection: Better than 22 dB
  • Front to back ratio: Better than 30 dB
  • Lightning protection: DC ground
  • Technology: Microstrip, RSLL, WIDEBAND
  • Connector/Location: N Female/Back
  • Dimensions: 330x330x50 mm with the connector
  • Weight: 1.1 kg with the mounting hardware
  • Radome material: PVC, white
  • Base material: High strength aluminum alloy
  • Construction: All - weather operation

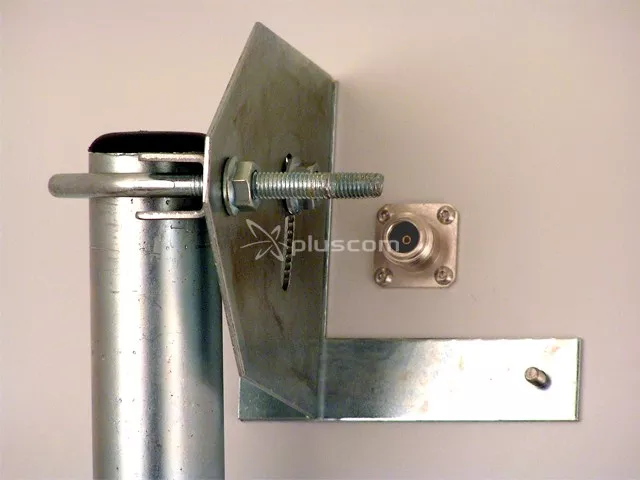

  • Mounting kit: Includes mast mounting hardware, 2 inch (51mm) max.
  • Catalogue model: TetraAnt_5_23_10_RSLL
  • Packing: Carton, 35x35x5 cm, 1.25 kg
