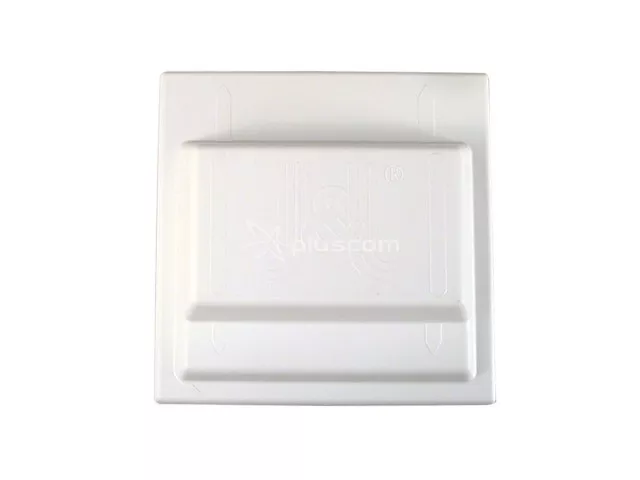

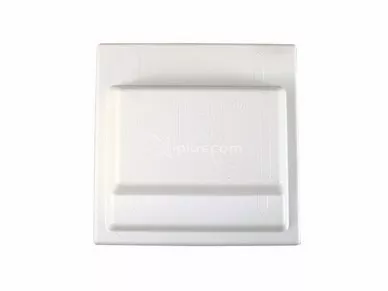

Panel antenna Jirous JPC-13

14,06 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #2463
Manufacturer: Jirous
  • Gain: 12 dBi ± 0,6 dBi
  • Beamwidth: 30° / 32° H/V
  • Outer size: 124x124x25
  • Connector: N - Female

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Specification:
  • perfect panel antenna for demanding users
  • outdoor and indoor usage
  • client antenna for short distance
  • link point-point for short distance
Technical parameters:
  • Frequency range 5,15 - 5,85 GHz
  • Gain 12 dBi ±0,6
  • VSWR  ≤ 1,5
  • Sidelobe level - 15 dB
  • Front to back ratio ≥ 38 dB
  • Beamwidth -3 dB 30°/32°
  • Connector N - Female
  • Size 124 x 124 x 25 mm
  • Polarization horizontal or vertical according to position
  • Cover UV steady plastic ABS
  • Back Sheet metal from aluminium alloy + galvanic coating + baking colour
Accessories
  • GentleBOX JE-200
  • Antenna bracket KM60
  • Antenna bracket KNS2-K
  • We deliver the antenna in sets with holders:

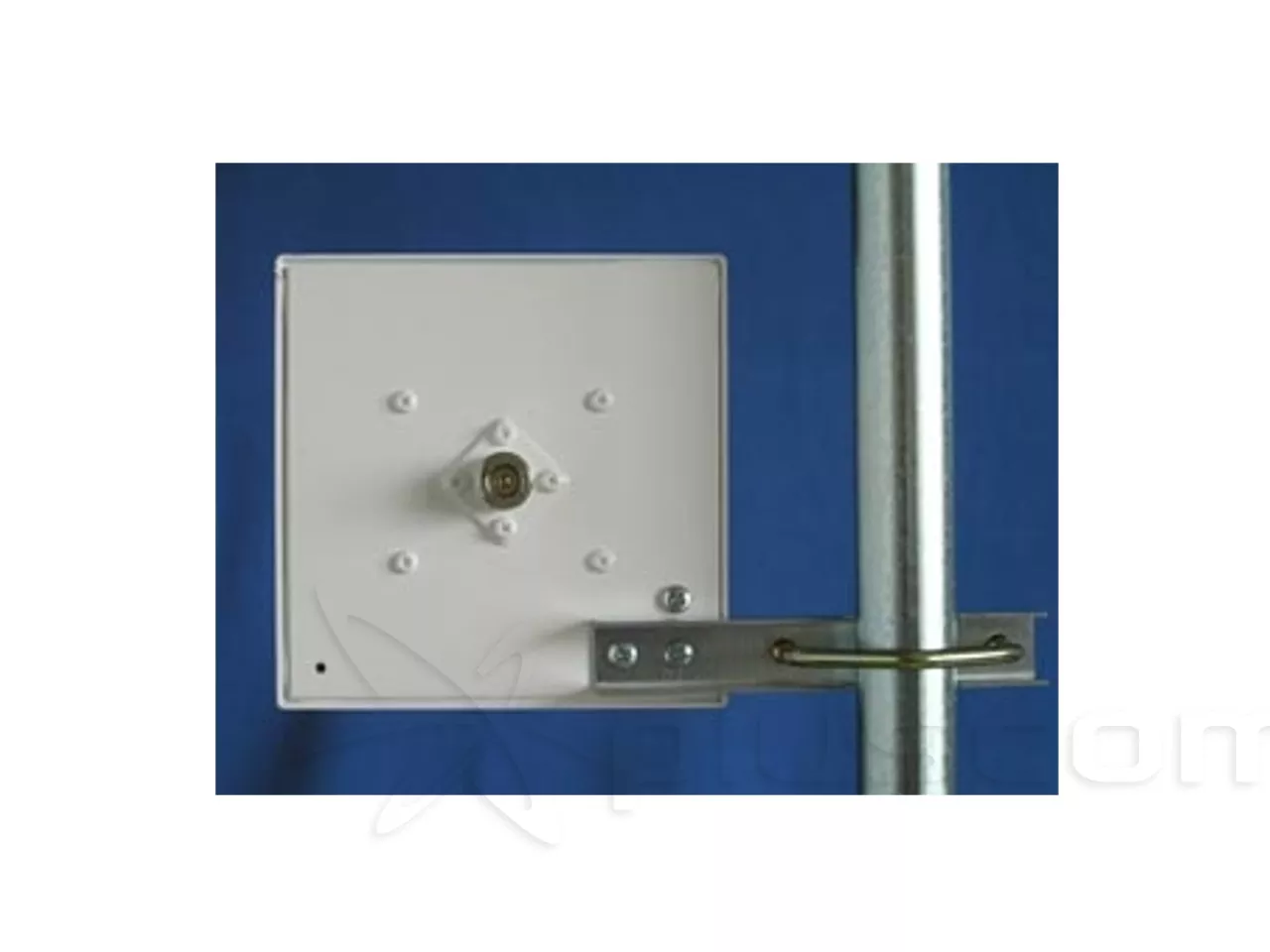

  • JPC-13 with holder for mast ø19 - 54 mm
  • JPC-13S with holder for walls (window frames,...)
