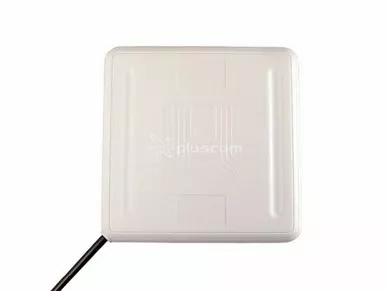

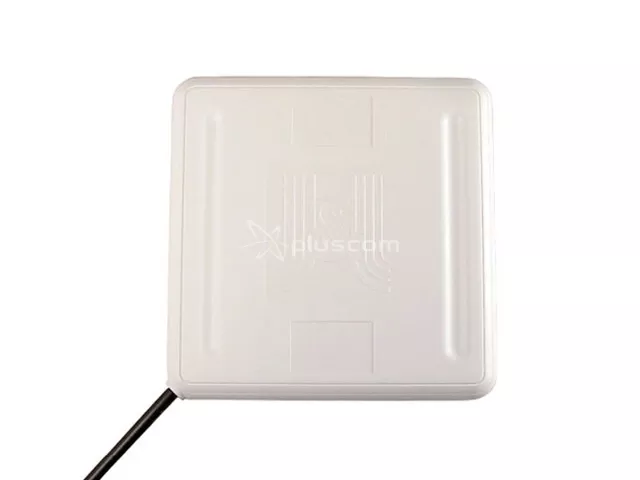

Panel Antenn Jirous JPA-9T 3m RP-SMA

12,04 EUR including 23.00% VAT
In stock. Ships today!
Product code: #2472
Manufacturer: Jirous
  • Gain: 9 dBi
  • Beamwidth: 65° / 65° H/V
  • External dimensions: 123x123x13mm
  • Mounting to the mast ø19 - 54 mm

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Specification:
  • perfect panel antenna for a demanding users
  • the lowest price on the market with a quality guarantee
  • outdoor and indoor usage as a client antenna
  • no other adapters and cables - gilded connector RP-SMA
  • supplied adhesive set JPA-9L is possible to stick on the window - inside and outside (some modern window have large attenuation and then is necessary to install outside) or to the other smooth surface.
  • attainable distance can be calculated in the section of calculation
Technical parameters:
  • Frequency range    2,4 - 2,485 GHz
  • Gain    9 dBi ± 0,5
  • VSWR cable 3m    ≤ 1,6
  • VSWR cable 0,5m    ≤ 2,0
  • Beamwidth -3dB    65° in both planes
  • Connector    RP-SMA gild
  • Polarization    horizontal or vertical according to position
  • Cover    UV steady plastic ABS
  • Attenuation of cable    0,55 dB/m
  • Dimensions    123 x 123 x 13 mm
The antenna is supplied in different versions:
JPA-9T with bracket for mast ø 19 - 54 mm
JPA-9S with bracket for walls (window frames,...)
JPA-9L with adhesive set for windows including degreasing serviette - everything from 3M quality
JPA-9P with plastic, UV resistant slips for installation on the mast - low-cost version
All versions with 0,5 or 3 m cable

Accessories:

GentleBOX JE-200
Antenna bracket KM60
Antenna bracket KNS2-K
