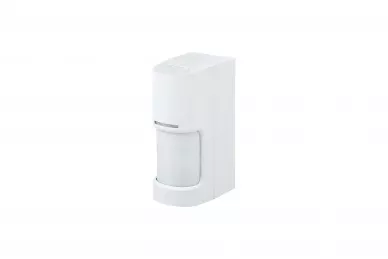

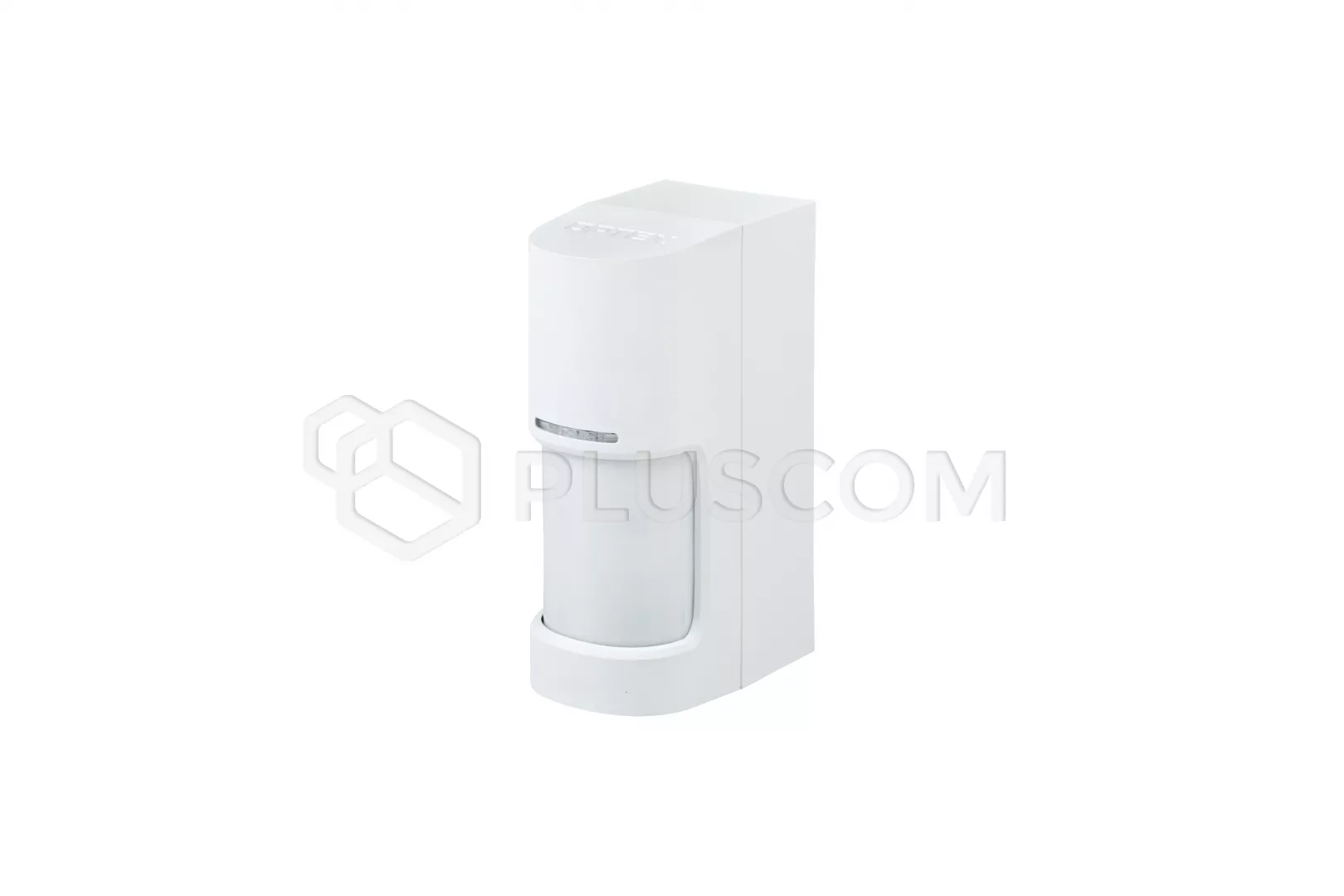

OPTEX WXS-RDAM-X5 Dual wide angle ouydoor detector with anti-masking
function battery powered
The WXS series is OPTEX's latest 180° outdoor intrusion detection sensors
with flexible range detection and settings, as well as a selectable low (0.8 -
1.2m) or high mount (2m) option and self-learning IR digital anti-masking.
Ideal as approach or flat roof protection for residential and commercial
premises, the sensor is equipped with the Shield advanced features including
double conductive shielding to avoid false alarms triggered by bright sunlight
or RFI, automatic walk test and 5-year warranty. WXS-RDAM is the wireless model
with dual-technology (PIR/Microwave). Please note the wireless transmitter and
battery are not included.
Flexible mounting height
he WXS series is OPTEX's latest 180° outdoor intrusion detection sensors
with flexible range detection and settings, as well as a selectable low (0.8 -
1.2m) or high mount (2m) option and self-learning IR digital anti-masking.
Ideal as approach or flat roof protection for residential and commercial
premises, the sensor is equipped with the Shield advanced features including
double conductive shielding to avoid false alarms triggered by bright sunlight
or RFI, automatic walk test and 5-year warranty. WXS-DAM is the hard-wired
model with dual-technology (PIR/Microwave).
Two independent left / right detection areas
In low mount configuration, the WXS intrusion detection sensors feature two
completely independent 90 degrees detection areas (left and right), that can be
set at different detection distance, sensitivity and trigger independent alarm
outputs which is very useful for PTZ activation.
Detection analysis and pet tolerance
The WX Shield outdoor intruder sensors are designed to be pet and animal
tolerant which means it will not trigger if cats, dogs, birds are in the
detection area making it very stable. Additionally they feature OPTEX Super
Multi-dimensional Analyis (SMDA) which can rule out environemental changes such
as vegetaion sway, shadow etc making the sensor very reliable.
Key Features
- up to 12m, 180 degree outdoor PIR with anti-masking
- 4 PIR + 2MW technology
- stability against light disturbance
- panoramic triple layer detection
- individual detection area size
- selectable low (0.8m-1.2m) or high (2m) mount
- independent left/ right detection areas and alarm outputs - ideal for
CCTV
Specifications
- Detection Method: passive infrared
- PIR Coverage:
-
- high mount： 9.0 m (30') 180°wide
- low mount： 12.0 m (40') 180°wide
- PIR Zones:
-
- high mount： Horizontal 14 pairs, vertical 4 layers
- low mount： Horizontal 14 pairs, vertical 2 layers
- PIR Distance Limit:
-
- high mount： 9.0 m (fixed)
- low mount： 2.5 to 12.0 m (Stepless adjustment)
- Detectable Speed: 0.3 to 2.0 m/s
- Sensitivity: 2.0℃ ( 3.6°F) at 0.6 m/s Selectable for each side
individually
- frequency: 10.525GHz
- Power Input: 3-3.6V DC
- Current Draw (except walk test): 24 μA 4 mA (max.) Standby at 3 V DC
- Alarm Period: 2.0 ± 1.0 sec.
- Warm-up Period: 60 sec. or less (LED blinks)
- Alarm (R) Output: solidstate switch, 10V DC 0.01A max. [individual: Right
or General], [N.O. or N.C.] are selectable
- Alarm (L) Output: solidstate switch, 10V DC 0.01A max. [individual: Left
or General], [N.O. or N.C.] are selectable
- Trouble Output: Tamper and trouble shared output "TR"
- Tamper Output: Tamper and trouble shared output "TR"
- LED Indicator:
-
- RED:
-
- warm-up
- alarm
- masking detection
- “High mount” setting (When the tamper switch is activated, LED
blinks if it is “High mount” setting.)
- YELLOW:
-
- Operation Temperature (except batteries): -20℃ to +45℃
- International Protection: IP 55
- Mounting: Wall, Pole (Outdoor , Indoor)
- Mounting Height:
-
- high mount：2.0 m
- low mount： 0.8 to 1.2 m
- Weight: 770 g
- Accessories: Connector for POWER and ALARM (R), Connector for ALARM (L),
Connector for TROUBLE, Velcro tape, Area masking plate x 5, Mounting screw (4
x 20 mm) x 2, Lock screw x 1
