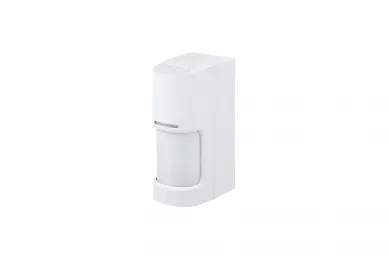

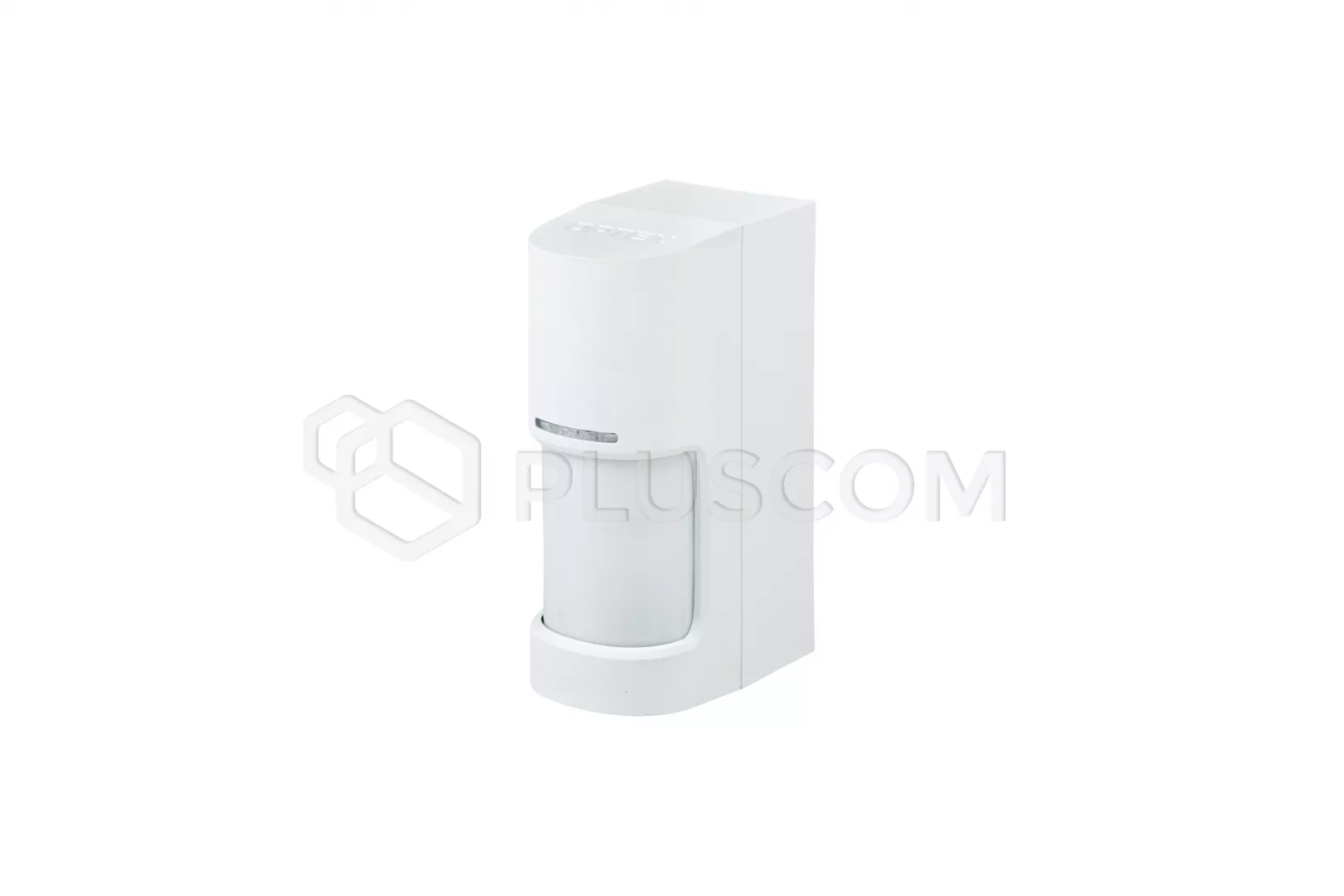

OPTEX WXI-RAM 180° wide angle ouydoor detector with range adjustment with
anti-masking function, battery powered
Part of the WXI series, a range of 12m 180 degree outdoor volumetric PIRs, the
WXI-RAM is the wireless, standard model. With its comprehensive 180° field of
view and capabilities to adapt its settings to the environment around your
premises, the WXI series will provide an effective intrusion detection sensor
for new and existing security systems. The left and right alarm detection areas
can be set independently at 2.5m, 3.5m, 6m, 8.5m and 12m.
180 degree and double layer detection
The WXI series features 180 degree detection coverage enabling with one single
sensor to cover a wide area, such as front garden, courtyard or patio area. The
double layered detection allows to ignore animals while detecting people.
Independent left / right detection area
The WXI outdoor motion sensors provide two detection areas, left and right that
can be independently set. For instance the right zone can be set at 3.5m while
the left one is set at 8.5m. The sensitivity can be high in one zone and low in
the other to match the operational requirements.
Anti-masking
The WXI-AM features an infrared (IR) anti-masking function which detects
objects covering the lens of the outdoor alarm sensor. The anti-masking
function adapts its trigger level to the environment to make it very stable.
Flexibility of wireless
The battery-operated WXI-R can be easily added on most wireless alarm systems
and provide the benefit of protecting quickly and efficiently the boundary of
the premises and of any outer buildings. Most wireless transmitters will fit
inside the sensor back box and can be powered through the PIR to feed power to
the WXI-R.
Features:
- 180° wide angle detection
- 3-3.6V DC battery powered
- Individual left and/or right alarm output
- Individual sensitivity setting
- Adjustable 8ft to 40ft detection range
- SMDA Logic: Differentiates nuisance false alarms & genuine
intrusions
- Size analysis function ignores sources of false alarms
- Self-learning IR digital anti-masking function
- Automatic walk test mode
SPECIFICATION
- Detection Method: passive infrared
- PIR Coverage: 180° wide
- PIR Zones: orizontal 14 pairs, vertical 2 layers
- PIR Distance Limit: 2.5 to 12m stepless adjustment
- Detectable Speed: 0.3 to 2m/s
- Sensitivity: 3.6°F (2.0°C) at 0.6m/s selectable for each side
individually
- Power Input: 3 to 3.6 V DC lithium batteries
- Current Draw: 16 µA stand-by 4 mA max. at 3 V DC except walk test
- Alarm Period: 2.0 ±1 sec.
- Warm-up Period: 60 sec. or less (LED blinks)
- Alarm Output (R):Solidstate switch, 10 V DC 0.01 A max. [Individual;Right
or General], [N.O. or N.C.] are selectable
- Alarm Output (L): Solidstate switch, 10 V DC 0.01 A max. [Individual;Left
or General], [N.O. or N.C.] are selectable
- Trouble output: Solidstate switch, 10 V DC 0.01 A max. [N.O. or N.C.] is
selectable
- Tamper Output: Tamper output is shared with trouble output
- LED Indicator Red LED:
-
- Warm-up
- Alarm (DIP switch ON or Walk test)
- Masking detection
- Operation Temperature: -30°C to + 60°C
- Environment Humidity: 95% max.
- International Protection: IP55
- Mounting: wall, pole (outdoor, indoor)
- Mounting Height: 0.8 to 1.2m
- Weight: 600g
- Accessories:
-
- Connector for POWER and ALARM (R)
- Connector for ALARM (L)
- Connector for TROUBLE
- Velcro tape
- 2 x Mounting screw (4 x 20 mm)
- 1 x Lock screw
