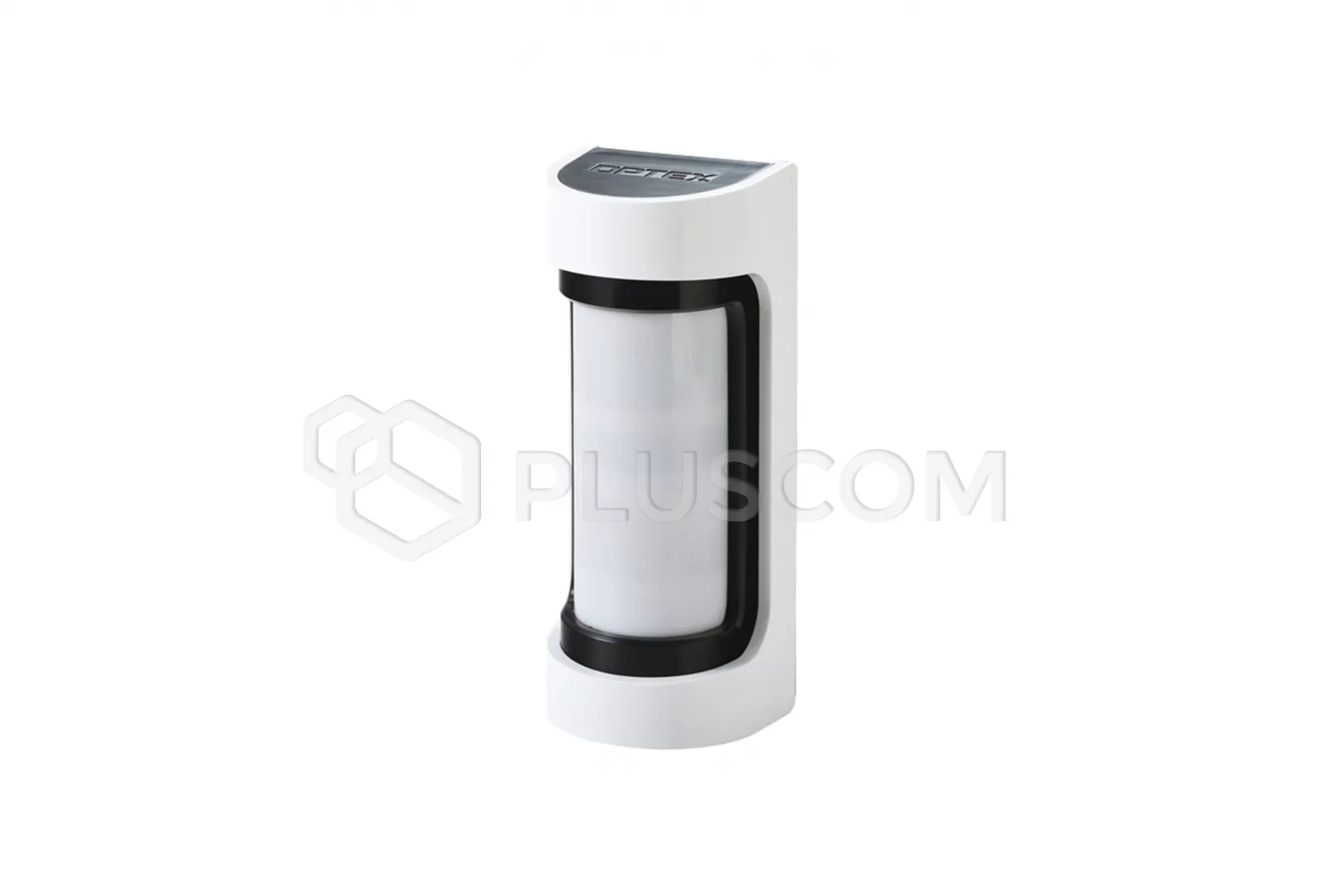

Optex VXS-RDAM-X5 Battery-powered dual outdoor detector

OPTEX VXS-RDAM-X5 Dual outdoor detector

VX Shield is a series of short range outdoor intrusion detection sensors providing reliability, convenience and security. The VXS-DAM includes an integrated algorithm of both Passive Infrarred and Microwave technology provides the ultimate stability in detection performance. In a field where strong sun hits the land or facing direct light beams from traffic, the VXs-DAM ensures there the chances of false alarm immunities as the dual technology detection system can handle more complex scenarios.

Intelligent analytics VXS model is equip with a digitally enhanced signal recognition logic called SMDA. By analyzing detection patterns and environmental information SMDA improves immunity against various noise factors such as climate changes and vegetation sways, and can distinguish between the cause of nuisance false alarms and genuine intrusions.

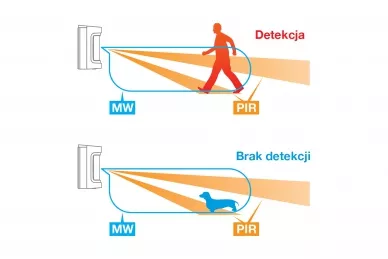

Triple Layer Detection Both the upper/lower passive infrared detection areas and Microwave detection area must be crossed to generate an alarm (include detection visuals). Each activation is independently analysed so that spurious events can be filtered and ignored. The tripled layered approach eliminates nuisance detection of smaller animals in the premises.
Key Features

• battery powered
• intelligent dual detector with a range of 12 m for difficult conditions
• insensitive to small animals
• easy configuration
• automatic walk test mode (starts after closing the cover. Shuts down after 3 minutes and enters normal mode)
• easy adjustment of the detection area
• built-in spirit level for easy detector installation
• solid and weatherproof housing (IP55)
• surface detachment tamper contact

SPECIFICATION:

• detection method: PIR + MW
• PIR wide range: length 12 m
• PIR wide range: angle 90 °
• mounting height: 0,8 - 1,2 m
• power supply: 3-9V DC
• consumption : 18 μA standby / 8 mA (max.) at 3V DC
• frequency: 10.525GHz
• antimasking
• alarm output: NC/NO, 10 V DC 0,01 A (maks.)
• tamper output: NC, 10 V DC 0,01 A (maks.)
• special function: PET imunita
• alarm indication LED
• operating temperature: -20 - 45 °C
• dimensions: 81.6x199.3x109.3mm
• weight 550 g

Included:

• 2 x screws (4x20mm)
• 3 x masking stickers
• power and alarm cable
• fault cable
• Velcro tape ("Velcro")
