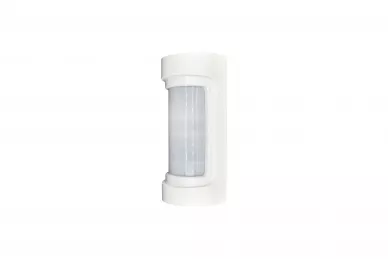

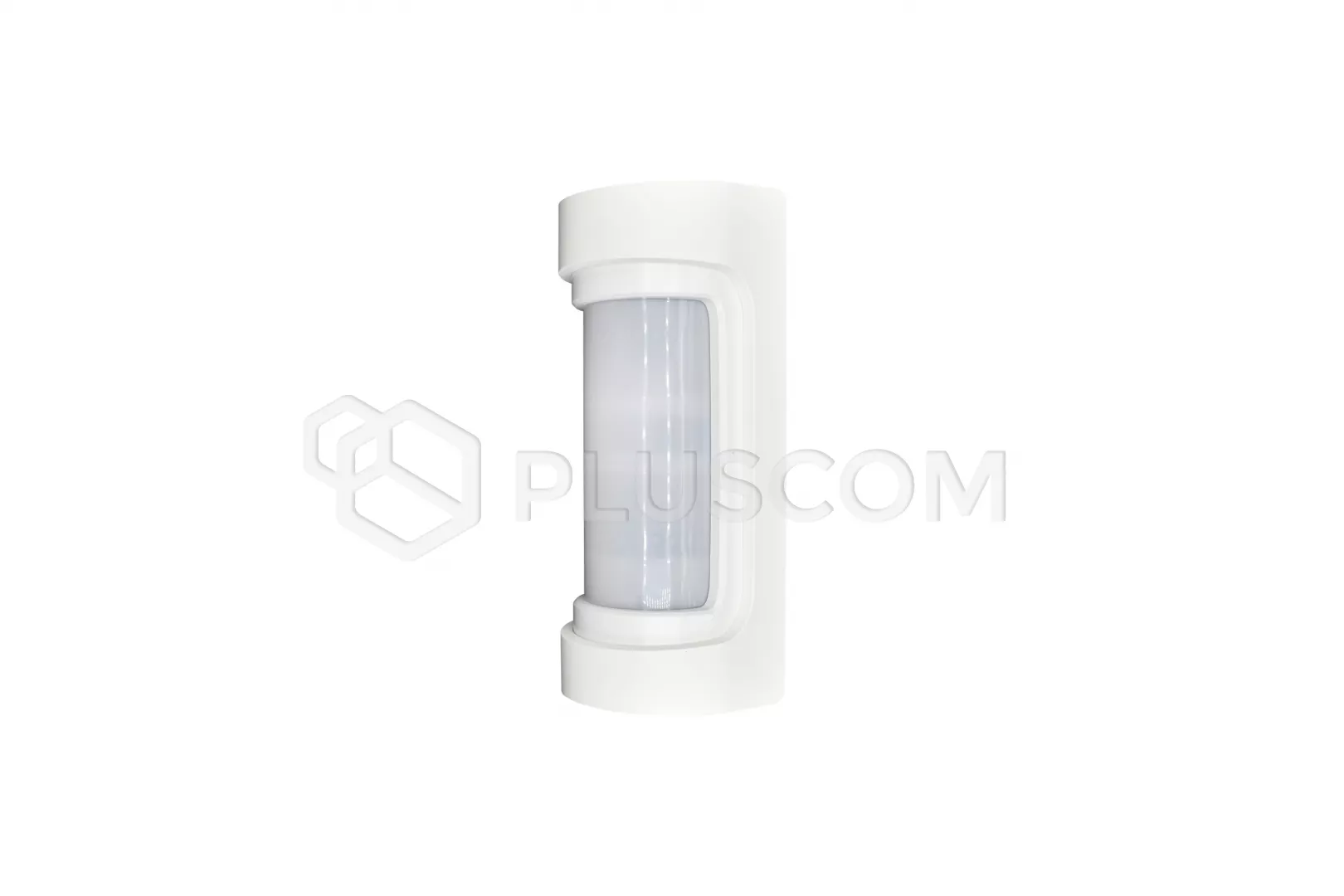

Optex VXS-RAM(W) battery-powered outdoor detector, white

OPTEX VXS-RAM(W) outdoor detector - white

VX Shield is a series of short range outdoor intrusion detection sensors providing reliability, convenience and security. TThe VXS-RAM(W) is a battery operated model featuring an active Infrared anti-masking, that detects covering, obstructing or spraying the lens surface and will notify the alarm panel or security system.

Intelligent analytics VXS model is equip with a digitally enhanced signal recognition logic called SMDA. By analyzing detection patterns and environmental information SMDA improves immunity against various noise factors such as climate changes and vegetation sways, and can distinguish between the cause of nuisance false alarms and genuine intrusions.

Key Features

• battery powered
• intelligent PIR detector with a range of 12 m, immune to animals
• easy configuration
• automatic walk test mode (starts after closing the cover. Shuts down after 3 minutes and enters normal mode)
• easy adjustment of the detection area
• built-in spirit level for easy detector installation
• solid and weatherproof housing (IP55)
• surface detachment tamper contact

SPECIFICATION:

• detection method: PIR
• PIR wide range: length 12 m
• PIR wide range: angle 90 °
• mounting height: 0,8 - 1,2 m
• power supply: 3-9 V DC
• consumption : 10 μA standby / 4 mA (max.) at 3V DC
• antimasking
• alarm output: NC/NO, 10 V DC 0,01 A (maks.)
• tamper output: NC, 10 V DC 0,01 A (maks.)
• special function: PET imunita
• alarm indication LED
• colour: white
• operating temperature: -20 - 60 °C
• dimensions: 81.6x199.3x109.3mm
• weight 500 g

Included:

• 2 x screws (4x20mm)
• 3 x masking stickers
• power and alarm cable
• fault cable
• Velcro tape ("Velcro")
