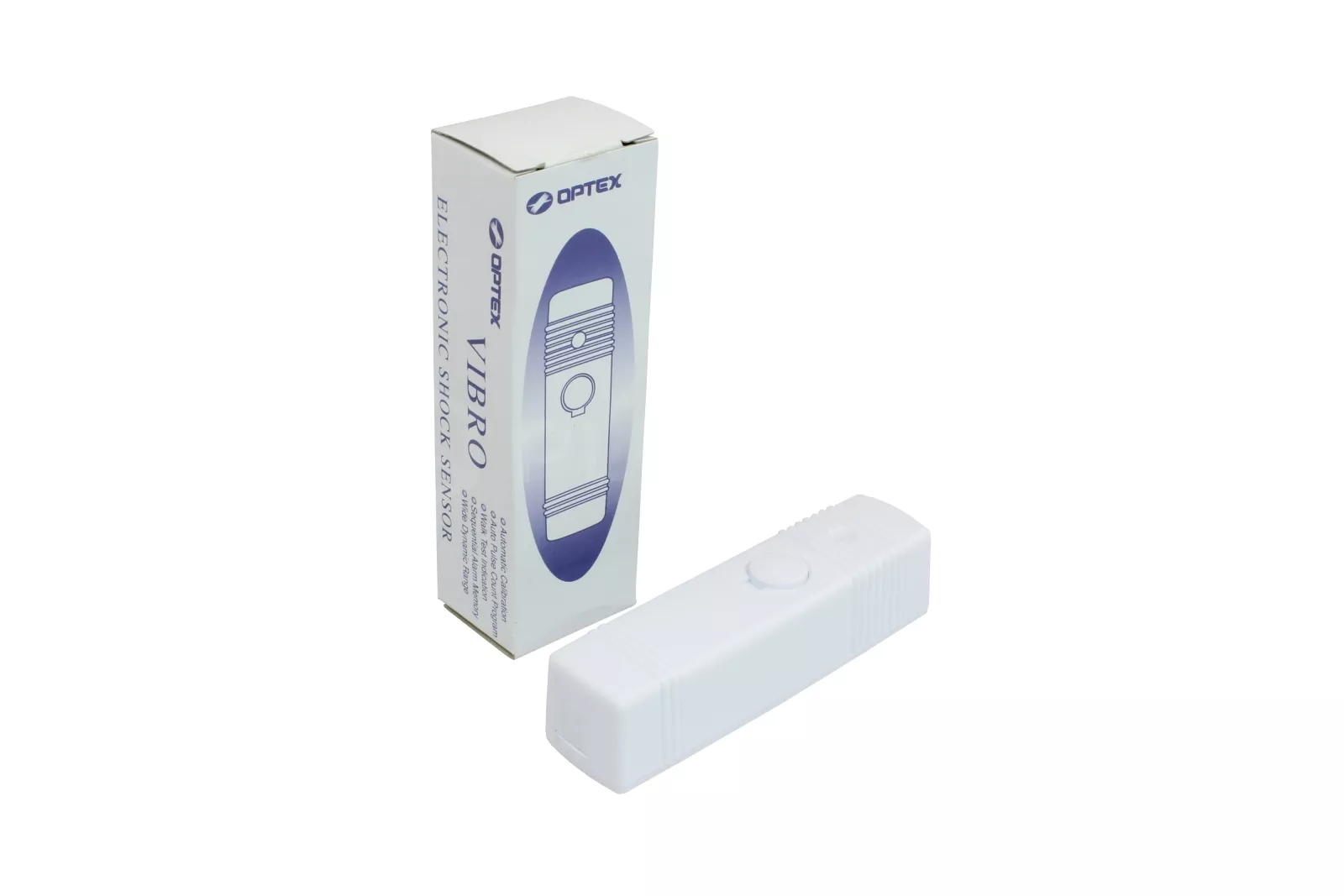

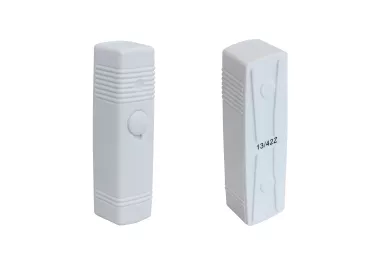

Optex VIBRO-WH Shock sensor

OPTEX Vibro vibration detector detects the vibration of the surface. This detection method complements the possibility of an intruder is detected using magnetic sensors to open or PIR motion detection. This allows you to confirm an alarm by an additional sensor or detect an intruder when he accedes to the destruction of property from the outside.

The detector detects any impact, shock and other vibrations.

Designed for indoor use, it can be mounted on different surfaces.
Examples of detection ranges of the detector depending on the substrate on which it was installed:

• CONCRETE - 1,5m
• BRICK WALL- 2,5m
• BREEZEBLOCK - 1,5m
• STEEL - 3m
• UPVC - 2.25m
• WOOD - 3,5m


The detector allows you to set two sensitivity modes HIGH / LOW.
This allows installation under different environmental conditions, eg. Near the road, big factories - low sensitivity. High sensitivity check in peaceful locations or in the protection of large surfaces.

The sensor has a unique feature of "learn mode" that allows the detector to "learn" the level and number of beats in a specific installation site that have trigger an alarm.

Violent attack function allows you to trigger an alarm after a single impact is ignored then counting the pulses.

With the protection of large-area detector can work in a group of:

• 128 pieces to one line in the mode of action of the Spotless Mind
• 16 pieces on one line in operation from the first memory or sequence
