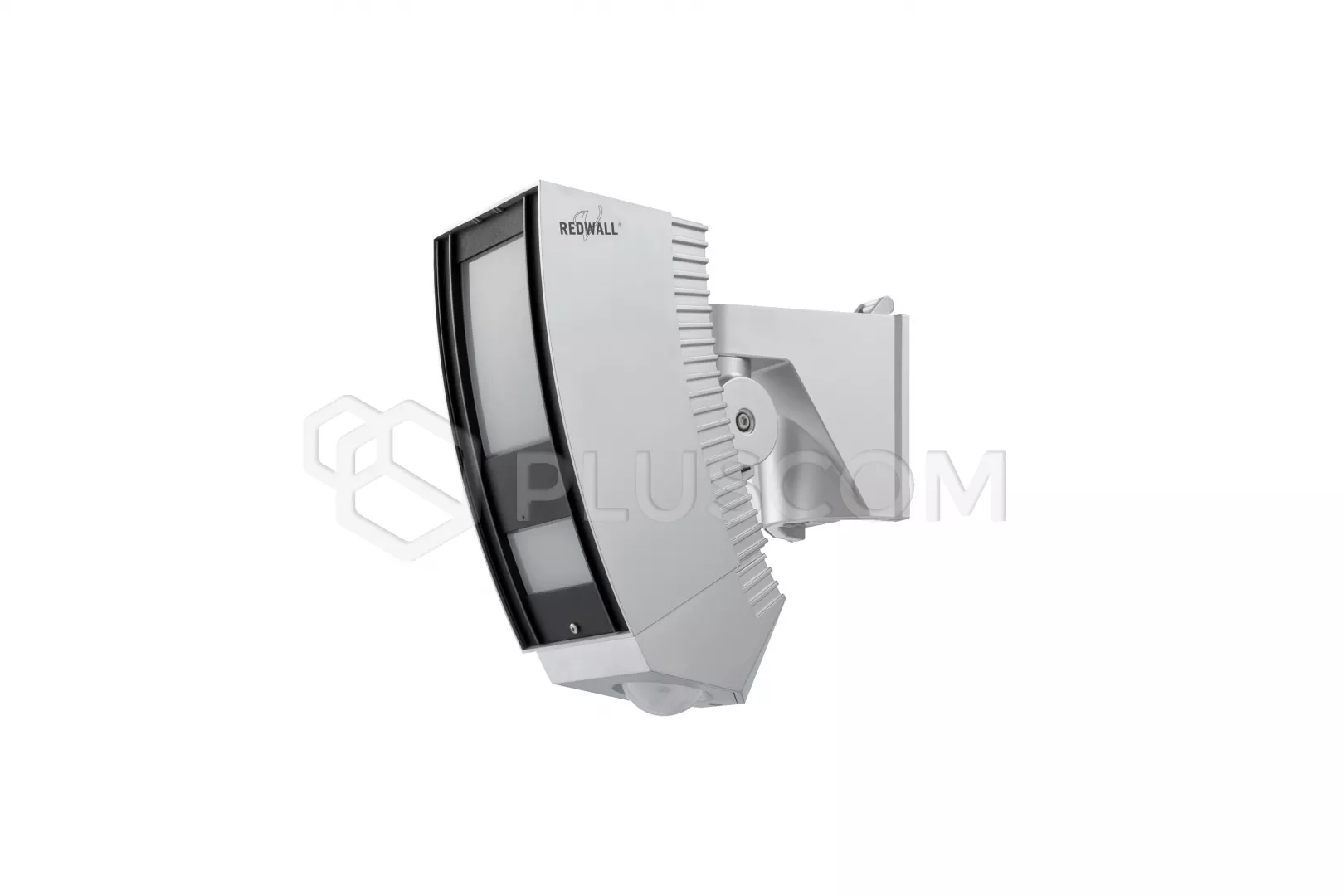

OPTEX SIP-5030 Redwall-V external PIR detector
he SIP-5030 offers wide angle-detection for large areas outside. It has an
intelligent detection system that uses data from the ambient environment, such
as temperature and illuminance conditions, to automatically adjust the
sensitivity.
In addition, the SIP-5030 has another PIR detector on the bottom of the unit to
cover the creep zone. The PIR detector on the bottom has an independent output
that is separate from the main output. The main output can trigger the CCTV
system, and the output from creep zone detection can be used for protection of

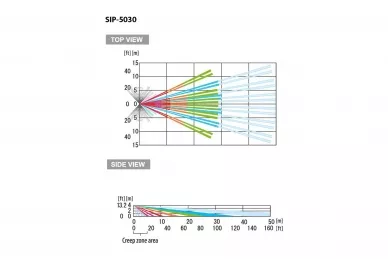

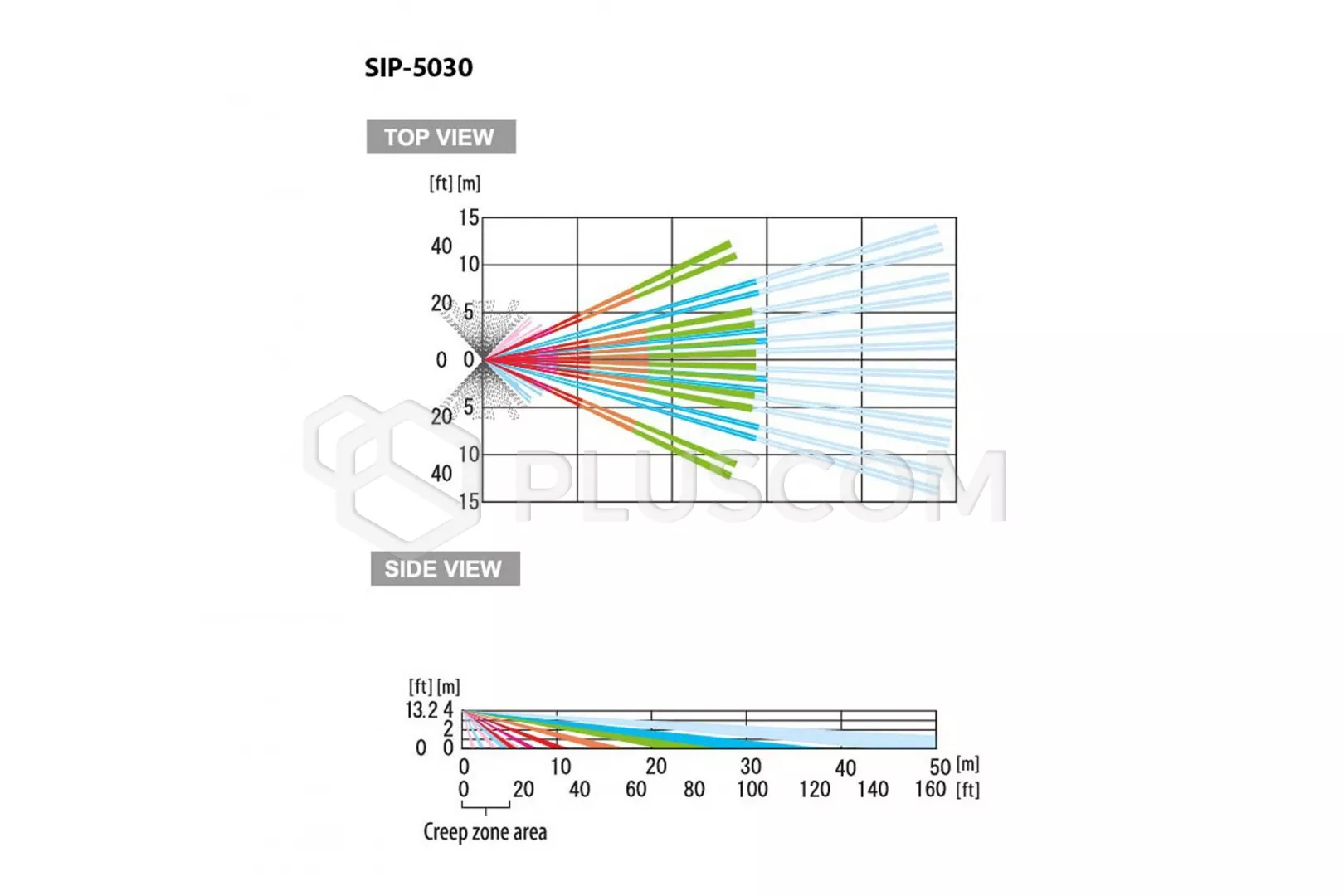

the unit. The detection angle in the SIP-5030 can be adjusted to easily match
the camera field of view. And, the creep zone detector can be used for
detection below and around the unit.
The SIP-5030 is also equipped with anti rotation and a anti-masking function,
which can detect vandalism or tampering with the unit.
The REDWALL SIP series is designed to be connected to PTZ or fixed cameras and
trigger the CCTV system when an intrusion occurs. The SIP-3020 has two
independent detection zones, far and near zones, with independent sensitivity
selection, that can trigger camera pre-set and provide the best view of the
scene to local security staff or remote monitoring stations.
REDWALL SIP PIRs are designed to be used in harsh outdoor environment, their
sensitivity are adjusted automatically to the ambient temperature and
illuminance, they feature an IP65 rating for the main unit. The SIP series is
vandal-resistant, all SIP products are built with polycarbonate housing,
featuring an accelerometer to detect whether or not the sensor position has
been tampered with.
Key Features
- Double Dual/one Quad pyro-elements with patented Double Conductive
Shielding
- Advanced detection algorithm
- Reinforced polycarbonate housing
- Equipped with anti rotation & anti-masking functions to prevent
vandalism
