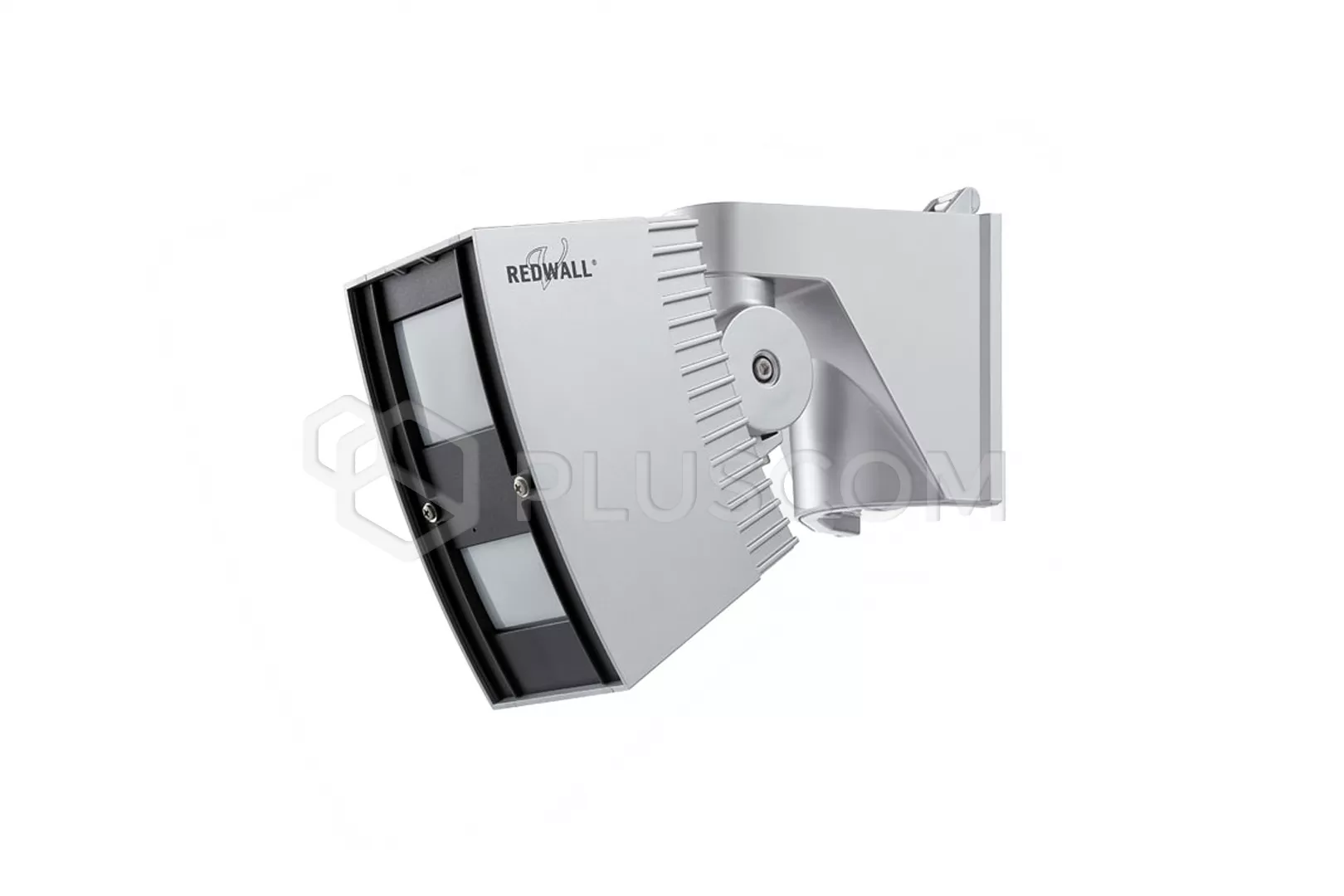

Optex SIP-404WF Redwall-V Low Current Synthesized Intelligent PIR

OPTEX SIP-404WF Redwall-V Low Current Synthesized Intelligent PIR

The SIP-404WF are designed for use where a reliable low current detector is required. They have an intelligent detection system that monitors the temperature and illuminance of the environment and automatically adjusts the sensitivity. The detectors are also equipped with anti-rotation, anti-masking functions in addition to the anti-tamper feature which provides further security. The superior power management circuit achieves low current consumption without compromising the rich functionality.

Features

• Range: 40x4m
• Low power consumption (3-9 VDC, 40 A (standby) 5 mA max.)
• Low battery signal
• Intelligent PIR Detection System
• • Detection of ambient temperature and illuminance for automatic sensitivity management
  • Advanced detection algorithm
  • Three dual pyro-elements with patented Double Conductive Shielding
• Anti-vandalism functions
• • Anti-rotation function with accelerometer
  • Anti-masking function with photo-beam
  • Reinforced polycarbonate housing
  • Max.4 m (13 ft.) installation height
• Independent sensitivity selector for near/far areas
• Detection logic selector
• Detection range selector
• Independent N.C. and N.O. ALARM output
• Adjustable alarm interval time
