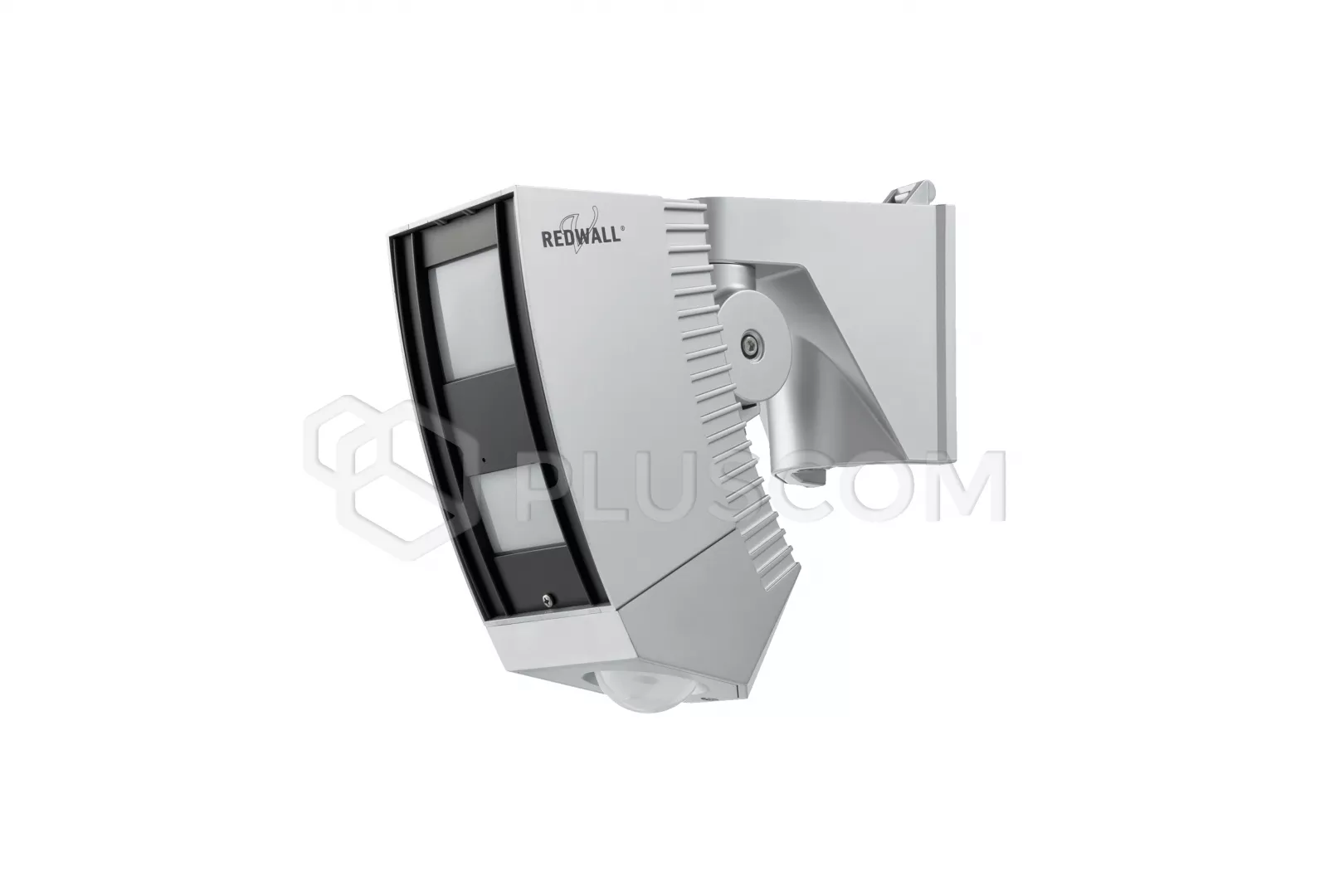

Optex SIP-4010/5 Redwall-V external PIR detector

OPTEX SIP-4010/5 Redwall-V external PIR detector

The REDWALL SIP is a series of long range volumetric outdoor PIRs designed to work in conjunction with CCTV systems and trigger camera position to the zone of intrusion. Very stable in outdoor environment the Redwall SIP sensors have a very low false alarm rate and are instrumental for make event-triggered security systems stable. The SIP-4010/5 is a hardwired model providing a detection range of 40m by 10m (LxW) with an additional creep zone detection area of 6x9m wide ideal to cover long and relatively wide sites areas.

The REDWALL SIP series is designed to be connected to PTZ or fixed dome cameras and trigger the CCTV system when an intrusion occurs. The SIP-4010/5 has three independent detection zones -far, near and creep zones, with independent sensitivity selection, that can trigger the right camera pre-sets and provide the best view of the scene to local security staff or remote monitoring stations.

The SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity are adjusted automatically to the ambient temperature and illuminance and they have a IP65 rating for the main unit. They also vandal-resistant featuring a polycarbonate housing, an accelerometer to detect if the sensor position has been tampered with and an active infrared antimasking.

Key Features

• 40x10m intelligent PIR for approach detection
• Designed to trigger CCTV systems/li>
• Three independent detection zones far/near/creep/li>
• Active infrared antimasking and vandal-resistant/li>
