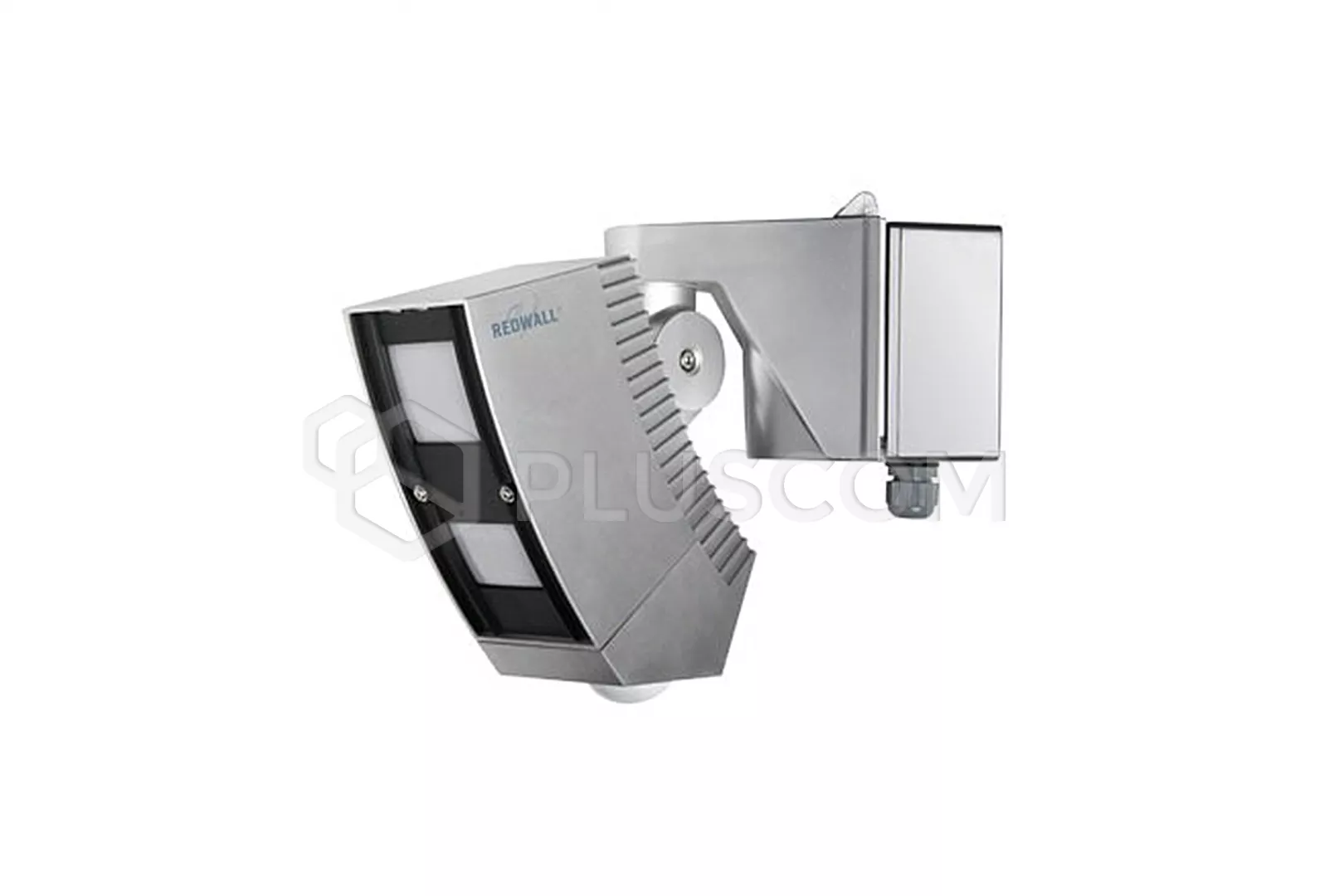

OPTEX SIP-4010/5-IP-BOX external PIR IP detector
The REDWALL SIP-IP-BOX is a series of long range IP/PoE volumetric outdoor PIRs
designed to work in conjunction with a large number of Video Management
Software (VMS) platforms, some specific IP camera manufacturers and PSIM
providers. The alarm event generated by the IP sensors will trigger a response
from the syscurity system. Very stable in outdoor environment the Redwall SIP
sensors have a very low false alarm rate and are instrumental for make
event-triggered security systems stable. The SIP-4010/5-IP-BOX is a IP/PoE
model providing a detection range of 40x10m (LxW) ideal to protect long and
narrow areas such as along fence lines or buildings and alleyways. This series
features additional PIR detectors with an independent alarm output at the
bottom of the unit to cover the creep zone (max 6x9m area).
Enhancing IP CCTV systems
Event-triggered CCTV systems need to rely on accurate and genuine detection.
Although most IP cameras provide video motion detection, using this detection
method alone can prove challenging in outdoor environment where the constant
changes of lighting and weather conditions can create false alarms.
Enhancing IP CCTV systems
Event-triggered CCTV systems need to rely on accurate and genuine detection.
Although most IP cameras provide video motion detection, using this detection
method alone can prove challenging in outdoor environment where there are
constant changes in lighting and weather conditions, and as a result these
conditions can create potential false alarms. The SIP-4010-IP-BOX will detect
motion whatever the lighting/weather conditions and will track the intruder
across its two independent detection zones - far and near zones- and trigger
the relevant camera presets to visually follow the intruder.
Weather and vandal-resistant
The SIP PIRs are designed to be used in harsh outdoor environment, their
sensitivity are adjusted automatically to the ambient temperature and
illuminance and they have a IP65 rating for the main unit. They also
vandal-resistant featuring a polycarbonate housing, an accelerometer to detect
if the sensor position has been tampered with and an active infrared
antimasking.
VMS integration
The REDWALL SIP-IP-BOX series generates its unique alarm event code (REC) which
communicates a number of events including detection, tamper and environmental
status to the IP cameras, DVR and VMS platforms that have integrated the code.
The list of VMS plaforms that have already integrated our event code includes
all the key palyers and is constantly growing.
Key Features
- 40x10m IP/PoE intelligent PIR
- Integrated with most VMS platforms
- Three independent detection zones far/near/creep
- Active infrared antimasking and vandal-resistant
