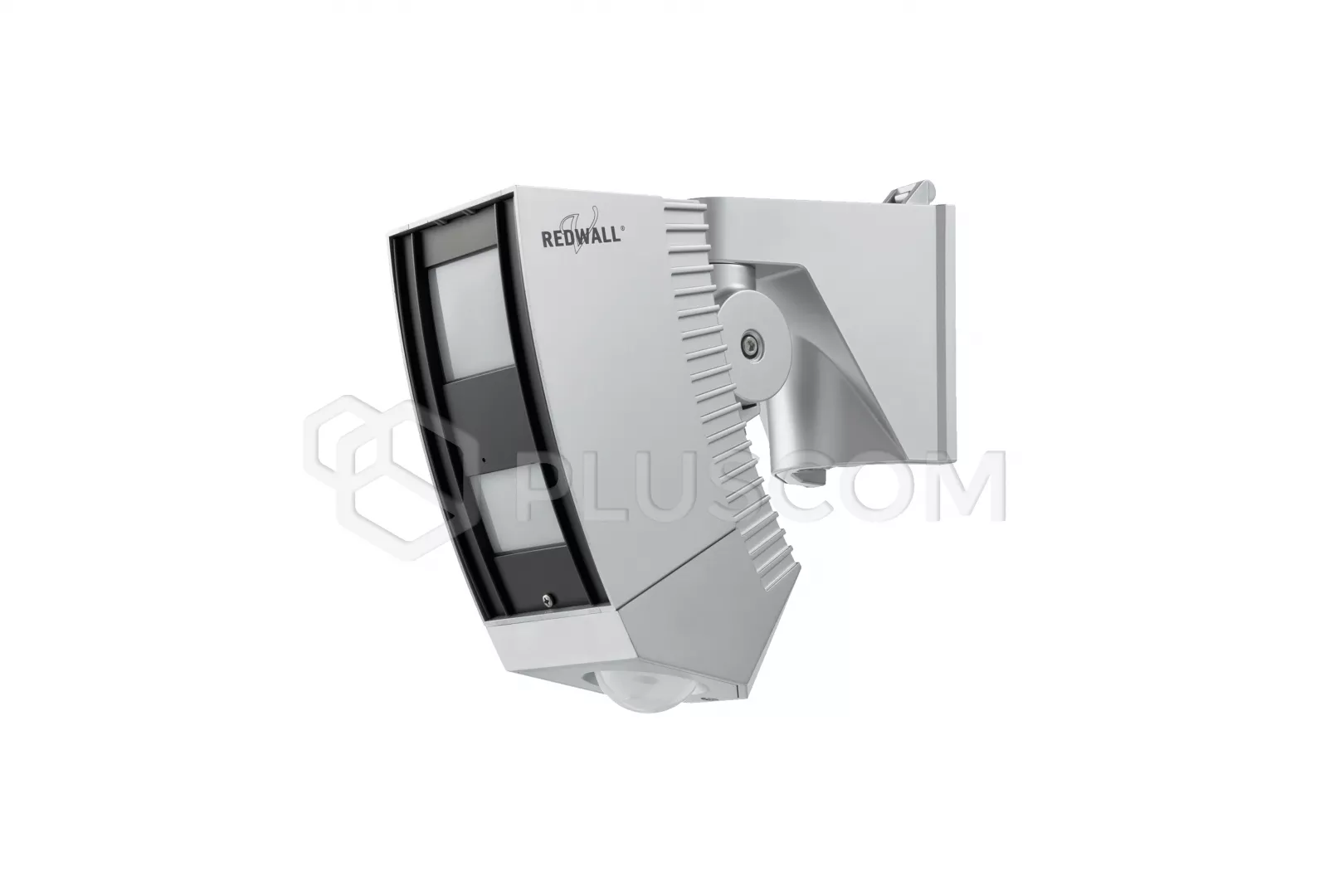

OPTEX SIP-3020/5 Redwall-V external PIR detector
The SIP-3020/5 is designed for detection outdoor applications to trigger video
transmission systems and PTZ camera control. Detectors in this series have an
intelligent detection system which uses data from the ambient environment, such
as temperature and illuminance conditions, to automatically adjust the
sensitivity. They are also equipped with anti-rotation and anti-masking
functions, which can detect vandalism or tampering with the unit. The
SIP-3020/5 is a hardwired model providing a detection range of 30m length by
20m wide with an additional creep zone detection (up to 6x9m), ideal to cover
car parks, yards and other wide areas.
Units in this series have an additional PIR detector on the bottom to cover the
area just below the unit. The PIR detector on the bottom has independent output
separate from the main detection.
The REDWALL SIP series is designed to be connected to PTZ or fixed cameras and
trigger the CCTV system when an intrusion occurs. The SIP-3020 has two
independent detection zones, far and near zones, with independent sensitivity
selection, that can trigger camera pre-set and provide the best view of the
scene to local security staff or remote monitoring stations.
REDWALL SIP PIRs are designed to be used in harsh outdoor environment, their
sensitivity are adjusted automatically to the ambient temperature and
illuminance, they feature an IP65 rating for the main unit. The SIP series is
vandal-resistant, all SIP products are built with polycarbonate housing,
featuring an accelerometer to detect whether or not the sensor position has
been tampered with.
Key Features
- Advanced detection algorithm
- Three dual pyro-elements with patented Double Conductive Shielding
- Designed to trigger CCTV systems
- Active infrared antimasking and vandal-resistant
