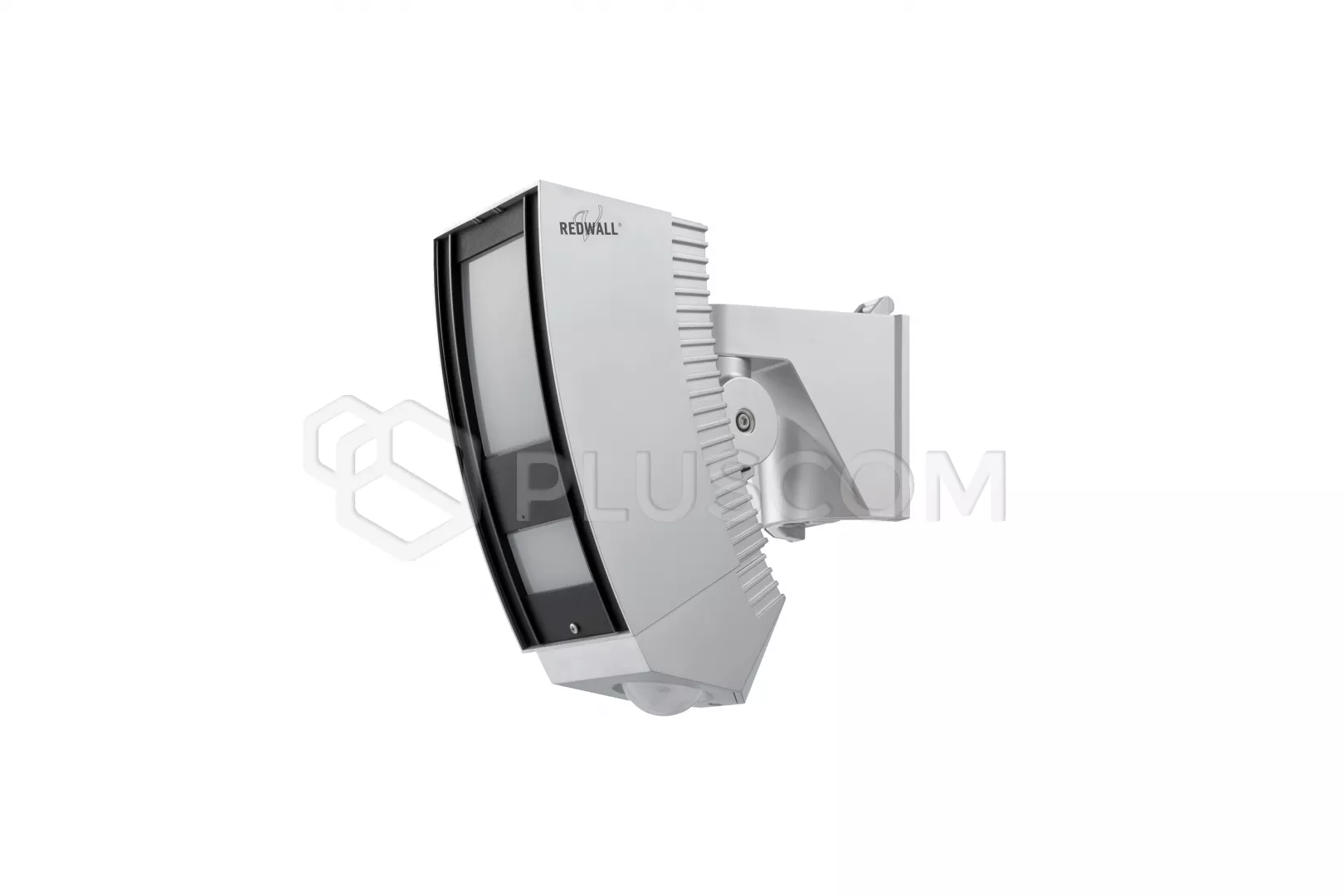

OPTEX SIP-100 Redwall-V external PIR detector

The REDWALL SIP is a series of long range outdoor PIR detector designed to work in conjunction with CCTV systems to provide a reliable commercial security solution. Very stable in outdoor environment the REDWALL SIP motion sensors combine a high catch rate with a minimum false alarm rate, ideal for event-triggered intrusion detection systems. The SIP-100 is a hardwired model providing a detection range of 100x3m (LxW) ideal to protect long and narrow areas such as along fence lines or buildings and alleyways. The SIP-100 features 3 total outputs: two separate outputs for far and near areas and another for creep-zone detection.

The REDWALL SIP series is designed to be connected to PTZ or fixed cameras and trigger the CCTV system when an intrusion occurs. The SIP-100 has two independent detection zones, far and near zones, with independent sensitivity selection, that can trigger camera pre-set and provide the best view of the scene to local security staff or remote monitoring stations.

REDWALL SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity are adjusted automatically to the ambient temperature and illuminance, they feature an IP65 rating for the main unit. The SIP series is vandal-resistant, all SIP products are built with polycarbonate housing, featuring an accelerometer to detect whether or not the sensor position has been tampered with.

Key Features

• Double Quad pyro-elements with patented Double Conductive Shielding
• Advanced detection algorithm
• Reinforced polycarbonate housing
• Equipped with anti rotation & anti-masking functions to prevent vandalism
