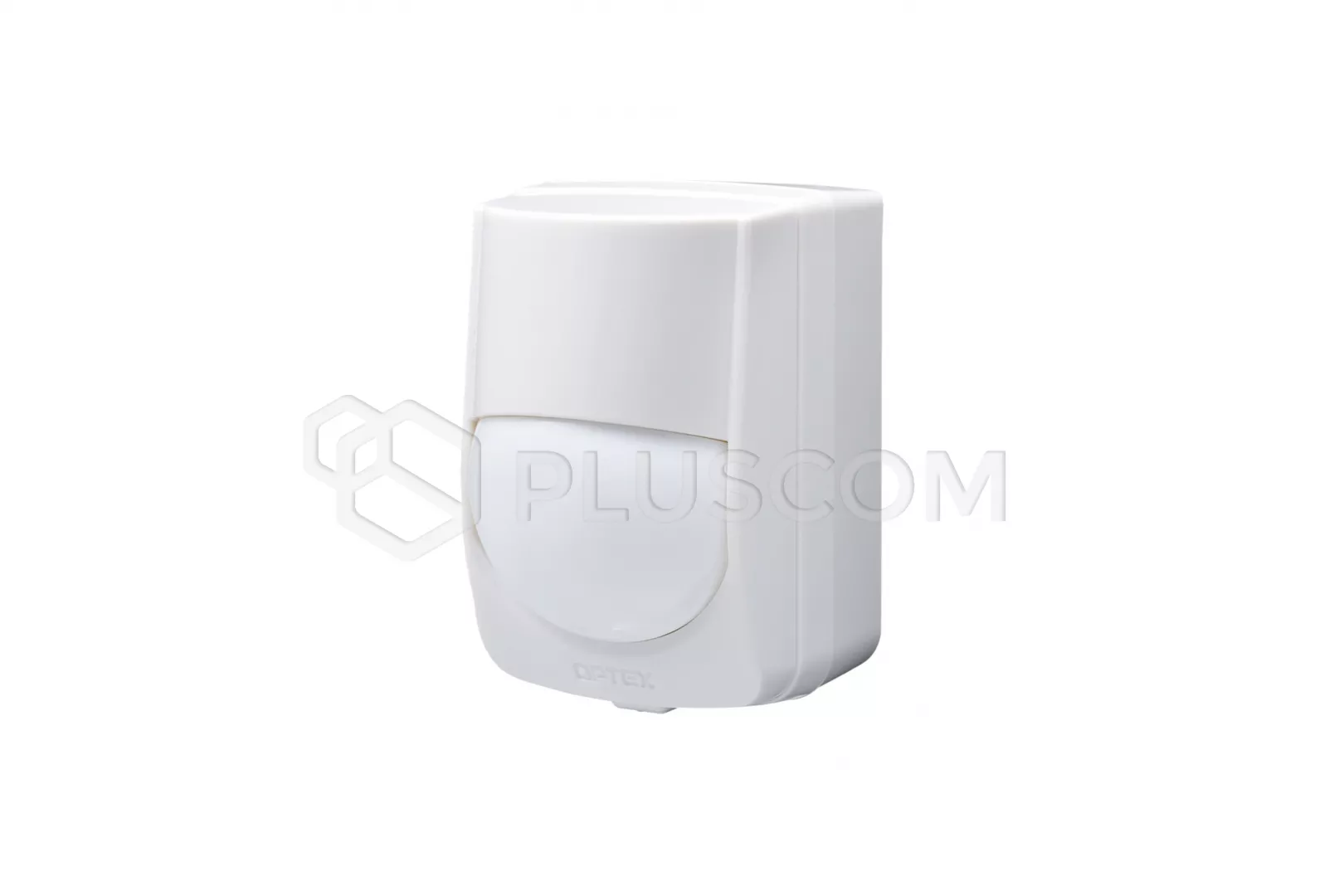

Optex RXC-RST Indoor presence and movement detector

OPTEX RXC-RST Indoor presence and movement detector

The RXC-RST digital motion detector is perfect for residential houses, homes, commercial and industrial buildings. Designed to be used with wireless transmitters. It is characterized by large resistance to false alarms and animals. Using logic advanced temperature compensation the detector automatically increases its sensitivity in a hot environment, especially if the background temperature is close to the human body temperature of 35-37 ° C. The RXC-RST provides accurate performance in higher temperatures.

The device has 78 detection zones that cover the entire working area, a verification of the alarm state is based on signals from four zones (QUAD). All zones use DSP logic.

KEY FEATURES

• leakproof casing resistant to insects
• adjust detection sensitivity
• pet immunity
• tamper protection against housing opening
• "Digital Quad Zone" digital optical quad technology
• intelligent digital micro-processor
• advanced temperature compensation
• immunity to EMI and RFI interference
• replaceable lens

SPECIFICATION

• detection range: 12x12m
• detection angle: 78 detection zones
• Grade 2
• mounting height: 1.5 - 2.4m
• signaling LED: switching ON / OFF
• alarm duration: ok. 2.5
• alarm output: 0.01A maks.
• time to prepare for work: ok. 60 s
• power: 3-3.6V CR123A
• power consumption
• • 6μA (normal)
  • 3mA (in walktest, LED on)
• dimensions: 97.2x65.2x78.5mm
• time: 145g
• working temperature: -10°C~50°C
