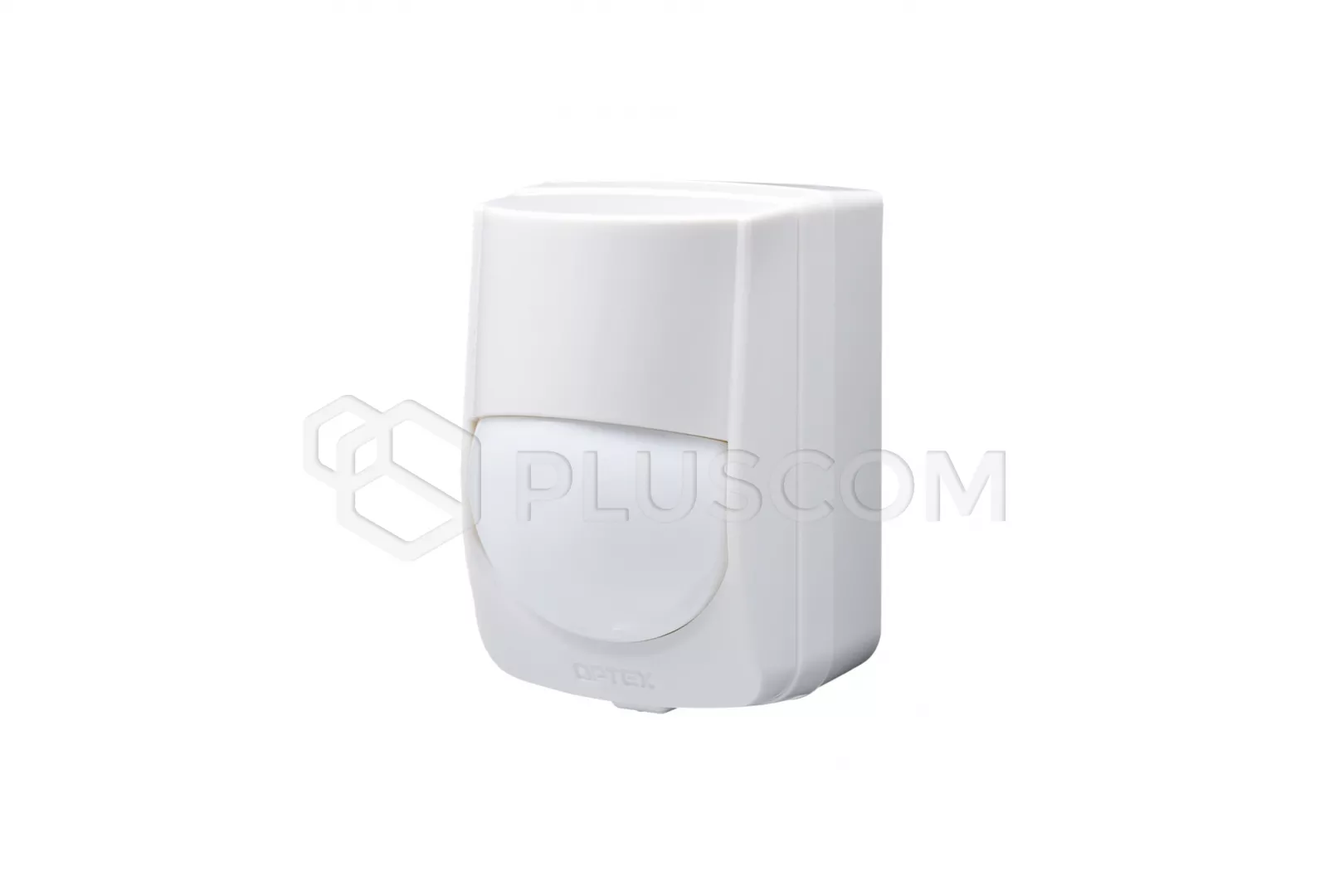

Optex RXC-RDT-X5 Digital Quad Zone Logic PIR Detector

OPTEX RXC-RDT-X5 Digital Quad Zone Logic PIR Detector

Combined PIR (passive infrared) and Microwave technology provides added flexibility and performance to the RX-Core series. The RXC-DT incorporates the RXC-ST platform with advanced new Microwave to create a solution for the more challenging environment.

The RXC-DT can provide an advantage in both a commercial and residential environment where the potential for extreme momentary air flow or sudden temperature changes are likely. In some countries legislation is a crucial driver for the use of combined PIR/MW sensor and overrides technical requirements.

Key Features

• leakproof casing resistant to insects
• adjust detection sensitivity
• pet immunity
• tamper protection against housing opening
• "Digital Quad Zone" digital optical quad technology
• advanced Microwave technology for more accurate detection
• advanced temperature compensation
• replaceable lens

SPECIFICATION

• detection range: 12x12m
• detection angle: 78 detection zones
• Grade 2
• mounting height: 1.5 - 2.4m
• signaling LED: switching ON / OFF
• alarm duration: ok. 2.5
• alarm output: NC 0.1A max.
• time to prepare for work: ok. 60 s
• power: 3-3.6V
• power consumption
• • 14μA (normal)
  • 3mA (LED on)
• frequency: 10.525 GHz
• dimensions: 97.2 x 65.2 x 78.5 mm
• time: 160g
• working temperature: -10°C~45°C
