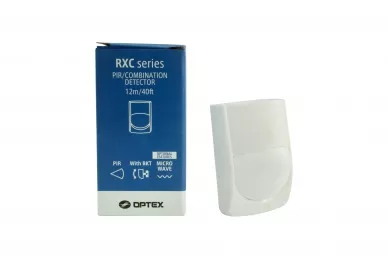

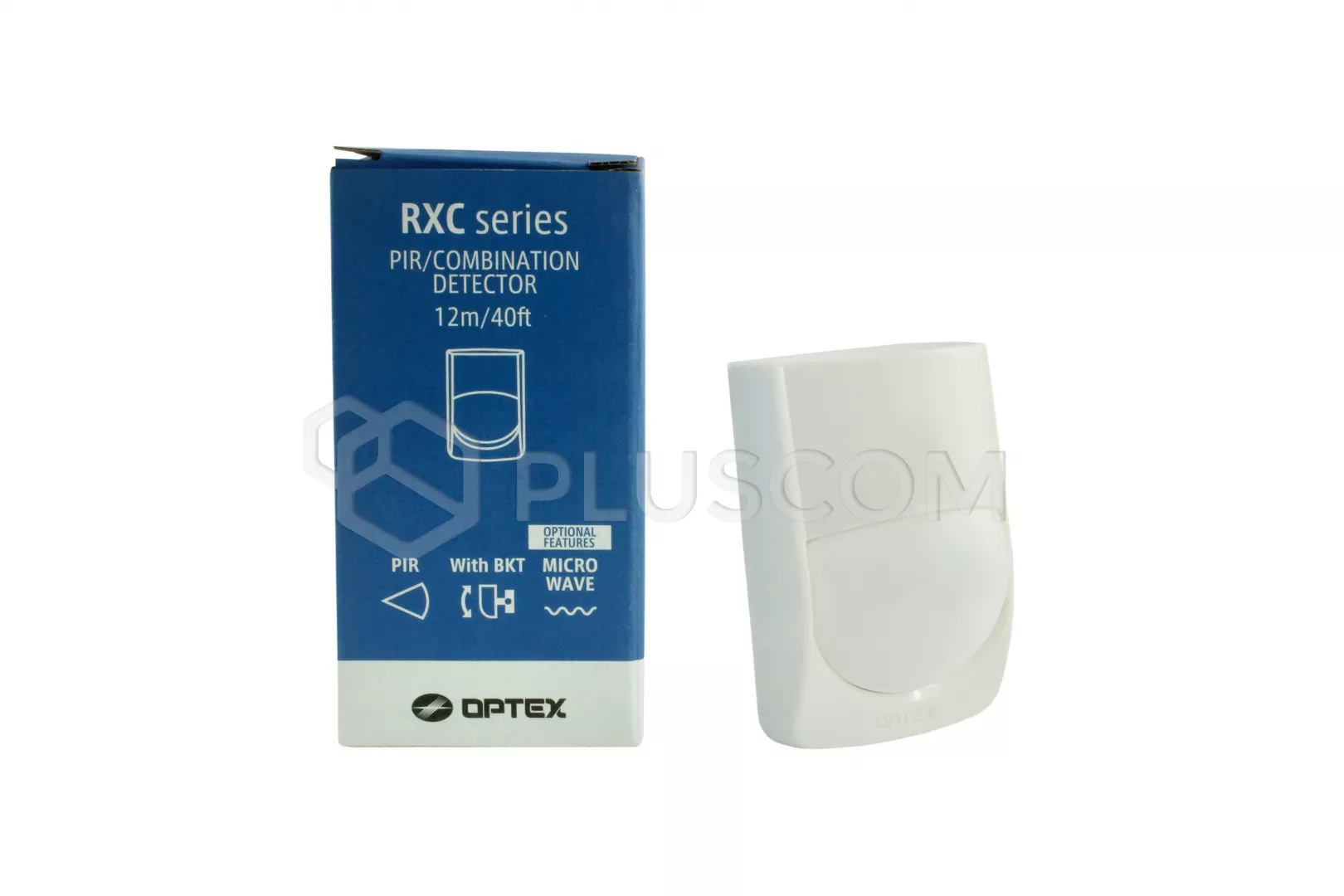

Optex RXC-DT-X5 Volumetric Digital Quad Zone Logic

Product code: #14316
Manufacturer: Optex
  • PIR and MW detector, range 12m
  • Digital Quad Zone Logic
  • 78 detection zones
  • Mounting bracket included
  • Animal resistant

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

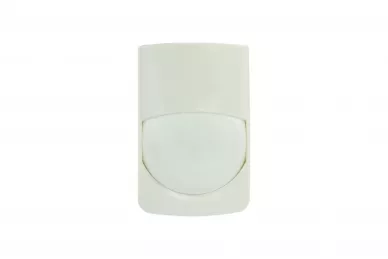

OPTEX RXC-DT-X5 Volumetric Digital Quad Zone Logic


Combined PIR (passive infrared) and Microwave technology provides added flexibility and performance to the RX-Core series. The RXC-DT incorporates the RXC-ST platform with advanced new Microwave to create a solution for the more challenging environment.

The RXC-DT can provide an advantage in both a commercial and residential environment where the potential for extreme momentary air flow or sudden temperature changes are likely. In some countries legislation is a crucial driver for the use of combined PIR/MW sensor and overrides technical requirements.

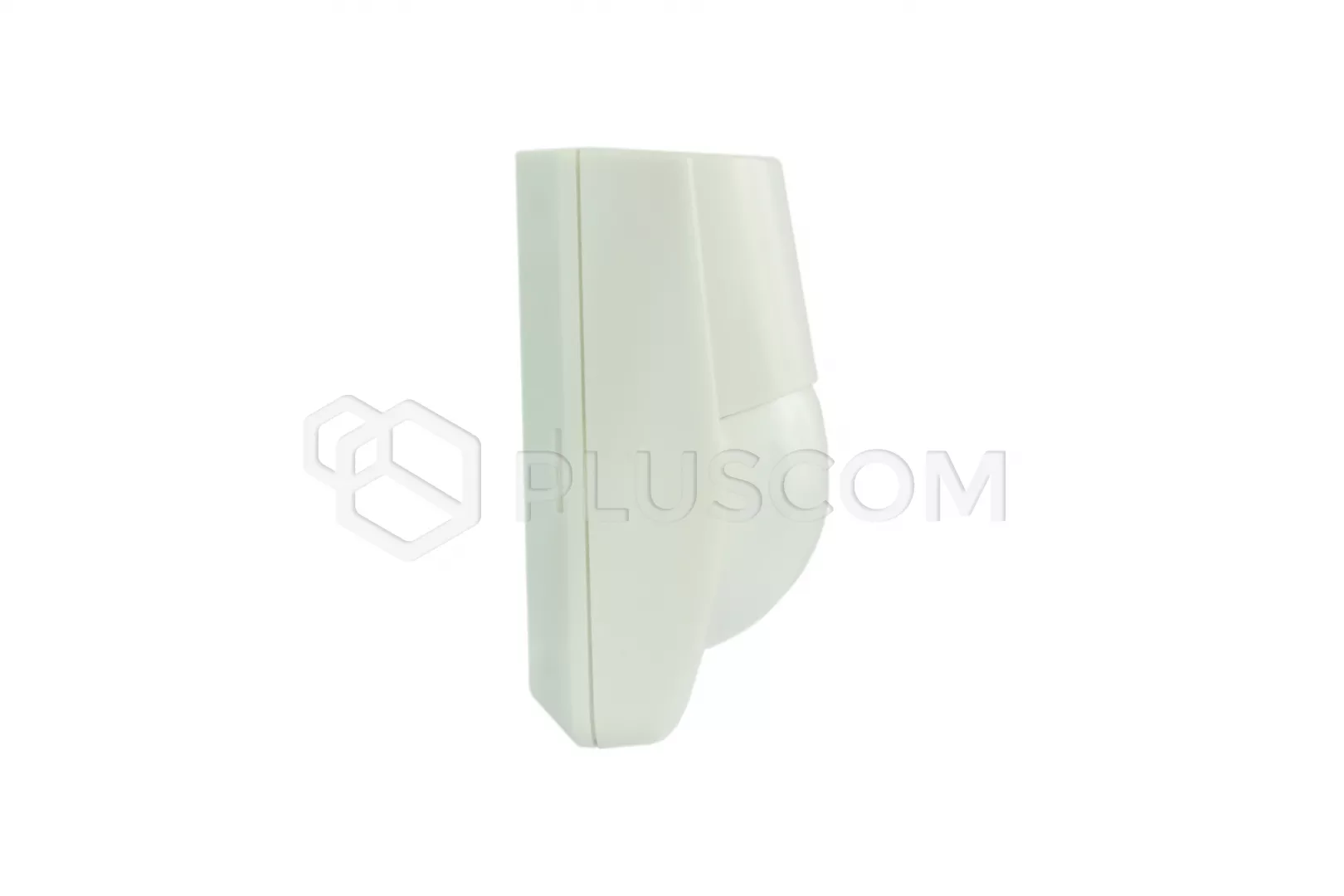

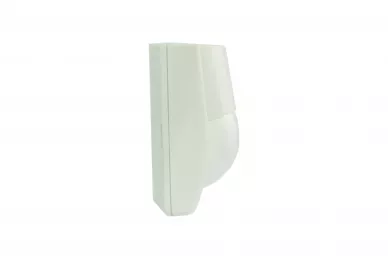

OPTEX RXC-DT-X5 Volumetric Digital Quad Zone Logic

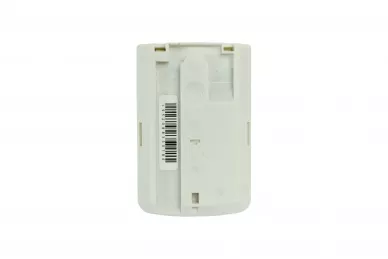

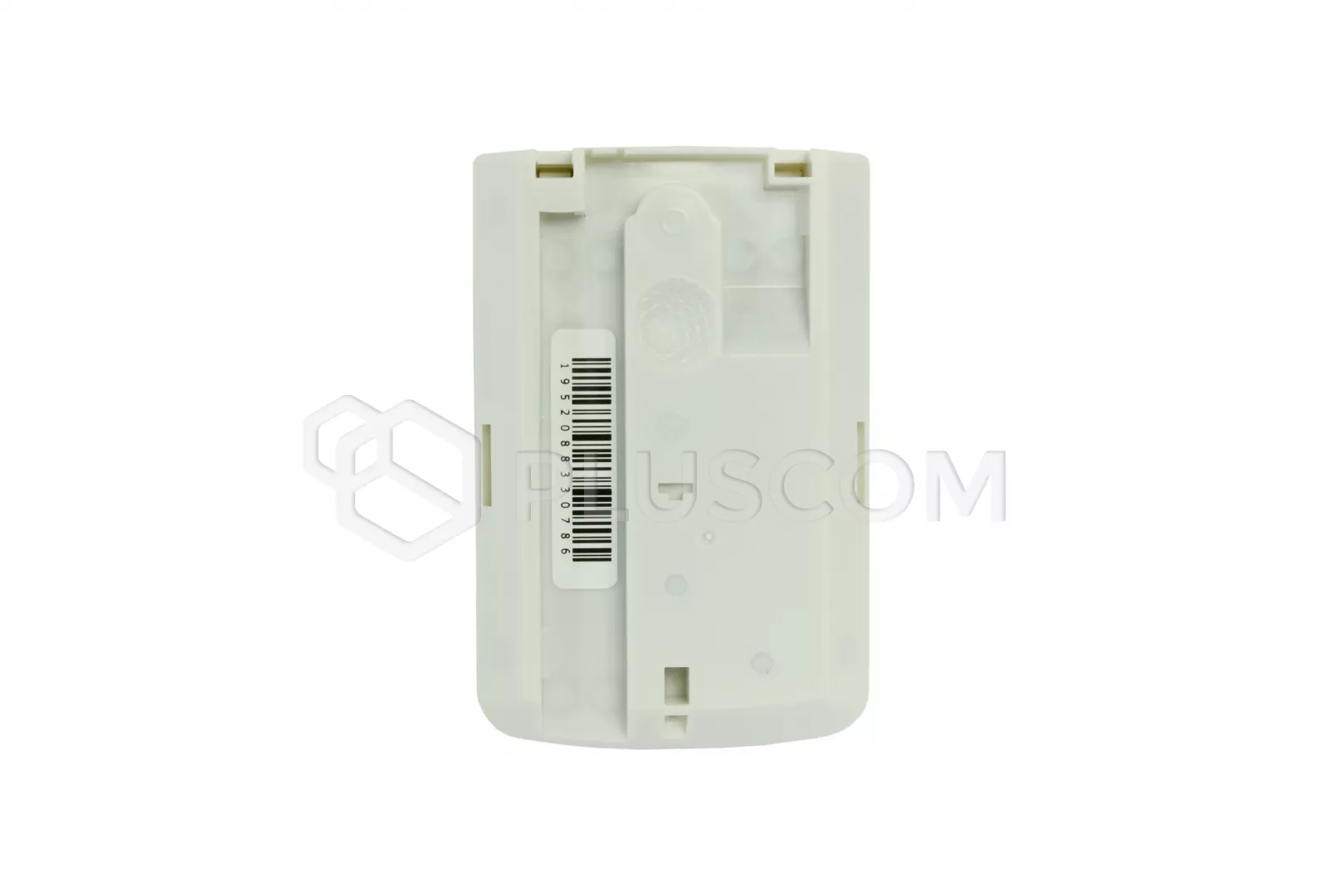

OPTEX RXC-DT-X5 Volumetric Digital Quad Zone Logic

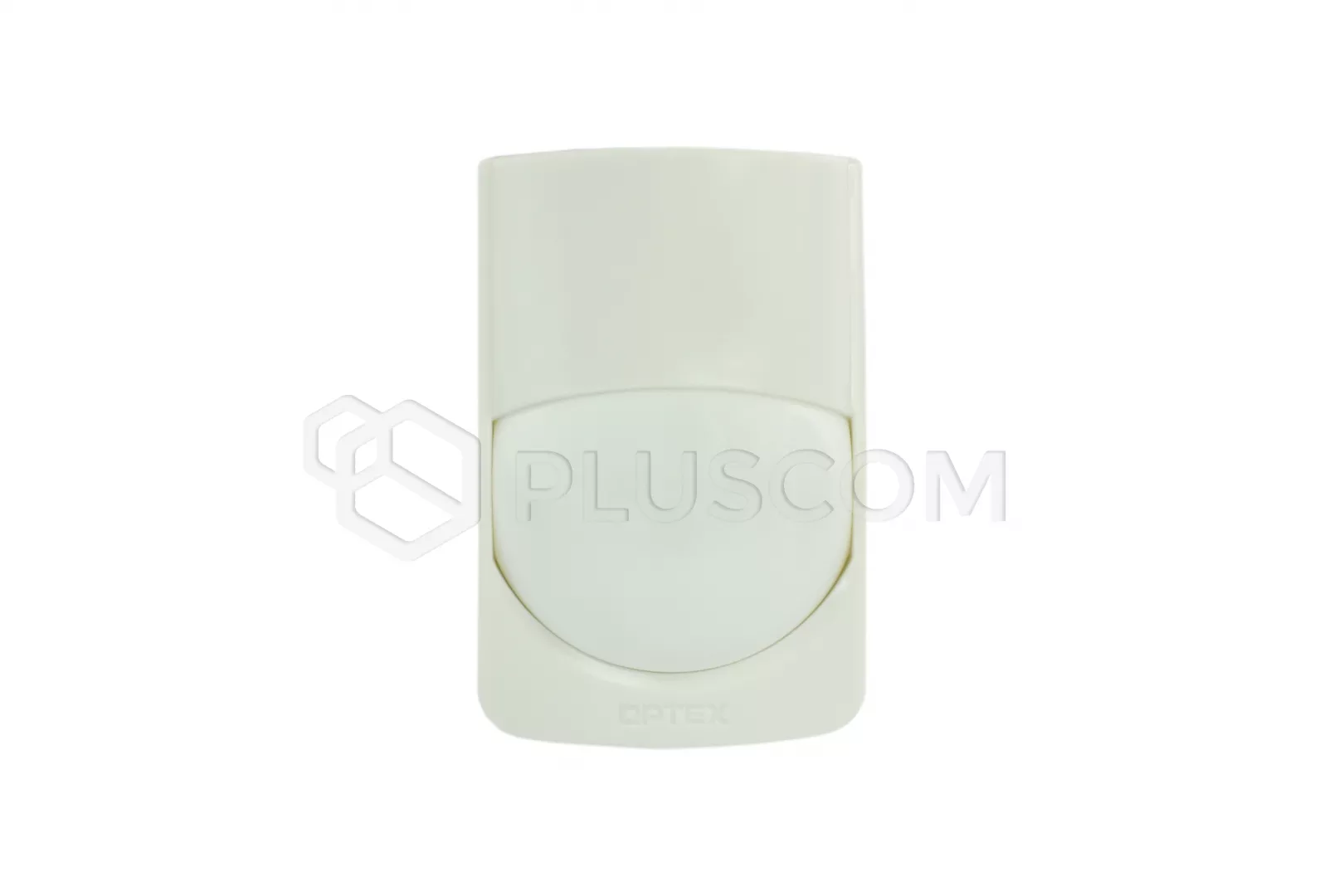

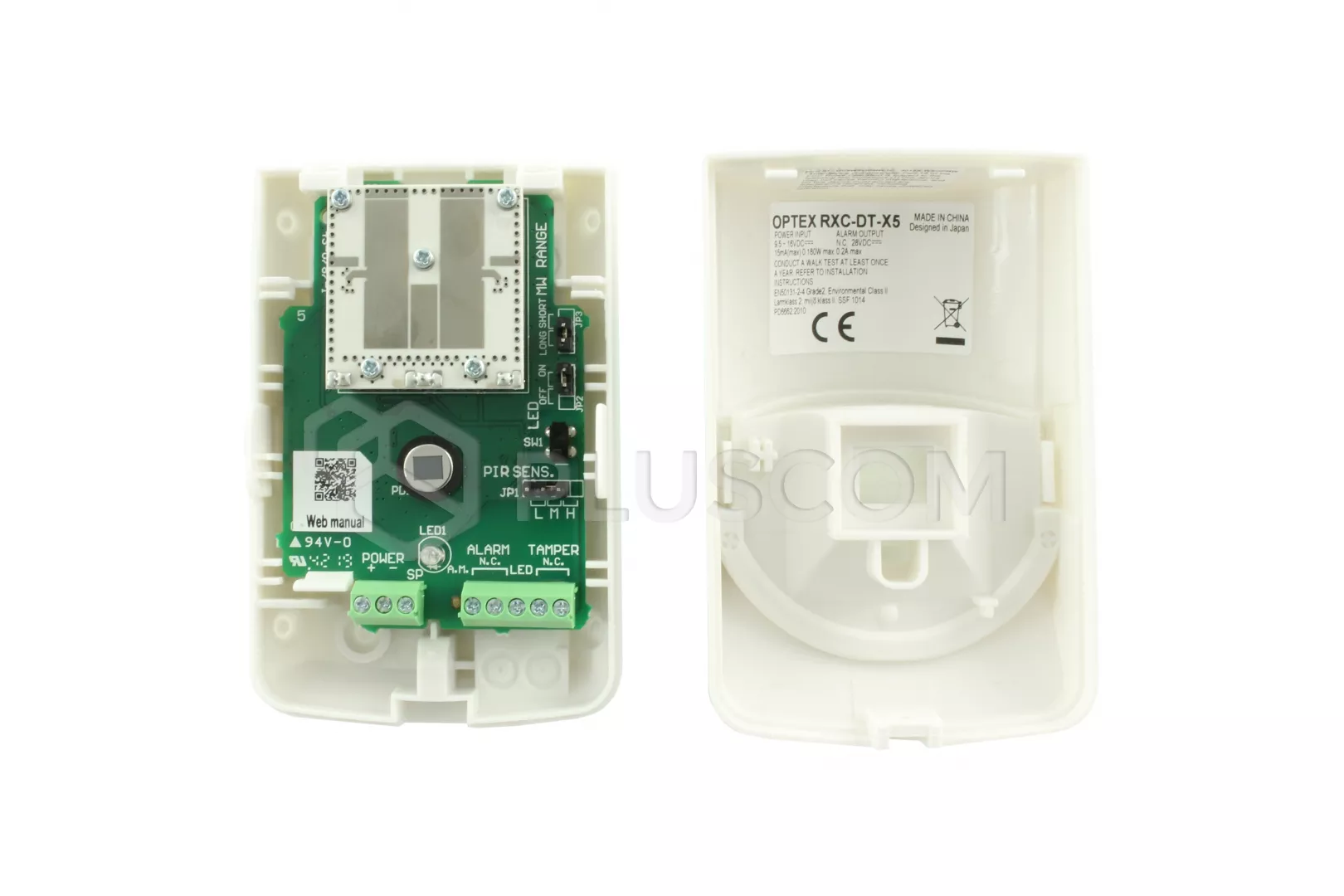

OPTEX RXC-DT-X5 Volumetric Digital Quad Zone Logic

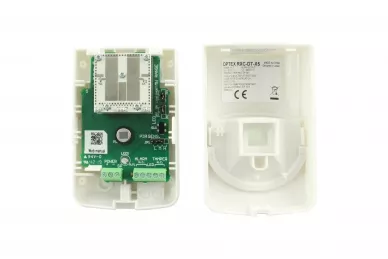

OPTEX RXC-DT-X5 Volumetric Digital Quad Zone Logic


Key Features
  • leakproof casing resistant to insects
  • adjust detection sensitivity
  • pet immunity
  • tamper protection against housing opening
  • "Digital Quad Zone" digital optical quad technology
  • advanced Microwave technology for more accurate detection
  • advanced temperature compensation
  • immunity to EMI and RFI interference
  • replaceable lens
SPECIFICATION
  • detection range: 12x12m
  • detection angle: 78 detection zones
  • Grade 2
  • mounting height: 1.5 - 2.4m
  • signaling LED: switching ON / OFF
  • alarm duration: ok. 2.5
  • alarm output: NC, 28V DC 0.2A max.
  • tamper contact: NC, open after removing the cover
  • sensitivity / range: switchable LOW / MID / HI
  • time to prepare for work: ok. 60 s
  • power: 9.5 - 16 V DC
  • power consumption
    • 12mA (normal)
    • 15mA, at 12V DC
  • frequency: 10.525 GHz
  • dimensions: 61.4 x 46 x 93.4 mm
  • time: ok. 90 g (with bracket: 110 g)
  • working temperature: -20°C~50°C
Mounting bracket included.

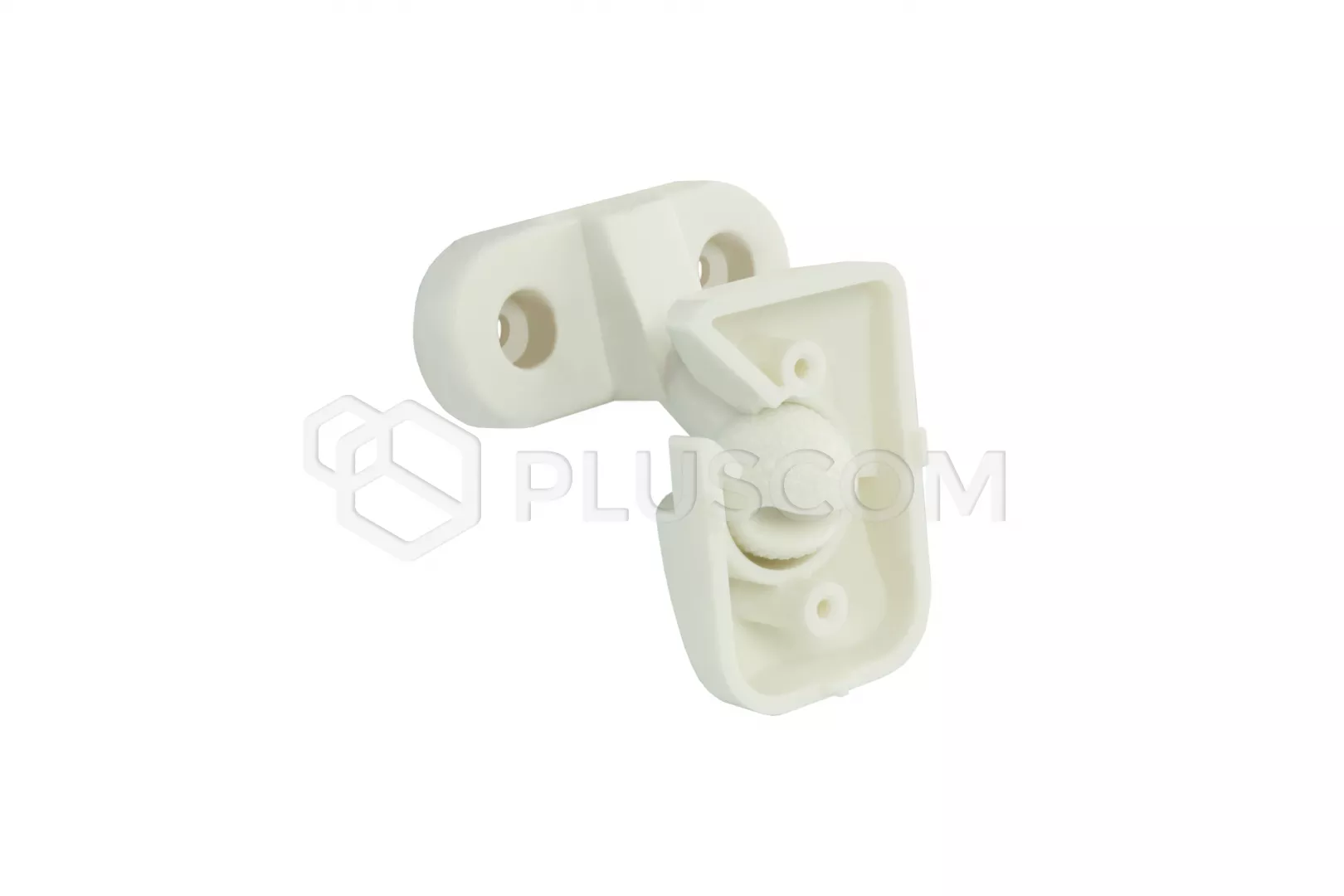

Mounting bracket

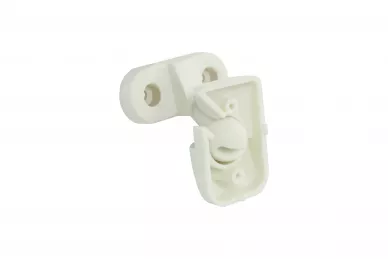

Mounting bracket


Download
Datasheet 1.08 MB
Manual 10.09 MB
