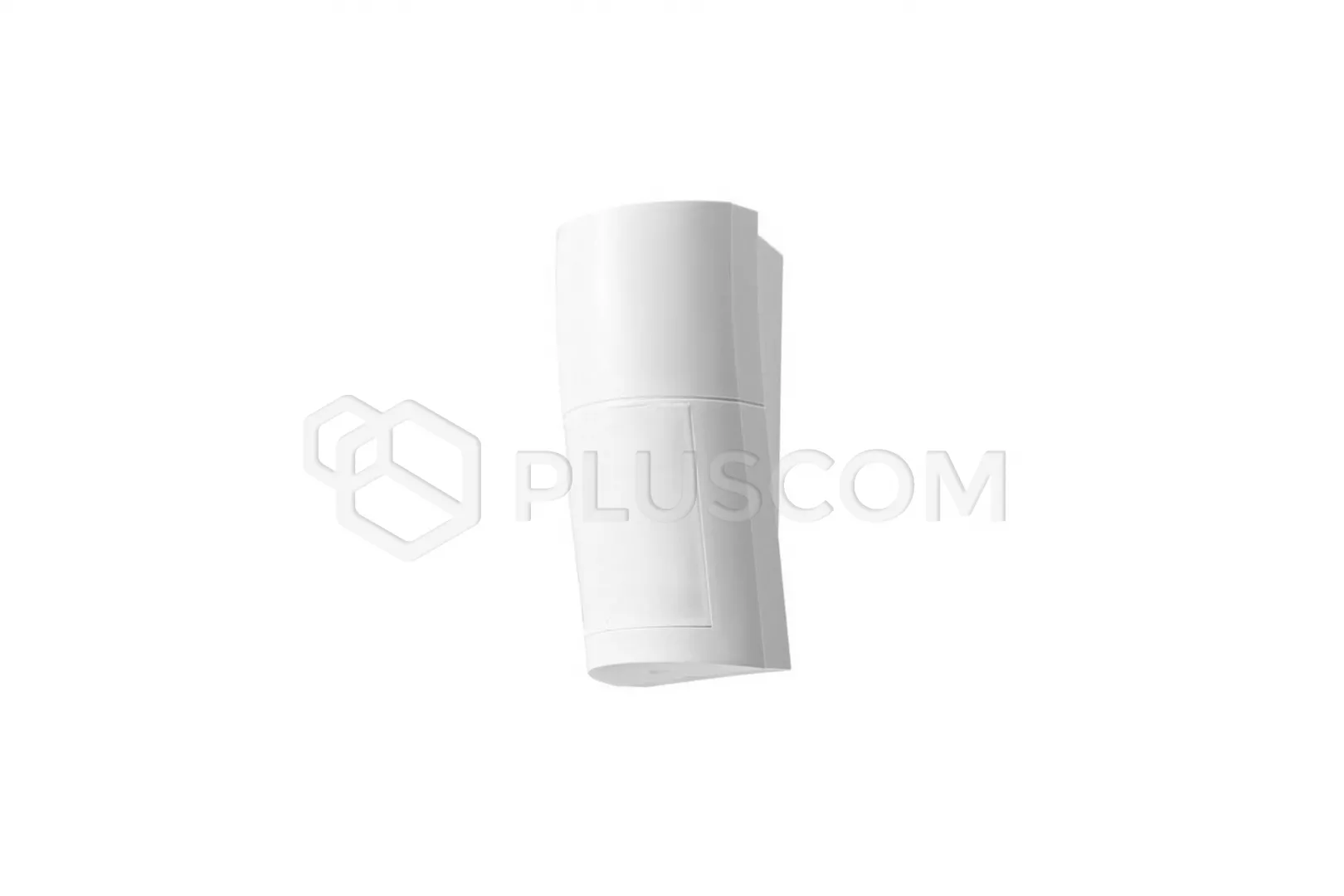

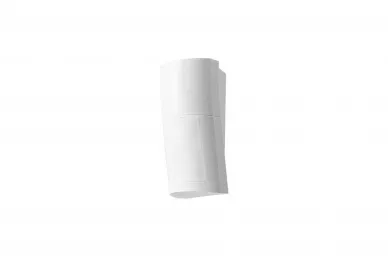

OPTEX QXI-RDT-X5 Wide-angle, outdoor dual PIR/MW detector
QXI-RDT-X5 has a detection angle of 120° and a range of 12 m. It has small
dimensions and is suitable for any residential or residential building
commercial, because they provide reliable detection of intrusions and movement
at while ignoring small animals.
It can also be used to control a CCTV camera.
The PIR+MW dual technology used in the detector series ensures the highest
efficiency stability in detection. The alarm is only triggered when there is
movement detected by both PIR and microwave. It has a reinforced microwave
module OPTEX Tough specially formulated to protect against corrosion caused by
presence of moisture and condensation.
SMDA logic (Super Multidimensional Analysis) - this technology analyzes
the detection and change pattern in the environment, e.g. weather and traffic
vegetation, eliminating disturbances and causes of false alarms.
QUAD technology combined with AND logic - The detector has precisely
placed, double PIR beams working in AND logic (QUAD pyroelement). In case of
high assembly ensure ignoring small animals, increasing outdoor detection
reliability.
Double white light filter - a key feature of the device there is a
double white light filter, which eliminates visible light and frequency
interference radio (RFI).
When installing the detector, we can choose the mounting height and detection
pattern. When installed at a height of 2.2 to 2.7 m, the detector provides
multi-level detection, allowing small animals to be ignored. In environments
where larger animals are present, the detector can be mounted at a height from
0.8 to 1.2 m creating a zone for animals.

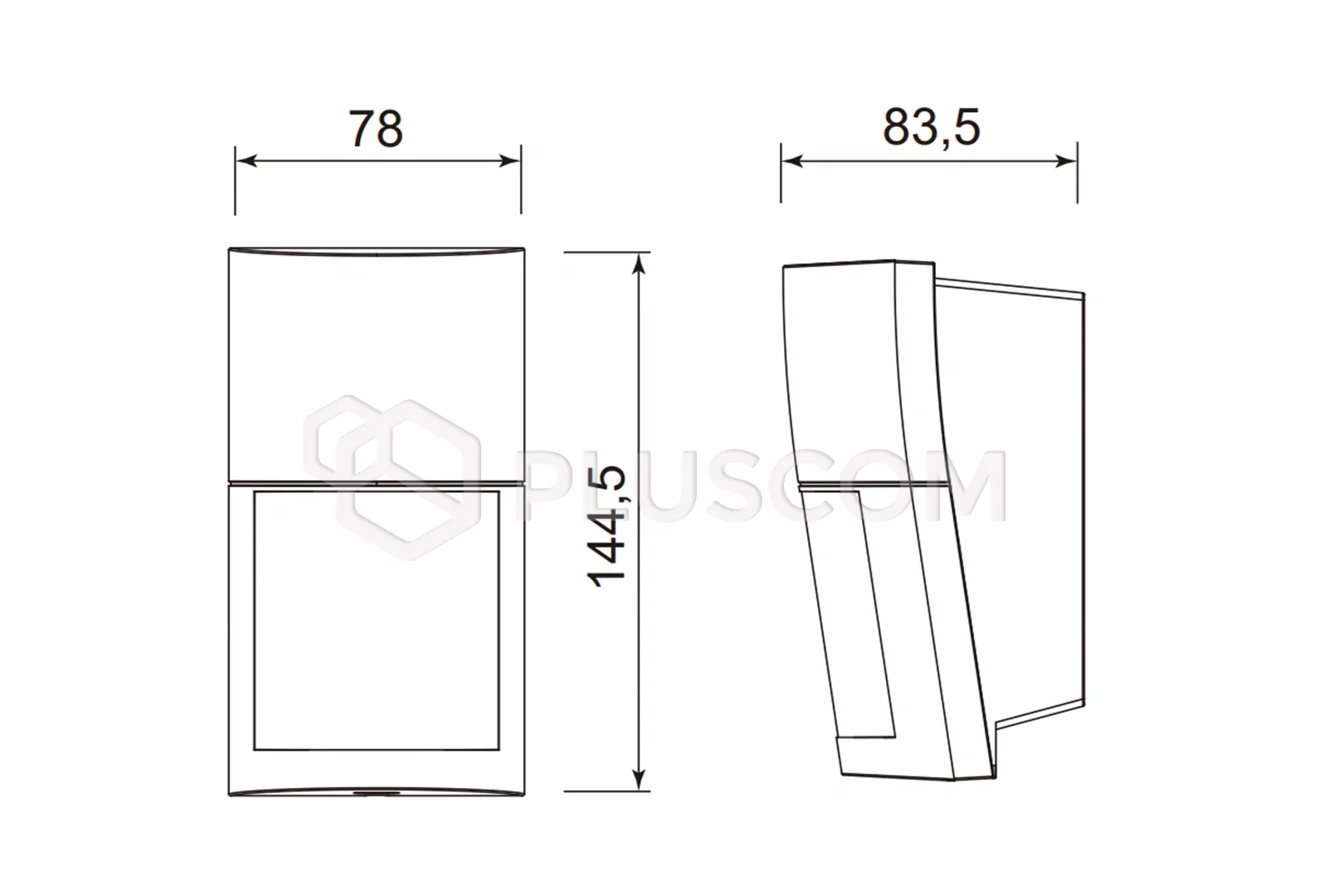

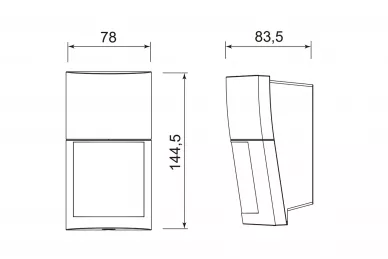

Dimensions:
TECHNICAL DATA
- Detection range: 12 m
- Detection angle: 120°
- PIR zones: normal range: 40 zones, pet zone: 18 zones
- Detected movement speed: 0.3 to 2.0 m/s
- Sensitivity: 2.0°C at 0.6 m/s
- Pet Zone: Disable the lower detection area to ignore small animals
- Power supply: CR123A (3 V DC)
- Current consumption:
-
- 16 µA in standby
- 11 mA (max.) at 3 V DC
- Alarm duration: 2.0 ± 0.5 s
- Preparation time: approximately 60 s (LED flashes)
- Alarm output: Semiconductor switch, N.O. selection / N.C., 3V DC 0.01A
(max.)
- Fault output: Semiconductor switch, N.O. selection / N.C., 3V DC 0.01A
(max.)
- Anti-tamper output: N.C. 28 V DC 0.1 A (max), open when cover is
opened
- LED:
-
- Preparation for work
- Alarm
- End of walk test
- Operating temperature: -40°C to +45°C
- Ambient humidity: max. 95%
- Case tightness: IP 54
- Mounting height
-
- Normal range: 2.2 m to 2.7 m
- Pet zone: 0.8 to 1.2 m
- Weight: 230g
