Optex PCU-5 Power Convertor Unit

79,09 EUR including 23.00% VAT
Product code: #14339
Manufacturer: Optex
  • Dedicated to: SL-100TNR i SL-200TNR
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Optex SL-200TNR Photoelectric detector Optex SL-100TNR Photoelectric detector

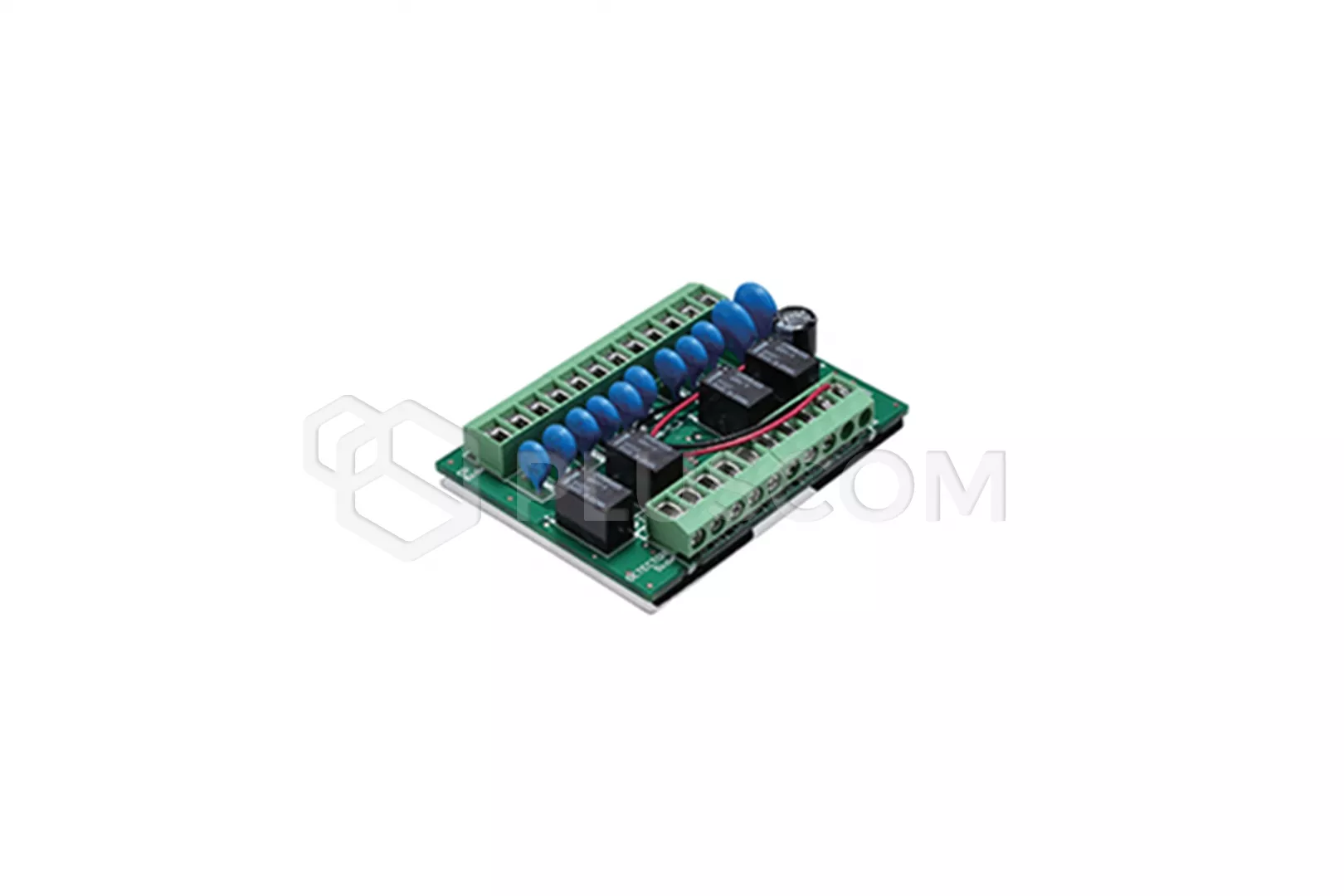

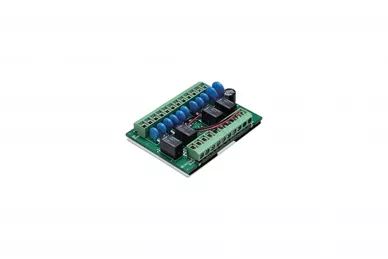

OPTEX PCU-5 Power Convertor Unit


PCU-5 is a Power Convertor Unit or voltage convertor unit to use with the SL-TNR series. It enables to connect one of the beams to a power supply. Built with NO/NC relay terminals and a noise reduction circuit, it can bridge signals from the SL-TNR beams to security alarm panels

Specifications:
  • power input: 10.5 - 30 VDC
  • current draw: 80mA (max.)
  • output voltage: approx. 3.6 to 3.9 VDC
  • output current: 10mA (max.)
  • alarm output: form C relay ; 30VDC. 0.2A
  • D.Q. output : form C relay ; 30VDC. 0.2A
  • low battery output: N.C. relay ; 30VDC. 0.2A
  • tamper output: N.C. relay ; 30VDC. 0.2A
  • operating temperature: -20°C to 60°C
  • dimensions: 71×53×20mm
Download
Manual 0.65 MB
