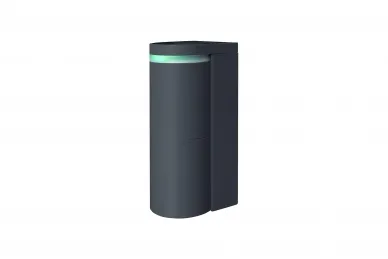

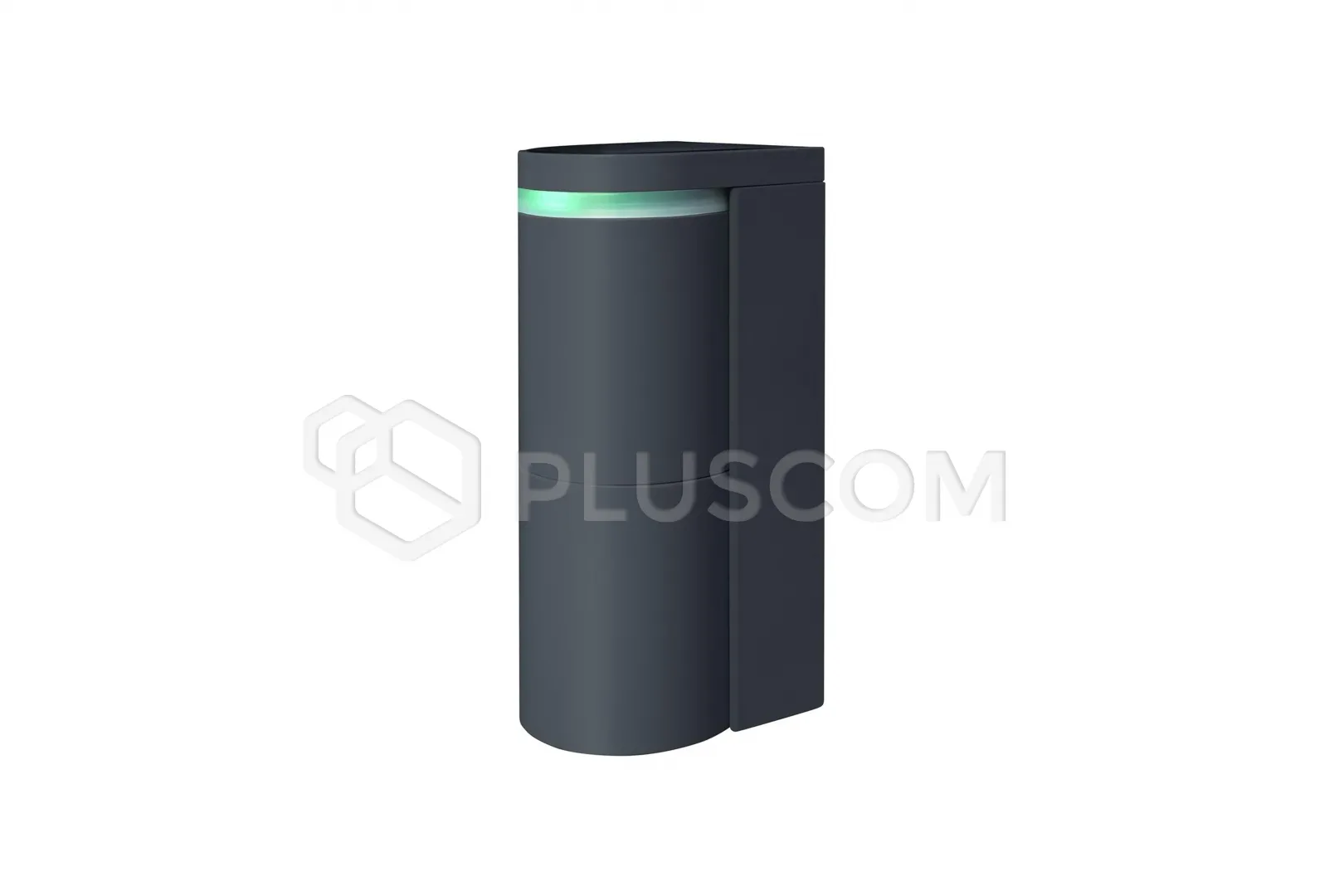

OPTEX OVS-02GT(BL) Vehicle Presence Sensor for Barriers and Automatic Gates

The OVS-02GT is a microwave vehicle presence sensor with an 8-meter range and a 95° detection angle; it detects all vehicle types traveling at speeds up to 35 km/h while ignoring pedestrian traffic.
Microwave technology ensures reliable detection even in challenging weather conditions and warmer climates.
Thanks to a built-in heater and an IP66 protection rating, the OVS-02GT ensures reliable detection in cold, wet, or humid conditions.

The device detects vehicles, ensuring reliable performance across the entire detection zone. It is capable of ignoring pedestrians, thereby preventing unnecessary activations.
The sensor detects both stationary vehicles and those moving at speeds up to 35 km/h, regardless of the vehicle's construction material.

Presence detection prevents vehicle damage caused by barriers closing prematurely. Additionally, the device can be used to trigger external equipment, such as traffic lights or ticket dispensers.

TECHNICAL DATA:

• Detection method: Microwave (FMCW Doppler radar)
• Frequency: Microwave: 24 GHz, Bluetooth communication: 2.4 GHz
• Response time: min. 500 ms
• Power supply: 12–24 V AC/DC
• Current consumption:
• • Heater on: max. 300 mA
  • Heater off: max. 90 mA (at 24 V)
• Operating temperature: -30°C to 50°C
• Humidity: Max. 95% (non-condensing)
• Protection rating: IP66
• Mounting: Indoor / outdoor
• Mounting height: 500 mm (from ground to bottom of device)
• Horizontal adjustment: +/- 96°
• Weight: 600 g (including accessories)
• Accessories: Mounting screws (M4x12: 2 pcs, self-tapping screws 4x20: 2 pcs), quick start guide
