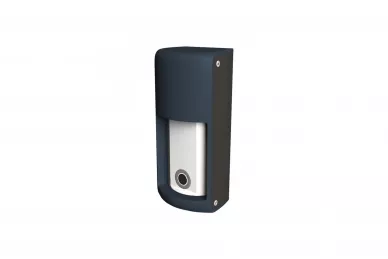

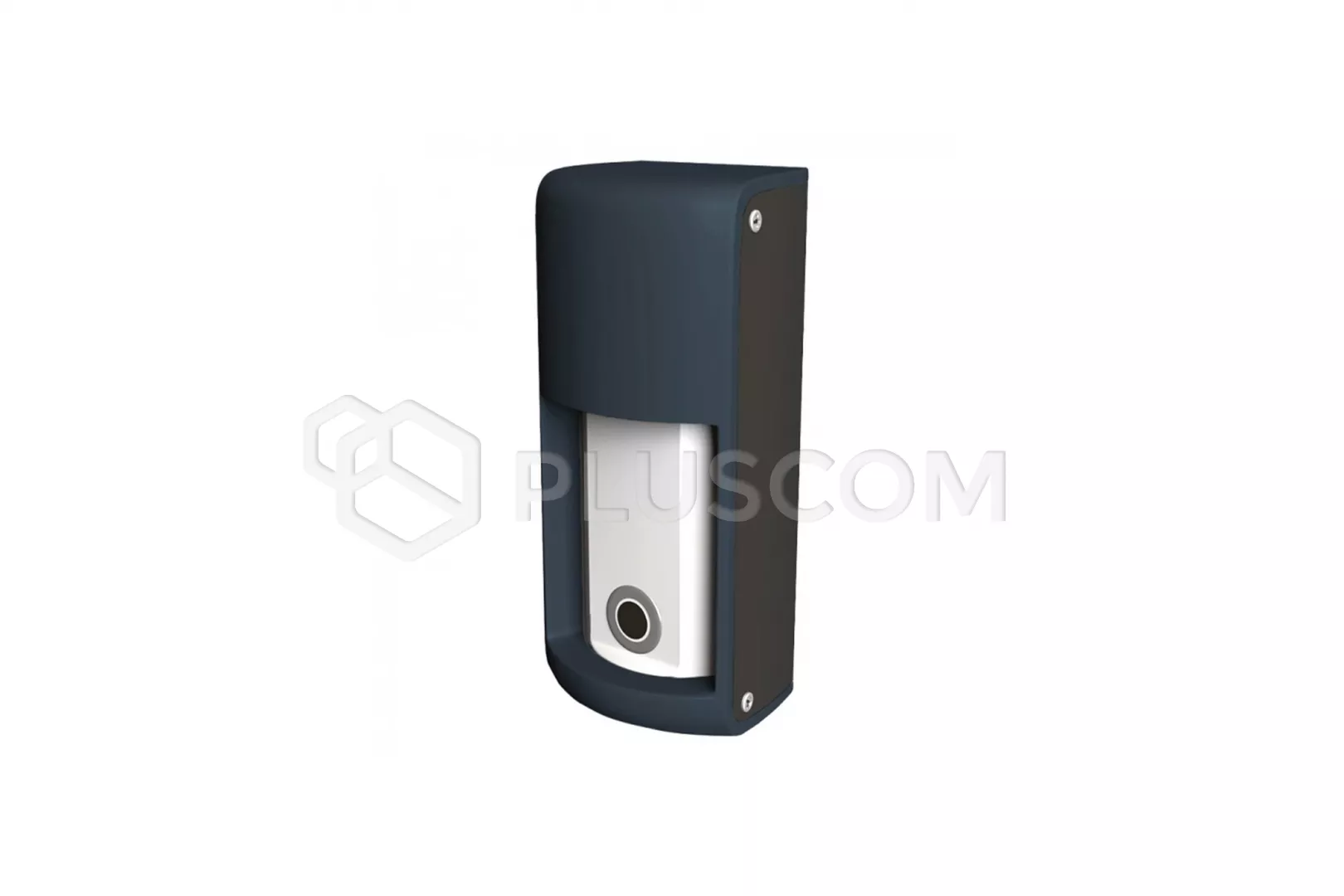

Optex OVS-01GT(E) Parking sensor for opening gates and barriers

995,14 EUR including 23.00% VAT
Product code: #27589
Manufacturer: Optex
  • Detection method: FMCW and ultrasound
  • 5 sensitivity level settings
  • Adjustable range up to 5.5 meters
  • Sensor mounted on a post
  • Built-in heater
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Optex OVS-TB01 Triangular handle

OPTEX OVS-01GT(E) Parking sensor for opening gates and barriers


OVS-01GT(E) is a vehicle detection sensor that uses two technologies, intended for integration with gate opening systems, barriers and industrial doors
It is designed to reliably detect the presence of a detainee or a moving vehicle, and at the same time had the ability to ignore the movement pedestrians.
The sensor is installed 50 cm above the ground. Detects small and large vehicles without use of any devices installed underground. There's no need performing earthworks. The calibration process is simple and automated.
The device has an adjustable microwave range of 0.8 - 5.5 meters and is resistant to changing light intensity and glare in the detection zone.

The OVS-01GT sensor works with 0.10m with the most popular systems parking lots. On the control panel There are 5 levels to choose from sensitivity and 5 motion ignore settings pedestrians.

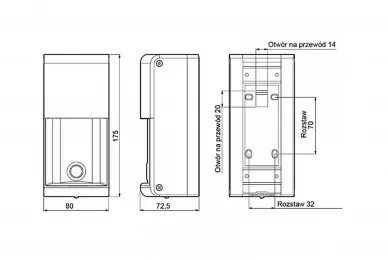

Dimensions:

Dimensions:


TECHNICAL PARAMETERS:
  • Detection method: microwave - Doppler radar and FMCW ultrasonic
  • Frequency
    • microwave: 24 GHz
    • ultrasound: 56 kHz
  • Response time: 500 ms
  • Power supply: 12-24 VDC
  • Current consumption (at 24 VDC):
    • with heater on: up to 200 mA
    • with heater turned off: up to 80 mA
  • Output: relay DC 30V, 0.3A (NO/NC selectable)
  • Input: switchable active high/low
  • Detection range:
    • microwave: 0.8 - 5.5 meters, in steps
    • ultrasound: 0.1 - 1 meter, in steps
  • Detectable vehicle speed: 2 - 20 km/h
  • Parameters:
    • Sensitivity: levels 1 to 5
    • Pedestrian ignore settings: levels 1 to 5
    • Vehicle immobilization time: 5 / 60 / 180 minutes / infinity
    • Extended detection time: off / 5 / 10 / 20 / 40 seconds
    • Input: excite L / excite H / block L / block H
    • Output: NO / NC
    • Max. microwave range: 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 [meters]
    • Max. ultrasound range: off / 0.6 / 0.8 / 1 [meters]
    • Sensor mode: vehicle activation/protection
  • Operating temperature: -30 °C to 50 °C
  • Humidity: up to 95%
  • Case protection rating:IP65
  • Installation height: 50 cm
  • Handle adjustment angle: horizontal: +/- 30° (5-degree steps)
  • Weight: 480 g
