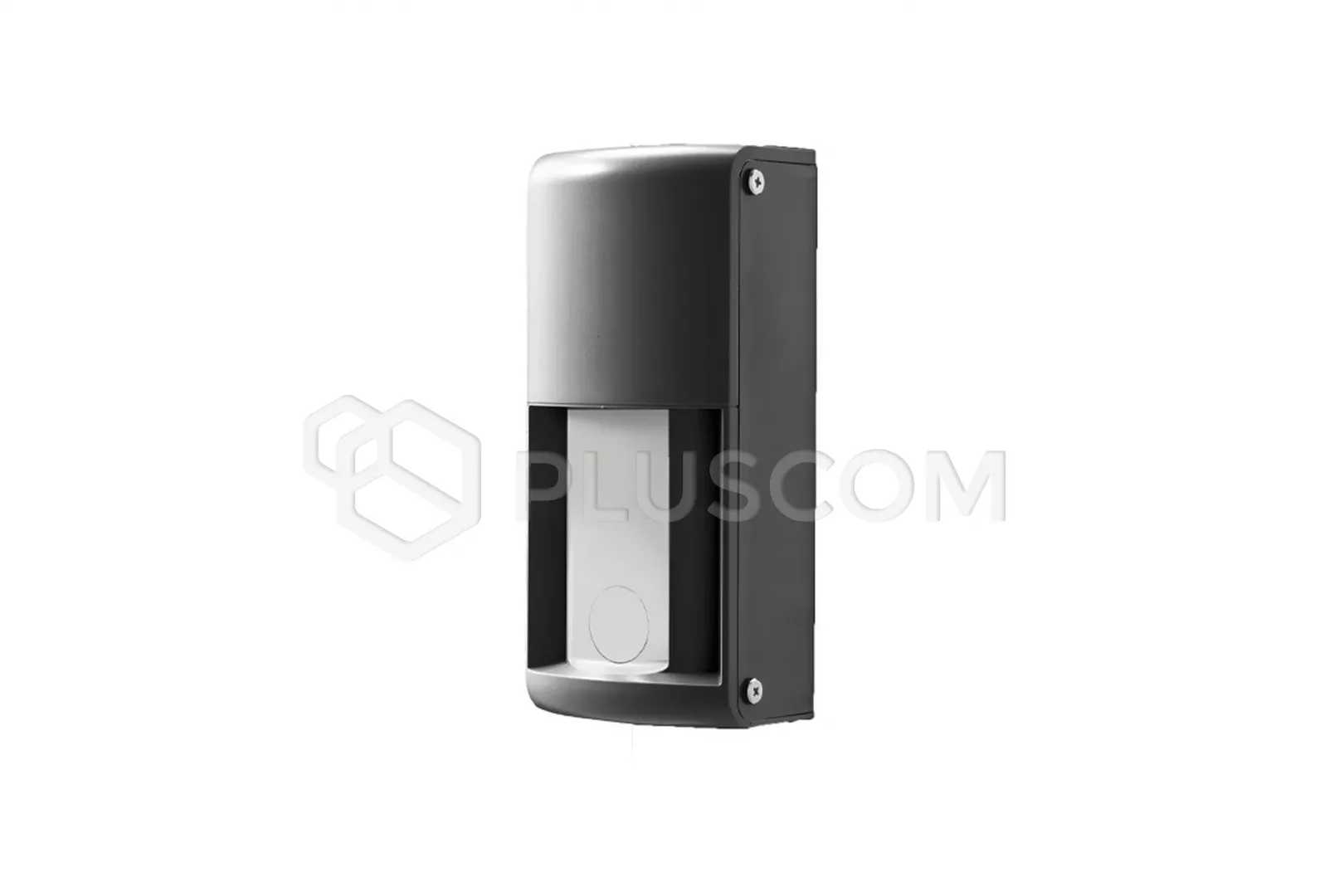

OPTEX OVS-01CC Vehicle presence sensor for counting systems

OPTEX OVS-01CC Vehicle Counting Parking Sensor

The OVS-01CC sensor is designed to count vehicles moving at speeds of up to 60 km/h.
It eliminates issues associated with induction loop installation—breaking up the road surface is no longer necessary, as the sensor is mounted above ground, on a post or a wall.

The detection area can be adjusted using 8 range settings, 5 sensitivity settings, and automatic calibration.
The microwave detection range is adjustable in steps between 1 and 8 meters.

TECHNICAL SPECIFICATIONS:

• Detection method: Microwave (Doppler radar and FMCW)
• Frequency: Microwave: 24 GHz
• Response time: 300 ms
• Power supply: 12-24 VDC
• Current consumption:
• • Max. 190 mA (at 24 VDC) with heater on
  • Max. 70 mA (at 24 VDC) with heater off
• Output: Relay output 30 VDC, 0.3 A (NO/NC selectable)
• Input: NO/NC input
• Detection range: Microwave: 1–8 m (stepped adjustment)
• Detectable vehicle speed: 2 to 60 km/h
• Parameters:
• • Sensitivity: Level 1 to 5
  • Output: 1/2 NO/NC selectable
  • Max. Range: 1m, 2m, 3m, 4m, 5m, 6m, 7m, 8m
• Indicator:
• • Normal operation:
  • • Standby: steady green light, detection: steady red light
    • Unstable conditions: slow flashing green light
  • Detection area monitoring:
  • • No detection: green light
    • Detection: flashing red light
  • Calibration:
  • • Preparation: slow flashing blue light
    • Calibration: fast flashing blue light
  • Sensor reset: Reset complete: flashing yellow light for 2 seconds
• Operating temperature: -30°C to 50°C
• Humidity: 95% max. (non-condensing)
• Enclosure protection rating: IP65
• Installation conditions: indoor / outdoor
• Mounting height: 50cm
• Bracket adjustment angle: Horizontal: +/- 30 degrees (5-degree increments)
• Weight: 480g (including accessories)
• Accessories: 4 screws and installation manual
