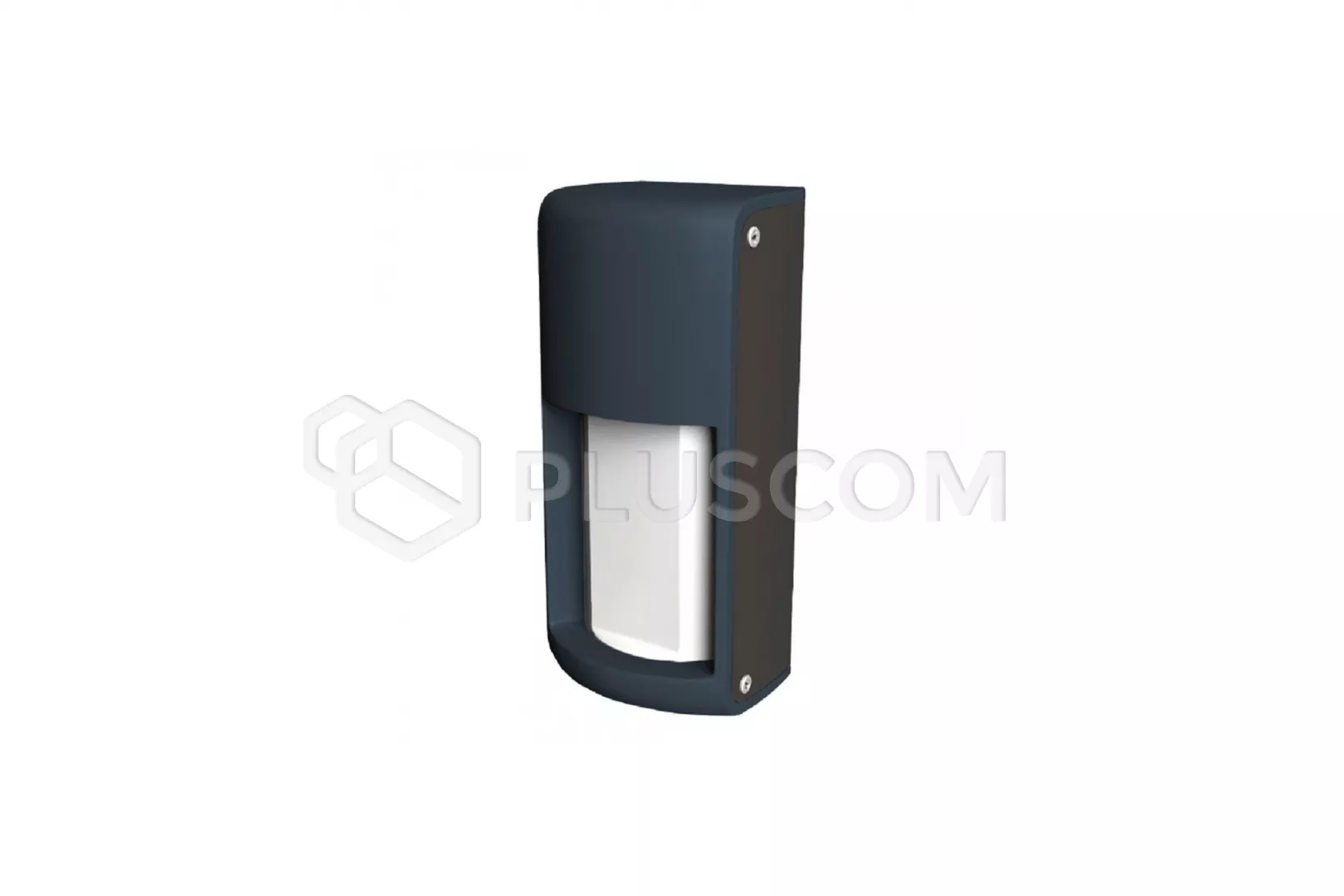

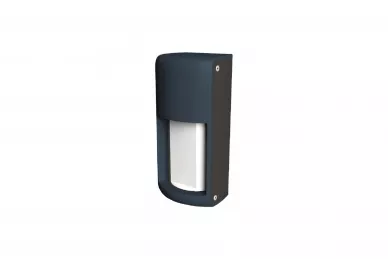

Optex OVS-01CC Parking sensor for counting systems

OPTEX OVS-01CC Parking sensor for vehicle counting

OVS-01CC has been designed to reliably detect and count vehicles. Is a sensor using FMCW microwave technology to detect vehicles within a range of 8 m, moving at speeds from 2 to 60 km/h. In many cases can replace systems based on video verification.
The microwave operating range (blue) is adjustable in steps 1 – 8m. The OVS-1CC sensor has 8 range settings and 5 sensitivity level settings.
The sensor is installed 50 cm above the ground. Detects small and large vehicles without use of any devices installed underground. There's no need performing earthworks. The calibration process is simple and automated.

The detector operates in the temperature range from -30 to 50 degrees Celsius. Case was made in the IP65 class. The detection efficiency will not be affected changes in lighting or weather conditions.

TECHNICAL PARAMETERS:

• Detection method: microwave - Doppler radar and FMCW
• Frequency: microwave: 24 GHz
• Response time: 300 ms
• Power supply: 12-24 VDC
• Current consumption (at 24 VDC):
• • with heater on: 190 mA
  • with heater turned off: 70 mA
• Output: relay DC 30V, 0.3A (NO/NC selectable)
• Input: NO/NC input
• Detection range: microwaves: 1-8 meters, in steps
• Detectable vehicle speed: 2 - 60 km/h
• Parameters:
• • Sensitivity: levels 1 to 5
  • Output: 1/2 NO / NC
  • Max. microwave range: 1m, 2m, 3m, 4m, 5m, 6m, 7m, 8m
• Operating temperature: -30 °C to 50 °C
• Humidity: up to 95%
• Case protection rating:IP65
• Installation height: 50 cm
• Handle adjustment angle: horizontal: +/- 30° (5-degree steps)
• Weight: 480 g
