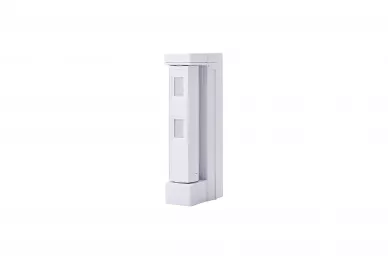

Optex FTN-R-PT external sensor with an integrated box for battery

OPTEX FTN-R-PT FTN-R external sensor with an integrated box

The FTN-R-PT is a wireless-ready model of the Fit Dual PIR Series that offers universal wireless transmitter compatibility. The FTN-R-PT features adjustable 16.5' x 3'3" or 6.7" x 1'1.5" coverage, utilizing dual PIR technology for verification and intelligent size judging function to prevent false alarms triggered by weather conditions and small animals. With its built-in bracket that enables 190° rotation, the FTN-R-PT is ideal for residential and small business applications.

Features:

• Wireless-ready, universally compatible with existing wireless transmitters
• Adjustable 16.5' x 3'3" / 6.7" x 1'1.5" coverage
• Intelligent size judging function
• False alarm protection against extreme weather conditions & pet presence
• Built-in bracket enables 190° rotation

SPECYFICATION

• Detection Method: Passive infrared
• PIR Coverage: 5×1m (16'5"×3'3")
• Detection Length Limit: 2 m, 5 m (6'7", 16'5")
• Detectable Speed: 0.3 - 1.5 m/s (1' - 4'11"/s)
• Sensitivity: 2.0C (at 0.6 m/s) (3.6F (at 2'/s)
• Operation Voltage: 2.5 - 10 V DC
• Power Input: 3 - 9 V DC (Lithium or Alkaline Battery)
• Current Draw: 9μA(at stand-by) / 3mA(max.)(at 3 V DC)
• Alarm Period: 2.0, 1.0sec.
• Warm-up Period: Approx. 120 sec. (LED blinks)
• Alarm Output: N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A(max.)
• Trouble Output: N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A(max.)
• LED Indicator:
• • Enable: During DIP switch 1 (WALK TEST MODE) or DIP switch 4 (LED) ON
  • Disable: During normal operation, Light/Blink: Warm-up, alarm, masking detection (FTN-RAM only)
• Operation Temperature: -20 - +60C (-4 - +140F)
• Environment Humidity: 95% max.
• Weatherproof: IP 55
• Mounting: Wall (Outdoor, Indoor)
• Mounting Height: 0.8 - 1.2 m
• Weight: 180 g (6.4 oz.)
