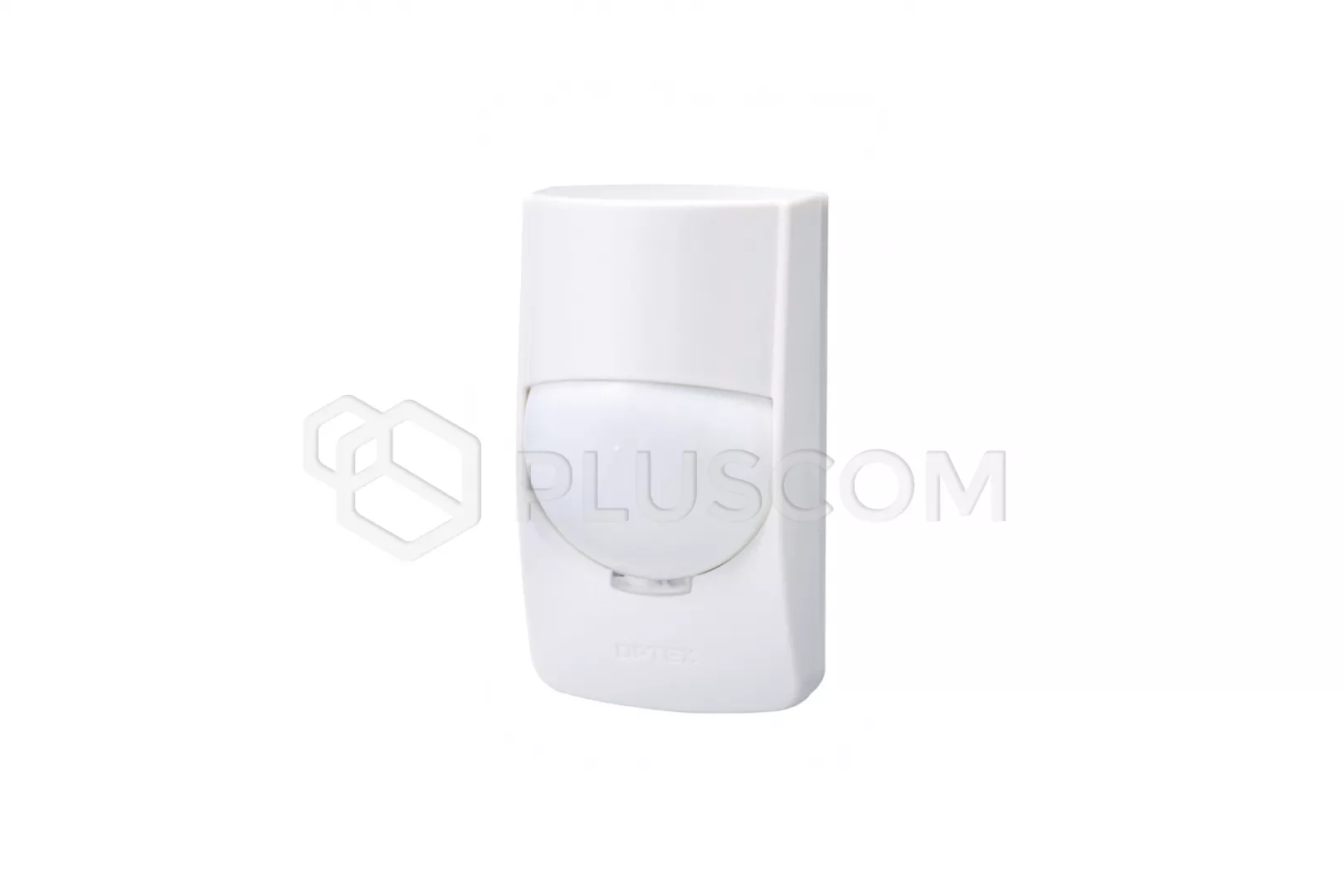

Optex FMX-ST High performance indoor PIR sensor

OPTEX FMX-ST High performance indoor PIR sensor

FMX has 78 dense zones to cover the whole detection area. At any spot within the detection area more than 4 (quad) zones are utlised to verify if an alarm should be generated or not. Additionally, the CORE processor used in the FMX series enables to improve the Quad Zone Logic by providing digital quantification of infrared energy. This enhances the accuracy level to differentiate between human or small animals.

KEY FEATURES

• Pet tolerance
• Digital Quad Zone logic (intelligent analysis)
• Remote LED control
• Noise reduction
• Advanced sealed optics
• Advanced temperature compensation logic

TECHNICAL PARAMETERS:

• Detection method: THE BRIDGE
• Device class: EN50131-2-2 (Grade 2)
• Electromagnetic Interference Filter and strong lighting: Standard
• Detection characteristics:
• • 15m x 15m
  • ngle of 85 °
  • 78 detection zones
• Power: 9.5 ~ 16V DC
• Power consumption:
• • 8mA (normal)
  • 11 mA (max.) At 12V DC
• Alarm output: NC, 24V DC 0.2A max.
• Alarm duration: About 2.5s.
• Tamper contact: NC open when cover is removed
• Tamper output: 28V DC, 0.1A max.
• Signal diode: Switchable ON / OFF remote control of the diode operation
• Sensitivity / range: Switchable LOW / MID / HI
• Time to prepare for work: About 60s.
• Mounting height: 2.2 ~ 3.0m
• Dimensions: 61.4x50x111.7 mm
• Working temperature: -20°C ~ 50°C
• Humidity: Up to 95% of max.
• Noise immunity: 10V/m
