Optex FMX-DT-X5 Dual PIR and MW detector

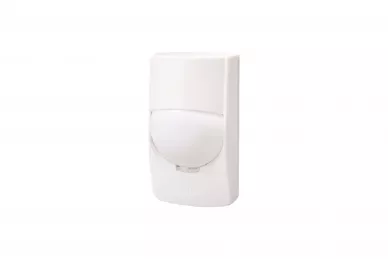

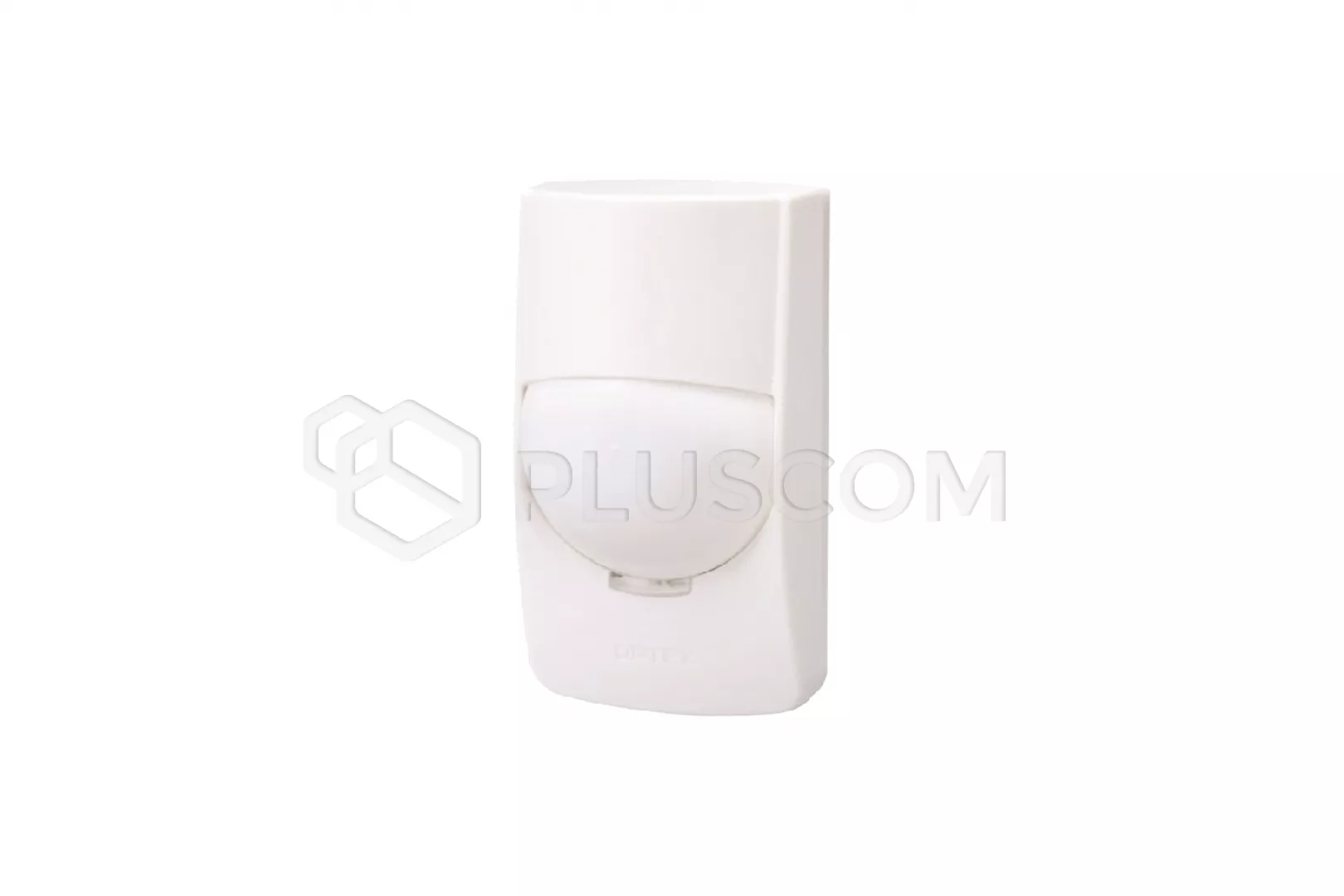

OPTEX FMX-DT-X5 Digital Quad Zone Logic PIR Detector

The FMX-DT is a high performance Dual-Technology indoor PIR motion detector for high-end residential and light commercial applications.Our motion detector features quad zone logic, which includes digital target recognition for small animal tolerance. The FMX-DT is our Dual Technology model which combines infra-red and microwave technology to further decrease the chances of unwanted alarms.

The FMX series has 78 dense zones to cover the whole detection area. At any spot within the detection area more than 4 (quad) zones are utlised to verify if an alarm should be generated or not. Additionally, the CORE processor used in the FMX series enables to improve the Quad Zone Logic by providing digital quantification of infrared energy. This enhances the accuracy level to differentiate between human or small animals.

Key Features

• leakproof casing resistant to insects
• adjust detection sensitivity
• pet immunity
• tamper protection against housing opening
• "Digital Quad Zone" digital optical quad technology
• advanced Microwave technology for more accurate detection
• advanced temperature compensation
• remote control of the indicator light

SPECIFICATION

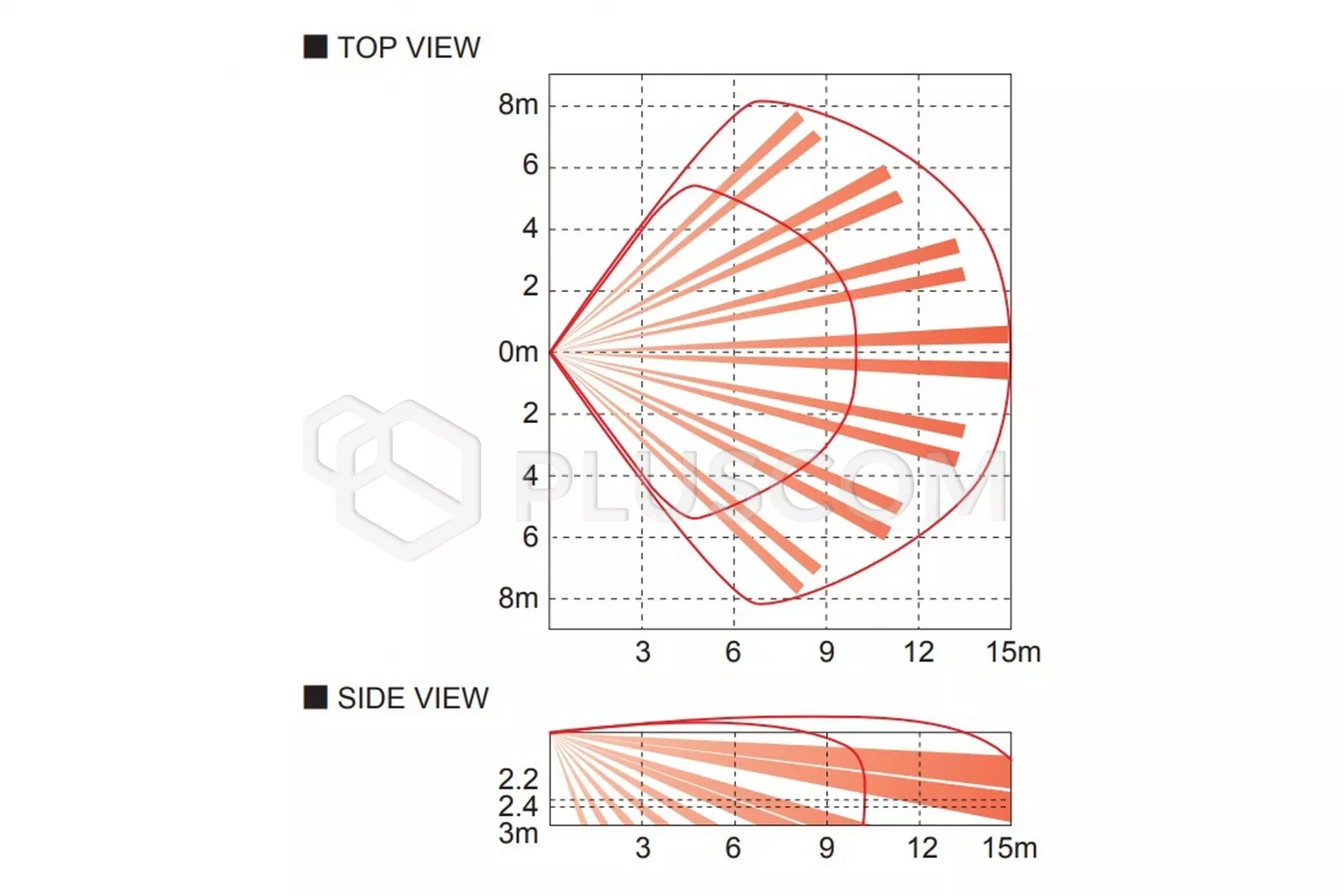

• detection range: 15x15m, 85°
• detection angle: 78 detection zones
• Grade 2
• mounting height: 2,2 – 3,0m
• signaling LED: switching ON / OFF
• alarm duration: ok. 2.5s
• alarm output: N.C., 28V DC, 0.2A max
• tamper contact: N.C., open when cover is removed
• tamper output: 28V DC, 0.1A max
• PIR sensitivity / range: LOW / MID / HI switchable
• sensitivity / MW range: LONG / SHORT switchable
• time to prepare for work: ok. 60 s
• power: 9,5 do 16V DC
• power consumption
• • 12mA (normal)
  • 15mA (maks.) at 12V DC
• frequency: 10.525 GHz
• dimensions: 111,7mm x 61,4mm x 50,0mm
• time: 120g
• working temperature: -20°C~50°C
