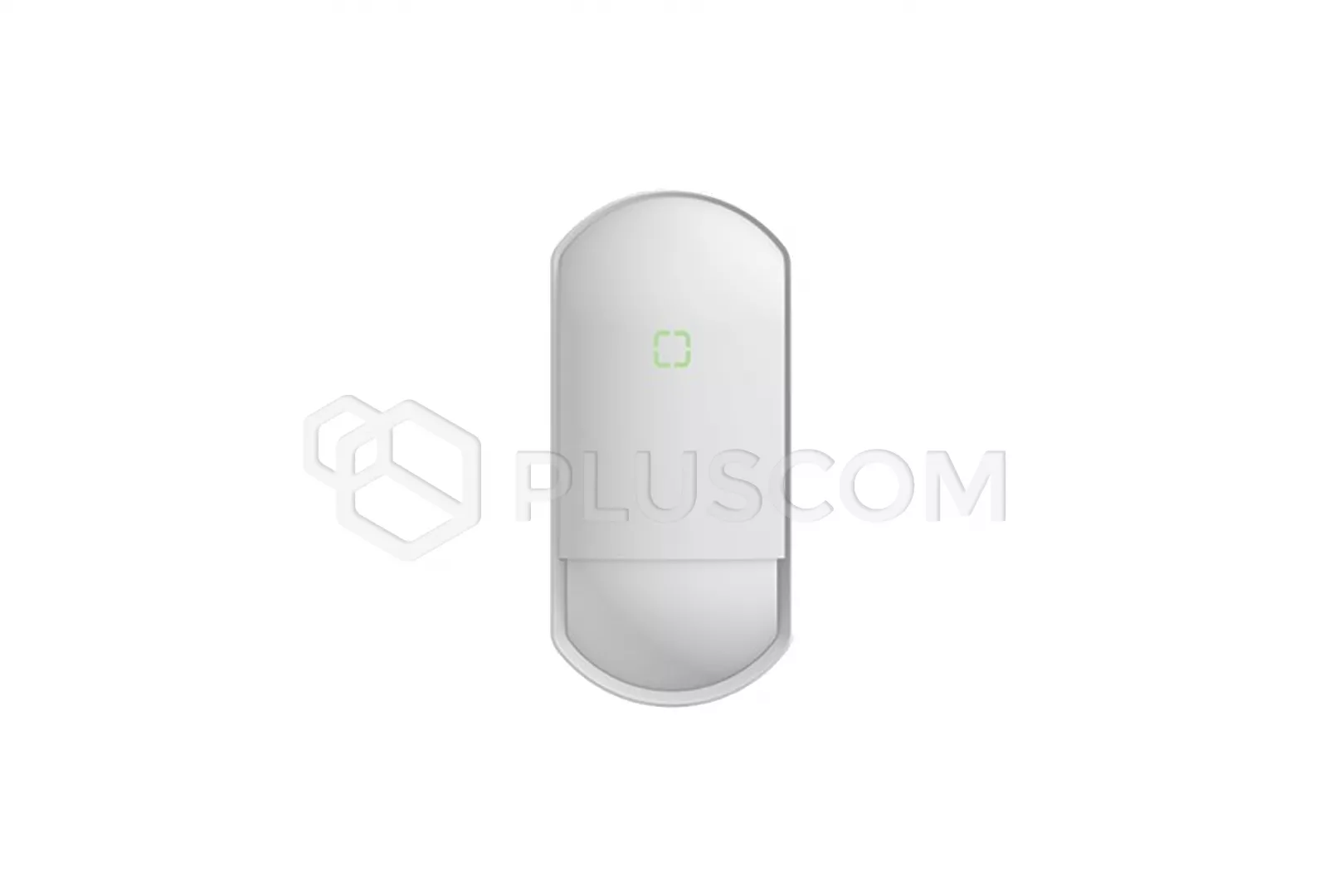

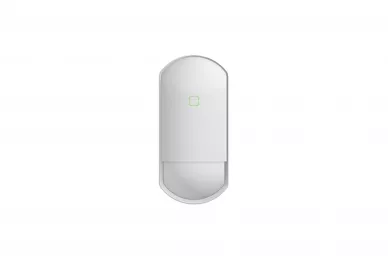

Optex FLX-S-ST Internal PIR sensor with rotatable lens

OPTEX FLX-S-ST Internal PIR sensor

FLX-S-ST is the latest indoor PIR detector, equipped with an innovative a pyroelement adapted to the shape of the human figure, enabling creation human-sized detection areas and very effective bypassing small ones animals. Equipped with a rotating lens allows you to easily switch between wide and narrow detection area.
The factory setting of the detector is a wide detection area. But enough is enough remove the cover and rotate the lens 180 degrees to get a completely different, narrow detection area designed to protect corridors, windows and much more places.

SMDA algorithm - allows the detector to recognize false alarms by shadows, temperature changes or bright lights common in indoor environments spaces.
Spherical lens - ensures precise focusing of each ray falling on the pyroelectric elements.

FEATURES:

• Rotating lens
• Wide mode: 12 m, 85°
• Narrow mode: 18m, 5°
• High tolerance to the presence of small animals thanks to the new pyroelement
• Easy assembly

TECHNICAL DATA:

• Detection method: PIR
• Detection area:
• • Wide mode: 12 m, 85°
  • Narrow mode: 18m, 5° (PIR only)
• Detection zones:
• • Surface: 76 zones
  • curtain: 12 zones
• Installation height From 2.0 to 3.0 m
• Alarm duration 2.0 ± 0.5 s
• Preparation time for work Approx. 60 sec. (LED flashes)
• LED indications:
• • Switchable ON/OFF
  • Green: [1]
  • Preparations for work [2]
  • Alarm
• Power supply: 9.5 to 16 V DC
• Power consumption:
• • 8 mA (normal)
  • 11 mA (max.) at 12 V DC
• Relay output:
• • Alarm: N.C. 24V DC 0.1A max
  • Sabotage: N.C. 24 V DC 0.1 A max. (Active when the cover is opened)
• Operating temperature: -20°C to 50°C
• Temperature Compensation: Digital (SMDA)
• Ambient humidity Max. 95%
• RF Interference: No 10V/m alarm

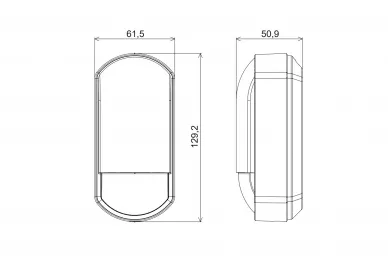

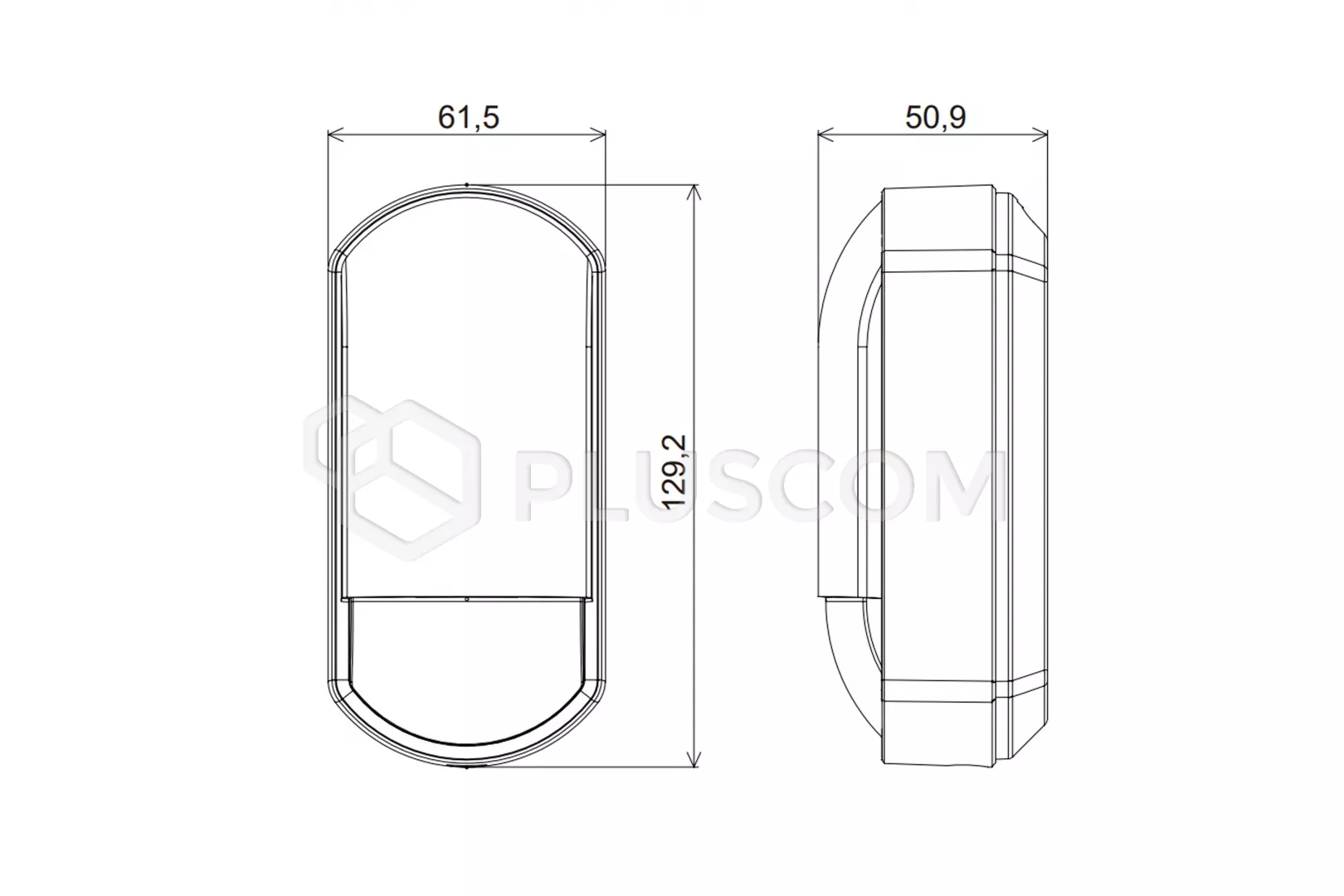

• Dimensions: 61.5x50.9x129.2 mm (width/length/height)
• Weight: 90 g
