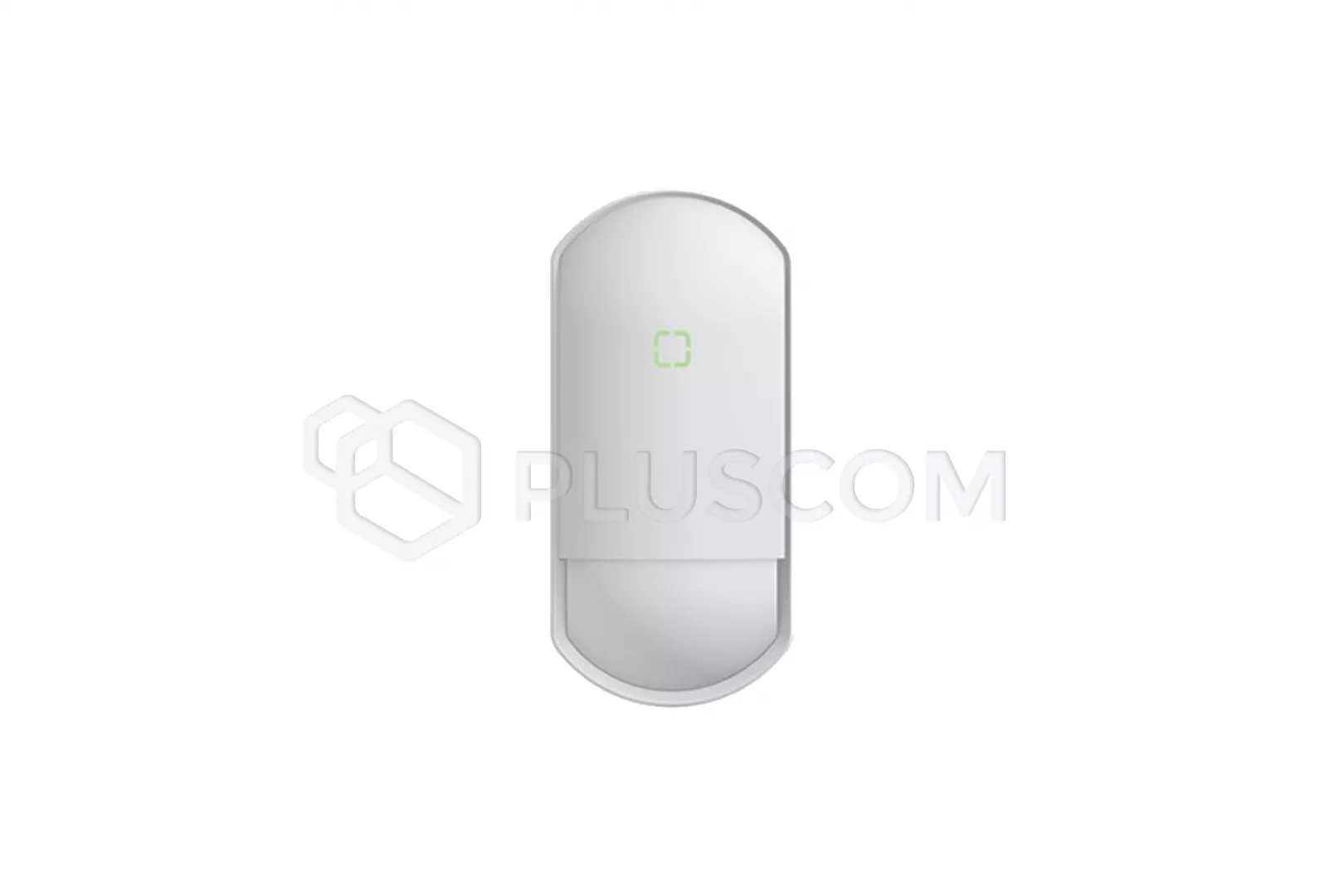

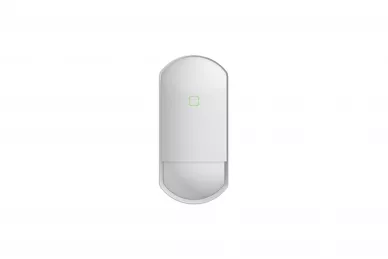

Optex FLX-S-DT-X5 Indoor PIR with dual technology

36,43 EUR including 23.00% VAT
Product code: #27618
Manufacturer: Optex
  • Dual PIR+MW
  • PET immunity
  • Rotatable lens and pyroelement
  • Power supply: 12 vdc
  • Compliance with EN 50131-1: grade 2
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Optex CW-G2 BRACKET Adjustable holder for motion detectors

OPTEX FLX-S-DT-X5 Indoor dual PIR/MW detector


FLX-S-DT-X5 is the latest, dual indoor detector, equipped with an innovative a pyroelement adapted to the shape of the human figure, enabling creation human-sized detection areas and very effective bypassing small ones animals. Equipped with a rotating lens allows you to easily switch between wide and narrow detection area.
The factory setting of the detector is a wide detection area. But enough is enough remove the cover and rotate the lens 180 degrees to get a completely different, narrow detection area designed to protect corridors, windows and much more places.

Dual technology - the alarm will only sound when they work both PIR sensors. Applying the unique Tough MOD 2 brings customization detection range to the PIR sensor, ensuring even higher efficiency detection while reducing false alarms.
SMDA algorithm - allows the detector to recognize false alarms by shadows, temperature changes or bright lights common in indoor environments spaces.
Spherical lens - ensures precise focusing of each ray falling on the pyroelectric elements.

FEATURES:
  • Dual detector
  • Rotating lens
  • Wide mode: 12 m, 85°
  • Narrow mode: 18m, 5°
  • High tolerance to the presence of small animals thanks to the new pyroelement
  • Tough MOD 2 module - improved microwave and reliable efficiency detection
  • Easy assembly

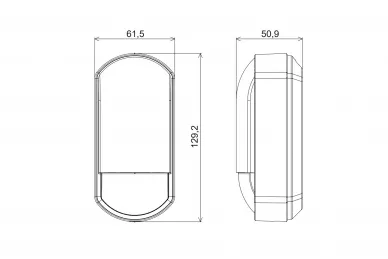

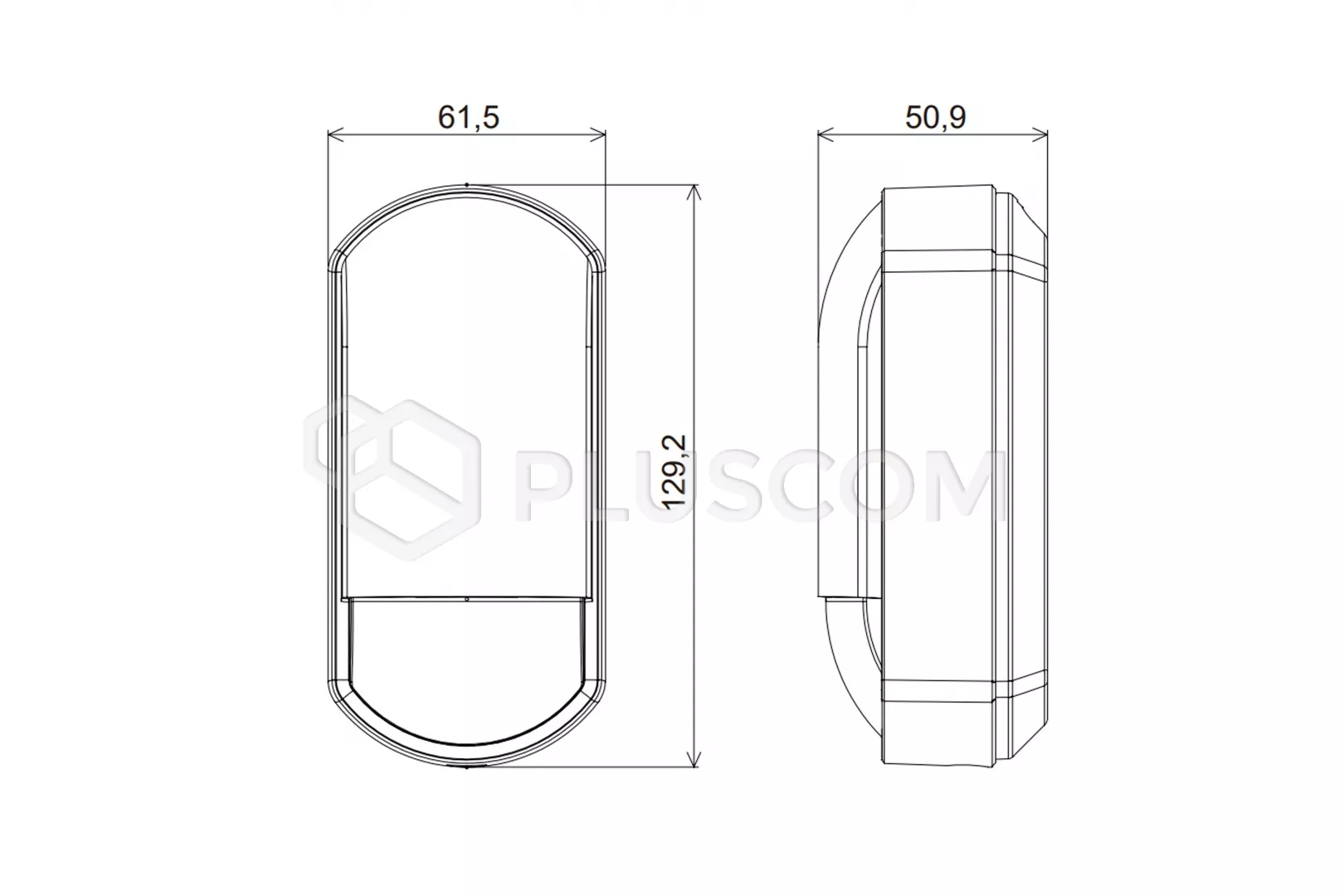

Dimensions:

Dimensions:


TECHNICAL DATA:
  • PIR + MW detection method
  • Detection area:
    • Wide mode: 12 m, 85°
    • Narrow mode: 18m, 5° (PIR only)
  • Detection zones:
    • Surface: 76 zones
    • curtain: 12 zones
  • Installation height From 2.0 to 3.0 m
  • Alarm duration 2.0 ± 0.5 s
  • Preparation time for work Approx. 60 sec. (LED flashes)
  • LED indications:
    • Switchable ON/OFF
    • Green: [1]
    • Preparing for work [2]
    • Alarm
  • Power supply: 9.5 to 16 V DC
  • Power consumption:
    • 11 mA (normal)
    • 14 mA (max.) at 12 V DC
  • Relay output:
    • Alarm: N.C. 24V DC 0.1A max
    • Sabotage: N.C. 24 V DC 0.1 A max. (Active when the cover is opened)
  • Remote LED Terminals: Open; off, 0 V; lit
  • Operating temperature: -20°C to 45°C
  • Temperature Compensation: Digital (SMDA)
  • Ambient humidity Max. 95%
  • RF Interference: No 10V/m alarm
  • Dimensions: 61.5x50.9x129.2 mm (width/length/height)
  • Weight: 105 g
