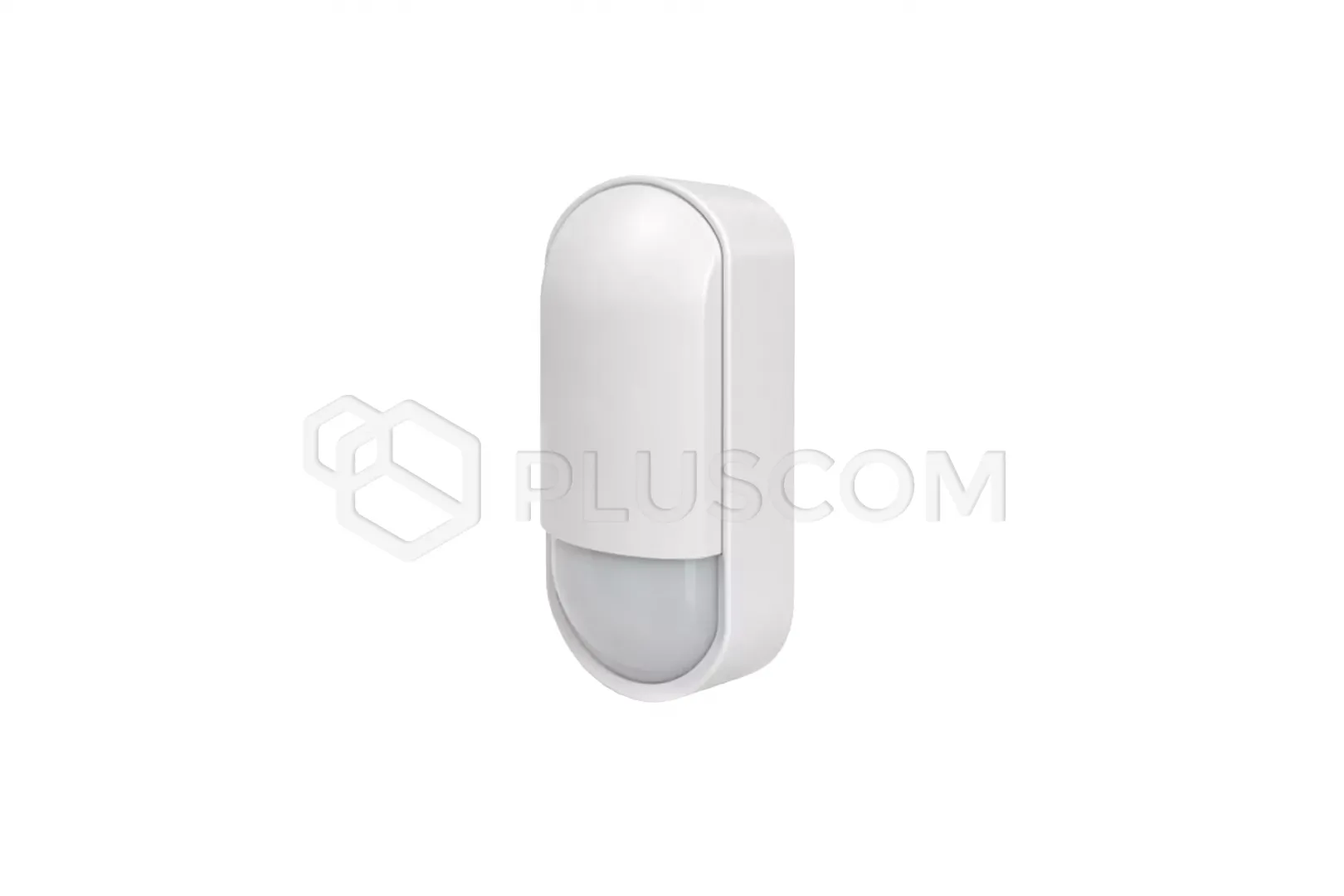

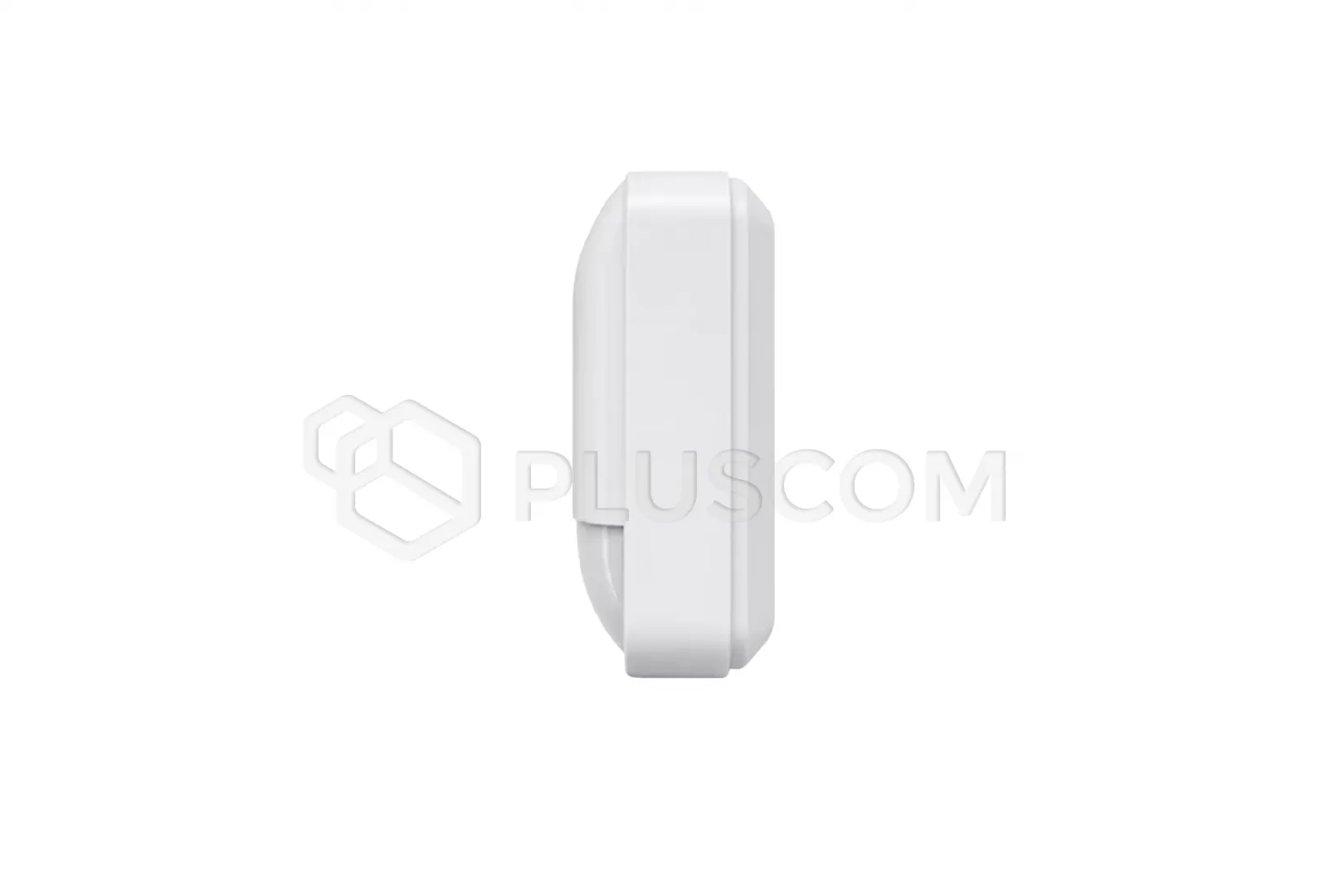

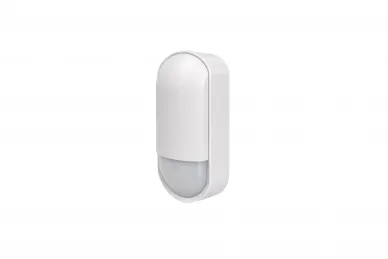

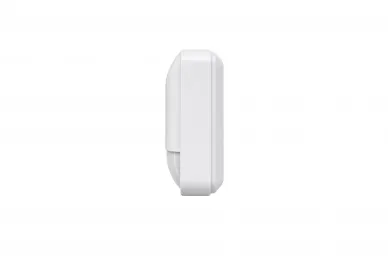

OPTEX FLX-P-ST Grade 2 Indoor Detector with Selectable Lens Pattern for
High-Security Applications
This Grade 2 indoor detector for high-security applications features an
innovative, market-first pyroelectric element tailored to the human silhouette;
this enables the creation of human-sized detection zones, ensuring high
detection precision.
Thanks to an improved spherical lens—where each segment is precisely aimed at
the detection area to create a perfectly sharp image—and an extended detection
range (up to 15m/85° in wide mode and up to 24m in curtain mode), the FLX-P-ST
is an ideal choice for various indoor applications, including schools, offices,
retail stores, and large residential properties.
The specially designed spherical lens ensures precise focusing of every ray
onto the pyroelectric elements. The advanced lens design guarantees consistency
across the entire detection field, significantly reducing the likelihood of an
intruder going undetected.
The detector comes factory-set for a wide detection area. However, simply
removing the cover and rotating the lens 180 degrees switches it to a
completely different, narrow detection pattern designed for protecting
corridors, windows, and various other locations.
SMDA ALGORITHM
The detector features digitally assisted signal recognition technology known as
"SMDA." This advanced detection technology enables the detector to
distinguish false triggers caused by shadows, temperature fluctuations, or
bright lights—phenomena commonly found in indoor environments. Thanks to this
enhanced digital algorithm, you can be confident that such common occurrences
will not trigger an alarm. The model also incorporates features typical of
outdoor detectors, making it exceptionally robust and durable for everyday
indoor detection applications.
TECHNICAL SPECIFICATIONS:
- Detection method: PIR
- Detection area:
-
- Wide: 15m, 85°
- Narrow: 24m, 5° (PIR only in narrow mode)
- Mounting height: 2.0 - 3.0 m
- Supply voltage: 9.5 - 16 V DC
- Current consumption:
-
- Alarm duration: 2.0 ± 0.5 s
- Warm-up period: Approx. 60 s (LED flashing)
- Alarm output (R): N.C. 24 V DC 0.1 A max. (resistive load)
- Trouble output: N.C. 24 V DC 0.1 A max. (opens when cover is
removed)
- Tamper switch: N.C. 24 V DC 0.1 A max. (opens when cover is removed)
- LED: Green: [1] Warm-up [2] Alarm
- Operating temperature: -20°C ~ 50°C
- Humidity: 95% RH max.
- Dimensions: 61.5x50.9x129.2mm
- Weight: 95g
