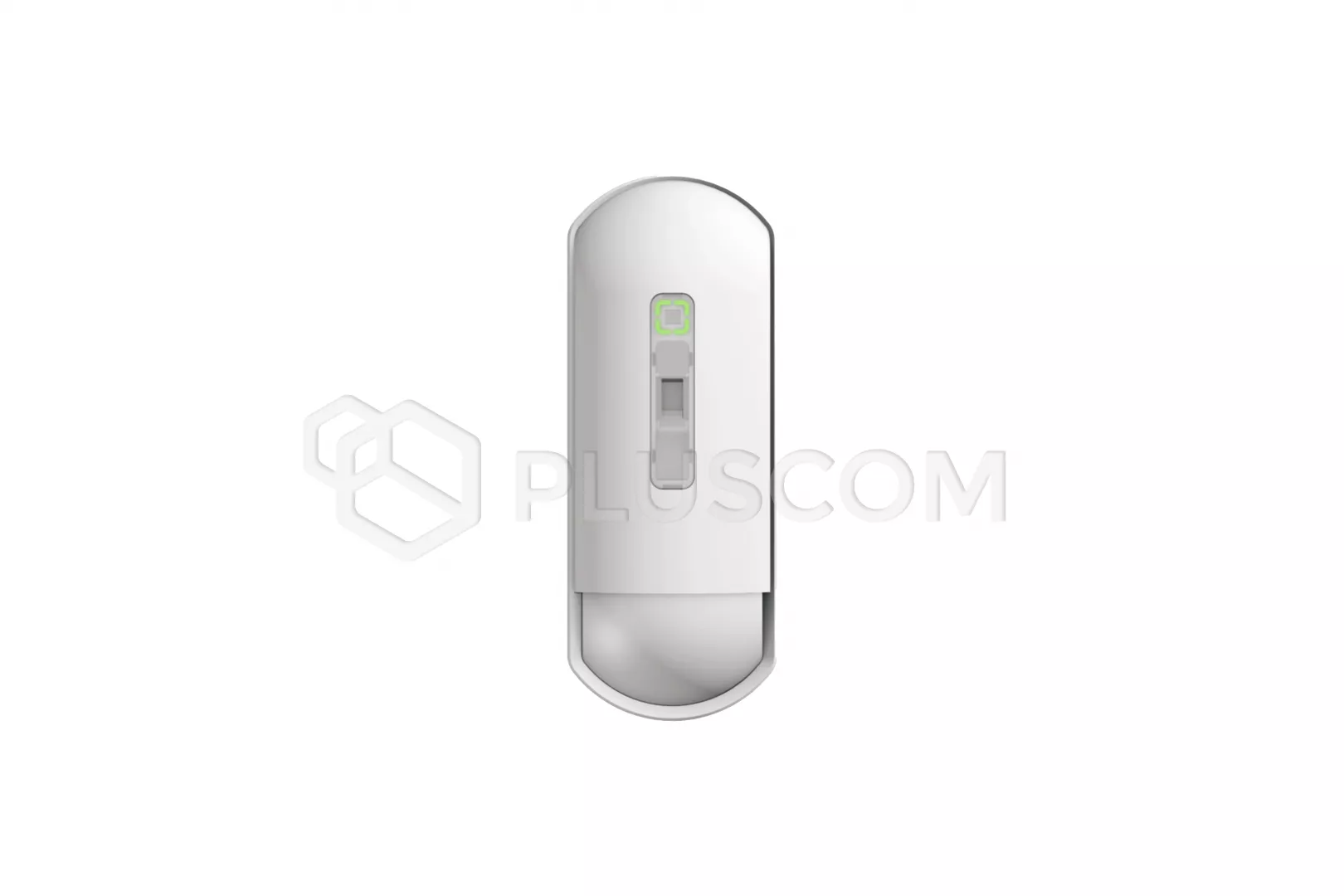

Optex FLX-A-DAM-X5 dual technology indoor PIR with antimasking

75,36 EUR including 22.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #27622
Manufacturer: Optex
  • PIR and MW detector, range 15m
  • Anti-mask function
  • Rotatable lens
  • Power supply: 12 vdc
  • Compliance with EN 50131: grade 3
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Optex CW-G3 BRACKET holder with a detachment sensor from the wall

OPTEX FLX-A-DAM-X5 indoor dual PIR+MW detector with anti-masking


FLX-A-DAM is the latest detector with two detection technologies (PIR + MW) and anti-masking. It is equipped with a rotatable lens, thanks to which you can use wide and narrow detection modes in one device.
It has 80 detection zones and a range of up to 24 meters, which makes it ideal choice for facilities with a high level of security and demanding requirements advanced solutions.

The light and electromagnetic interference filter patented by OPTEX allows FlipX detectors block RFI and avoid false alarms caused by sunlight.
Setting the sensitivity to "super high" allows you to detect objects located directly under the detector.

The FLX-A-DAM detector is equipped with two detection technologies: PIR + MW and anti-masking. This increases the level of reliability and ensures that the alarm stays activated only when an object is detected by both microwave and and infrared. Thanks to the infrared and microwave anti-masking function generating a fault signal in the event of an attempt to cover the detector, device detects attempts to cover both the lens surface and the front surface covers, enabling their detection and triggering an alarm regardless of the location overrides.

FEATURES:
  • Dual detector
  • Grade 3 with anti-masking and rotatable lens
  • Wide mode: 15 m, 85°
  • Narrow mode: 24 m (PIR only)
  • Ultra high sensitivity "Super High"
  • Easy assembly
A unique feature of the detector is the removable terminal strip, which allows for easy and quick wiring flexible installation height (2-3 m) ideal for commercial buildings with higher ceilings.

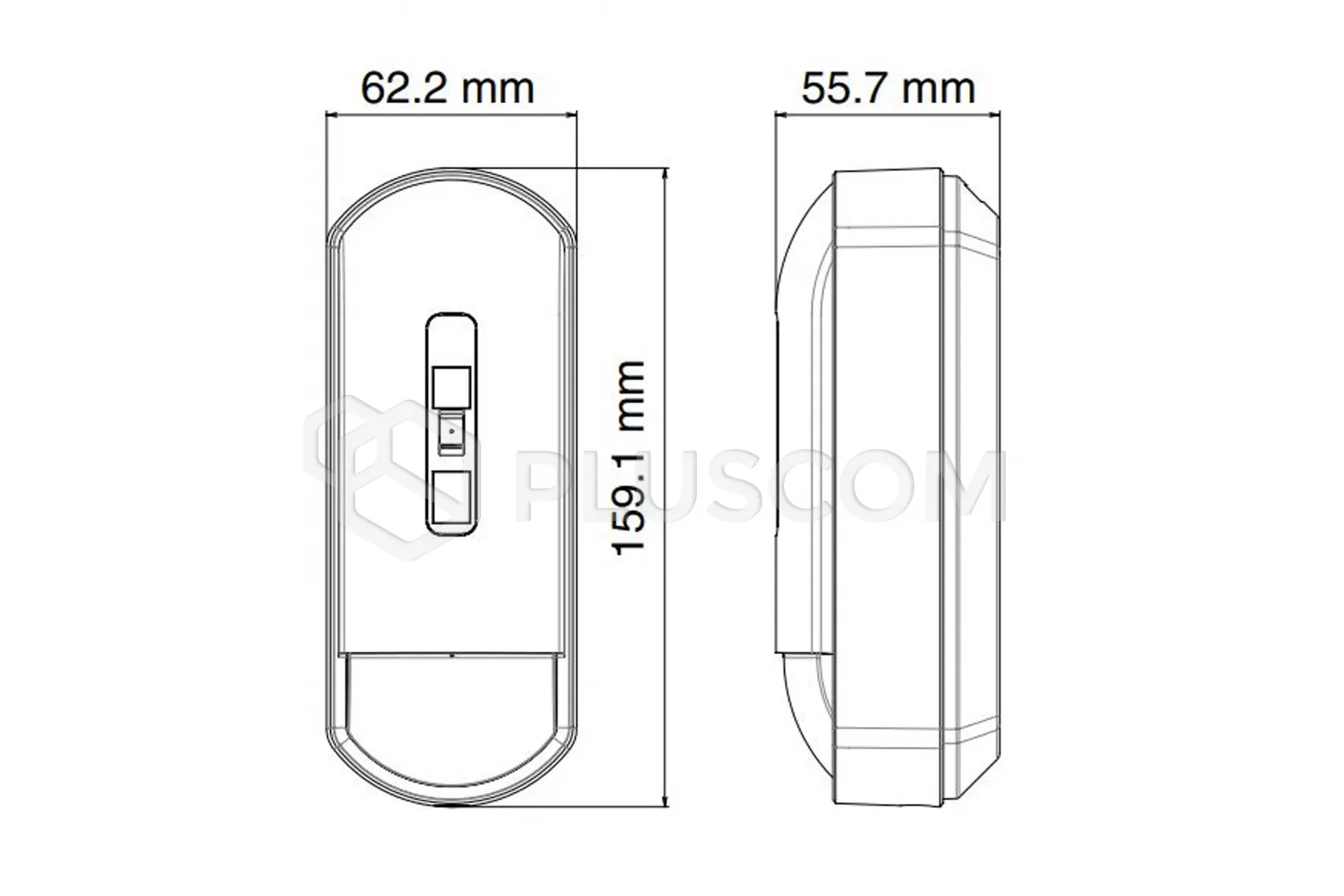

Dimensions:

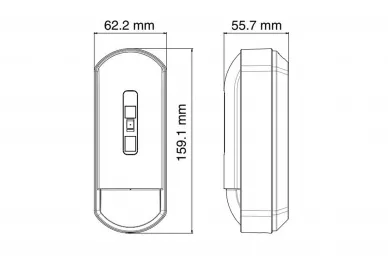

Dimensions:


TECHNICAL DATA:
  • PIR + MW detection method
  • Detection area:
    • Wide mode: 15 m, 85°
    • Narrow mode: 24 m (PIR only)
  • Detection zones Surface: 80 zones
  • Curtain: 20 zones
  • Frequency and power of emitted microwave radiation: 10.525 GHz
  • Installation height 2m ~ 3m
  • Alarm duration 2.0 ±0.5s
  • LED indications
    • Switchable ON/OFF
    • Multiple Colors: Getting Ready
    • Green: Alarm detection and masking
    • Purple: PIR detection
    • Yellow: MW detection and self-test error
    • Red: Low voltage
  • Power supply 9.5V ~ 16V DC
  • Power consumption
    • 16mA norm.
    • 21mA max. at 12V DC
  • Relay output
    • Fault: N.C. 24 V DC 0.1 A max. (resistive load)
    • Alarm: N.C. 24 V DC 0.1 A max. (resistive load)
    • Sabotage: N.C. 24 V DC 0.1 A max. (resistive load) (Active after opening the cover)
  • Remote LED Terminals: Open; off, 0 V; lit
  • Operating temperature -20°C ~ 45°C
  • Temperature Compensation Digital (SMDA)
  • Ambient humidity Max. 95%
  • RF Interference No 10V/m alarm
  • Weight Approx. 200 g
  • Dimensions 62.2x159.1x55.7mm
