Optex FLX-A-AM Indoor PIR with Antimasking

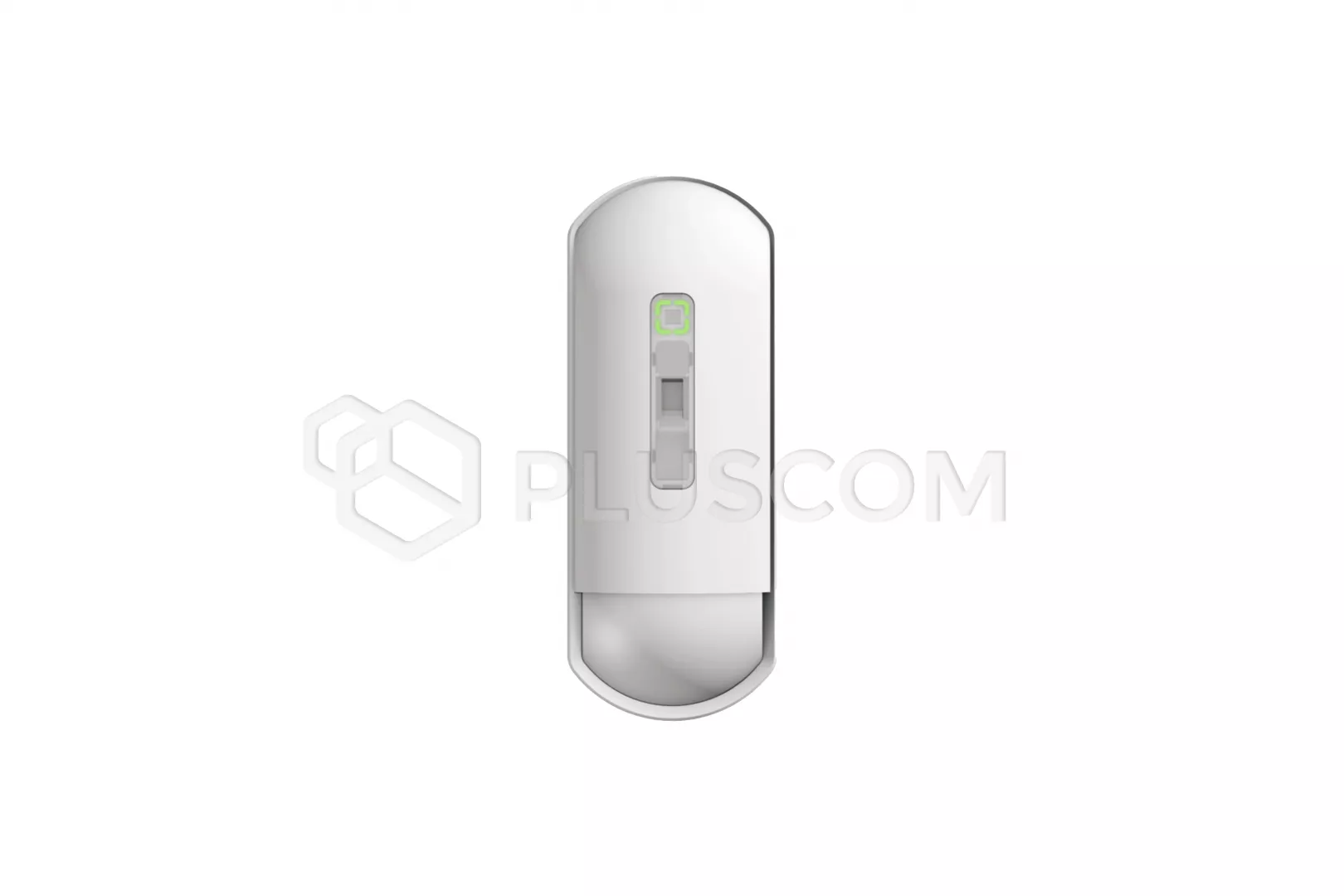

OPTEX FLX-A-AM indoor PIR detector with anti-masking

FLX-A-AM is the latest detector with PIR detection technology anti-masking. It is equipped with a rotatable lens, thanks to which you can use wide and narrow detection modes in one device.
It has 80 detection zones and a range of up to 24 meters, which makes it ideal choice for facilities with a high level of security and demanding requirements advanced solutions.

The light and electromagnetic interference filter patented by OPTEX allows FlipX detectors block RFI and avoid false alarms caused by sunlight.
Setting the sensitivity to "super high" allows you to detect objects located directly under the detector.

FEATURES:

• Grade 3 with anti-masking and rotatable lens
• Surface characteristics: 15 m, 85°
• Curtain characteristics: 24 m
• Ultra high sensitivity "Super High"
• Easy assembly

A unique feature of the detector is the removable terminal strip, which allows for easy and quick wiring and flexible installation height (2-3 m) ideal for commercial buildings with higher ceilings.

TECHNICAL DATA:

• PIR detection method
• Surface characteristics: 15 m, 85°
• Curtain characteristics: 24 m
• Detection zones Surface: 80 zones
• Curtain: 20 zones
• Installation height 2m ~ 3m
• Alarm duration 2.0 ±0.5s
• LED indications
• • Switchable ON/OFF
  • Multiple Colors: Getting Ready
  • Green: Alarm detection and masking
  • Yellow: Self-test error
  • Red: Low voltage
• Power supply 9.5V ~ 16V DC
• Power consumption
• • 12mA norm.
  • 16mA max. at 12V DC
• Relay output
• • Fault: N.C. 24 V DC 0.1 A max. (resistive load)
  • Alarm: N.C. 24 V DC 0.1 A max. (resistive load)
  • Sabotage: N.C. 24 V DC 0.1 A max. (resistive load) (Active after opening the cover)
• Remote LED Terminals: Open; off, 0 V; lit
• Operating temperature -20°C ~ 50°C
• Temperature Compensation Digital (SMDA)
• Ambient humidity Max. 95%
• RF Interference No 10V/m alarm
• Weight Approx. 180 g

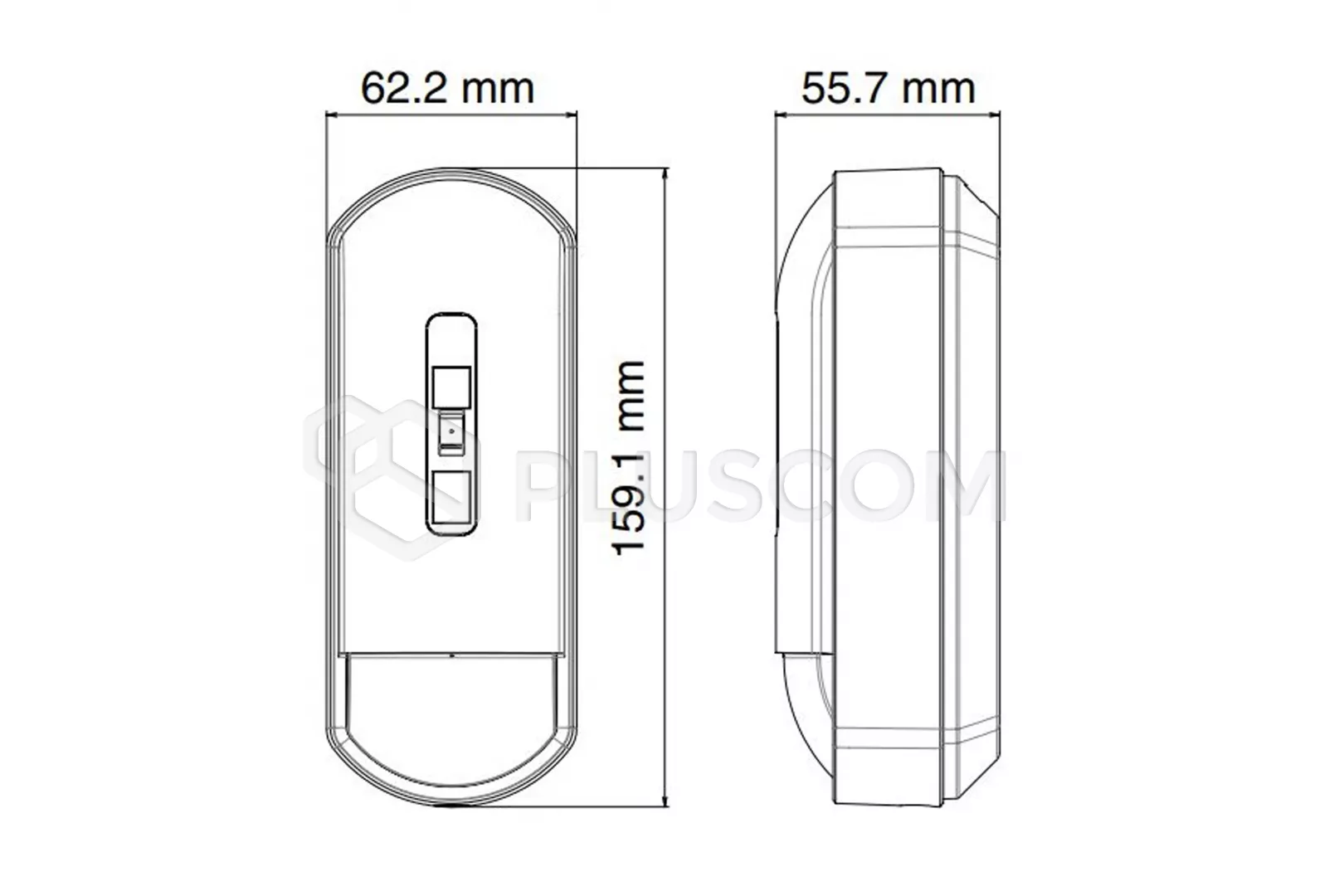

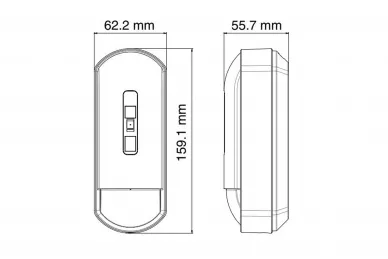

• Dimensions 62.2x159.1x55.7mm
