Optex EE1216TW EE1216 with cable for AX-UBB

139,74 EUR including 20.00% VAT
Product code: #14389
Manufacturer: Optex
  • For installation in a column
  • 2 inputs
  • Cable for AX-UBB
  • RF frequency range: 868-869MHz
  • Anti-sabotage protection
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

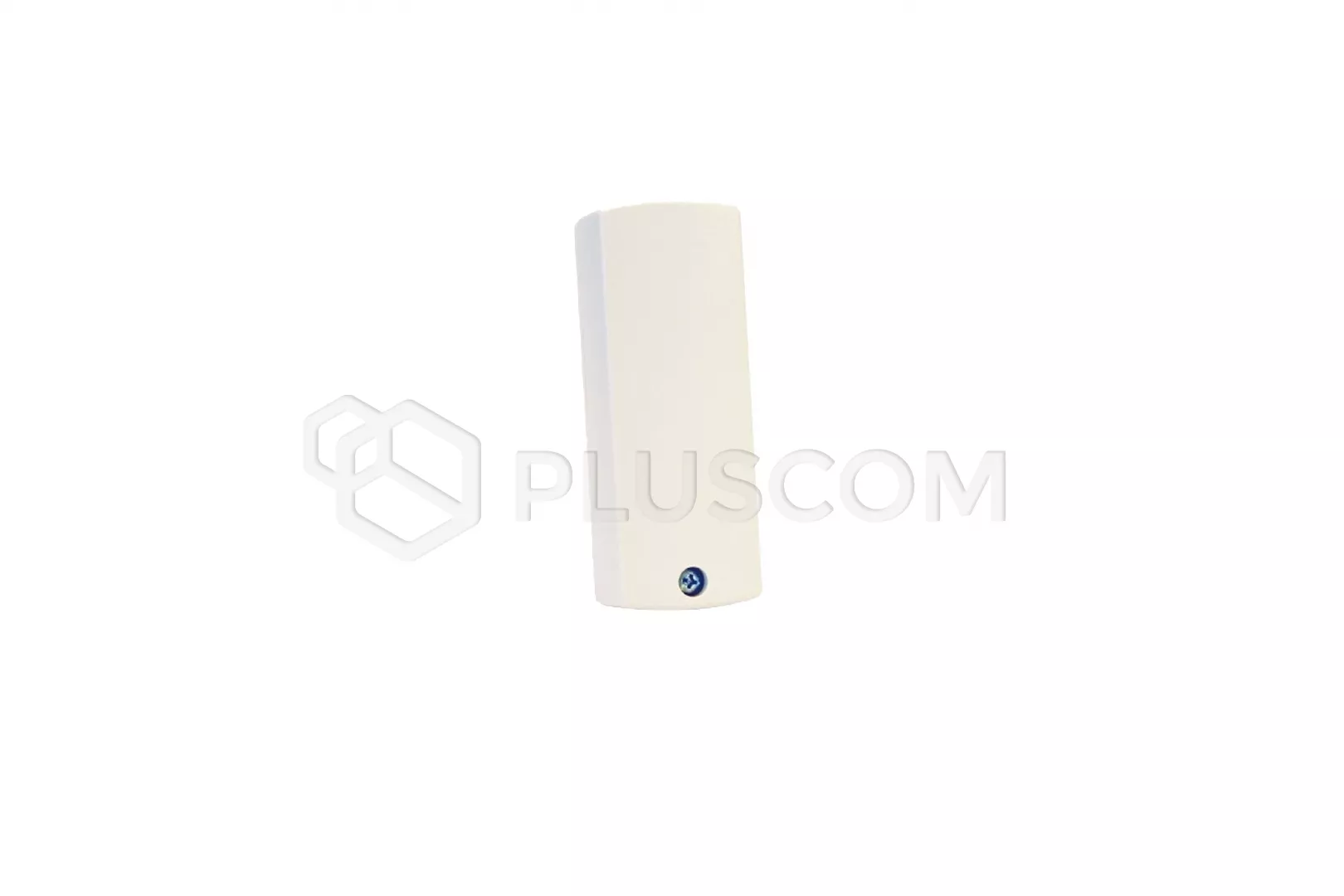

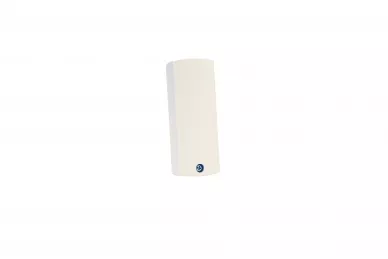

OPTEX EE1216TW wireless transmitter with cable for AX-UBB


EE1216TW is a universal transmitter with two inputs and protection anti-tamper included with a cable for AX-UBB.
The transmitter works with traditional door opening detectors, shock detectors, alarm buttons, pressure mats, temperature sensors, status relays, photoelectronic beams and other digital output devices.
It is designed for use with almost any standard contact or sensor and includes two inputs for maximum flexibility. Is Fully supervised and includes anti-tear off switch which notifies the system when a transmitter is removed from the surface, on which it was installed.
The transmitter is also intended for installation in OPTEX columns and detectors.

TECHNICAL DATA
  • External contacts: N/O or N/C
  • Distance of external contact from the transmitter: max. 3m
  • Power supply: 3V DC, 60 mA
  • Idle current: >10 uA
  • Low battery detection: 2.4V DC
  • RF frequency range: 868–869 MH
  • Battery type (BAT604): Panasonic CR123A or equivalent
  • Typical battery life: 3-5 years
  • Tamper protection: Type B, fixed/mounted
  • Operating environment: -10°C to 60°C, humidity relative up to 90% without condensate
  • Dimensions: 10.5 × 4.5 × 2.3 cm
  • Weight: 86 g
