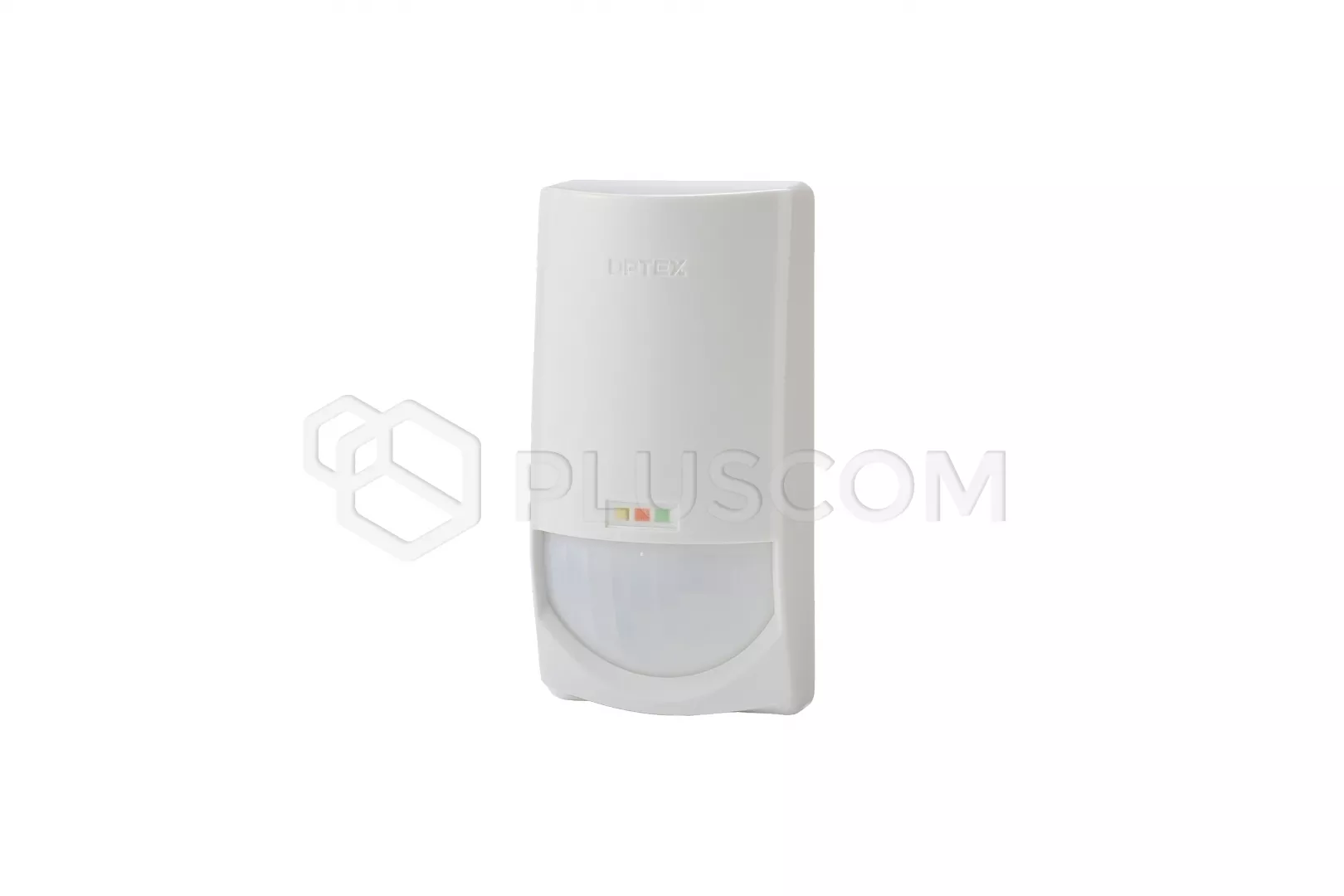

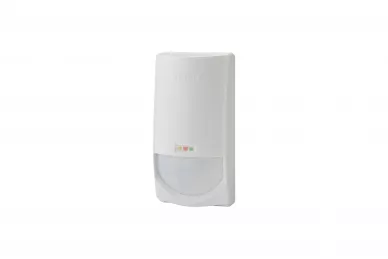

Optex CDX-NAM Long range indoor curtain detector

55,60 EUR including 22.00% VAT
Product code: #14321
Manufacturer: Optex
  • PIR detector, range 24x2m
  • Anti-masking function
  • 20 detection zones
  • Immunity to EMI and RFI interference
  • Pet tolerance
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

OPTEX CDX-NAM Long range indoor curtain detector with anti-masking


The CDX series features 20 detection dense zones. In the detection coverage, 4 or more zones must be crossed to distinguish between human and small animal detection. In addition, CDX series features the newly developed digital MPU "CORE PLATFORM" for reliable and accurate performance.

The CDX series uses AIR technology to detect masking. To realize a stable performance, the CDX series differentiate between true masking and other masking caused by environmental changes such as dust/dirt adhesion, temperature changes and direct light by optimizing it's sensitivity.

Key Features
  • Microwave module
  • Plug-in EOL unit (option)
  • Digital QUAD zone logic
  • Active IR Digital Anti-Masking
SPECIFICATION
  • Detection method: passive infrared
  • Standards met: EN50131-2-2 (Grade 3)
  • Anti-mask technology: digitally controlled active infrared
  • Detection range: 24x2m
  • Number of zones: 20 zones
  • Power consumption: 17 mA (normal) / 20mA (max) at 12 Vdc
  • Alarm output: NC 28V DC 0.2 A max.
  • Trouble output: NC 28V DC 0.2 A max.
  • Working temperature: -10°C~50°C
  • Noise immunity: No 10V / m alarm
  • Mounting height: 1.8 - 2.4 m
  • Time: 180 g
  • Dimensions: 70x52.3x140 mm
Download
Datasheet 2.47 MB
Manual 3.47 MB
