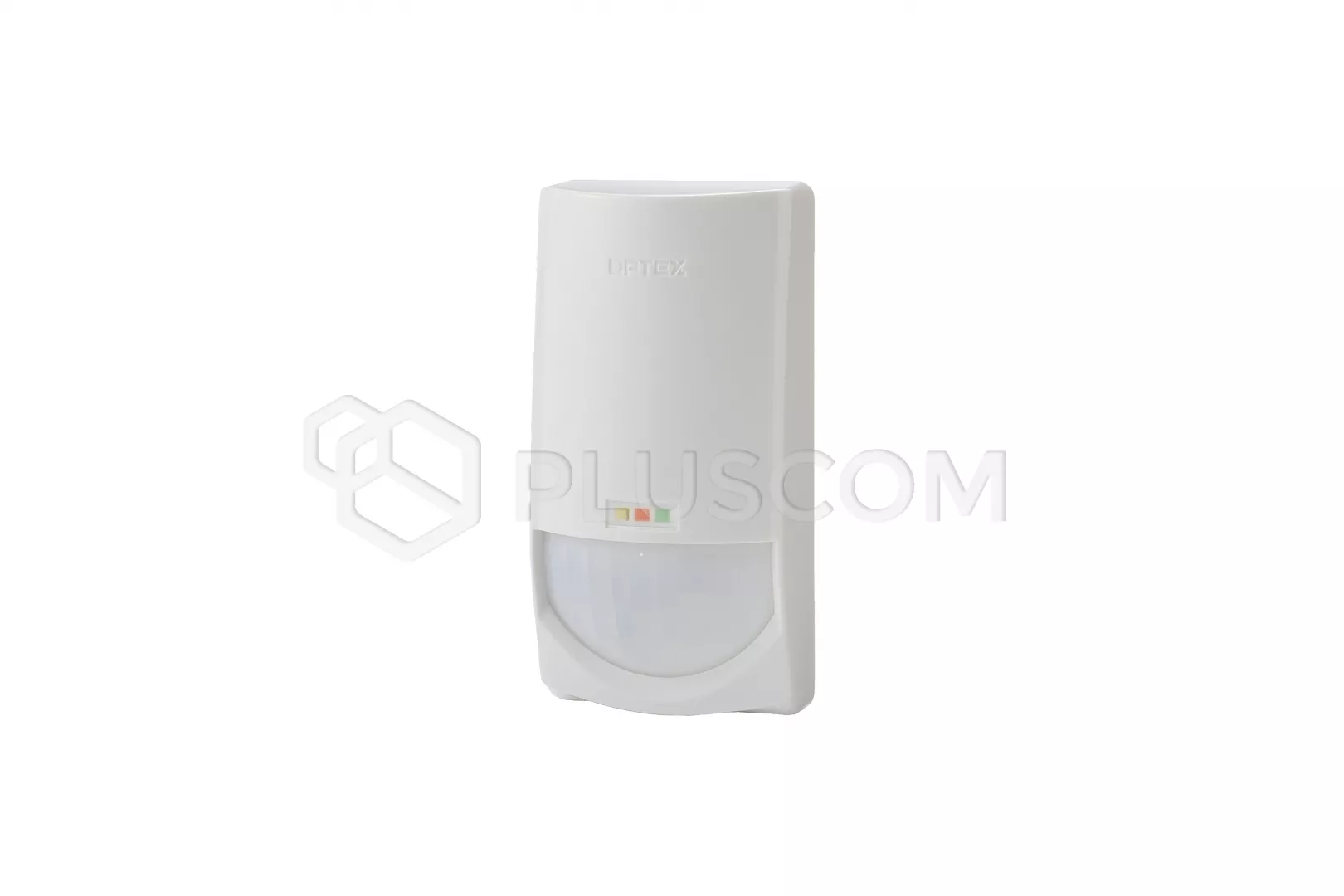

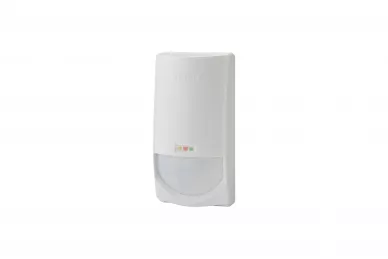

Optex CDX-DAM-X5 Dual PIR and MW detector with anti-masking

71,61 EUR including 23.00% VAT
Product code: #14314
Manufacturer: Optex
  • PIR and MW detector, range 15m
  • Anti-masking function
  • 82 detection zones
  • Fregrency: 10.525 GHz
  • Pet tolerance
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

OPTEX CDX-DAM-X5 Dual PIR and MW detector with anti-masking


The CDX-DAM is a 15x15m , 85 degree indoor dual tech sensor featuring a dense optical configuration creating 82 individual detection zones. With an efficient digital QUAD zone logic, 4 or more zones must be crossed to generate an alarm, helping to create truly accurate and reliable detection. The CDX-DAM also features Double Conductive Shielding, as a result visible light disturbances and RFI can easily be blocked.

Key Features
  • Double- conductive Shielding
  • Digital AIR Anti-Masking
  • Sharply-directed MW Technology
  • Plug in EOL unit option
SPECIFICATION
  • Detection method: passive infrared + MW
  • Standards met: EN50131-2-2 (Grade 3)
  • Anti-mask technology: digitally controlled active infrared
  • Detection range: 15x15m
  • Number of zones: 82 zones
  • Detection angle: 85 °
  • Power consumption: 19 mA (normal) / 26mA (max) at 12 Vdc
  • Alarm output: NC 28V DC 0.2 A max.
  • Trouble output: NC 28V DC 0.2 A max.
  • Working temperature: -10°C~50°C
  • Humidity: 95% max.
  • Noise immunity: No 10V / m alarm
  • Mounting height: 1.8 - 2.4 m
  • Time: 180 g
  • Dimensions: 70x52.3x140 mm
