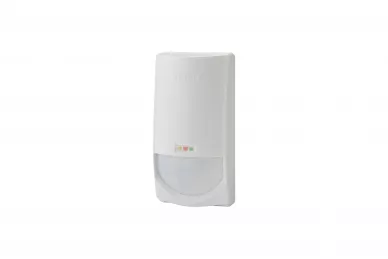

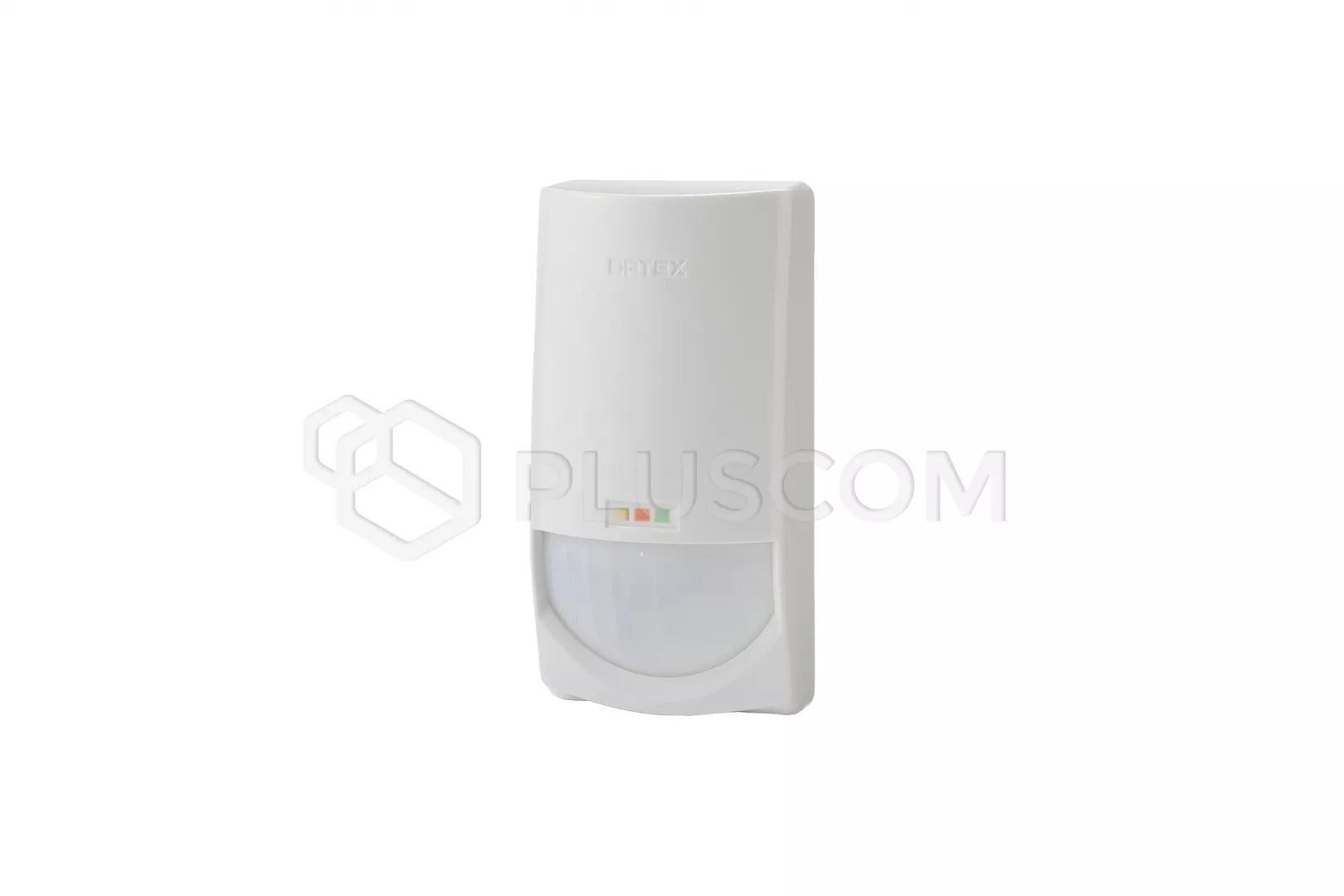

Optex CDX-AM Passive infrared PIR detector with anti-masking

OPTEX CDX-AM Passive infrared PIR detector with anti-masking

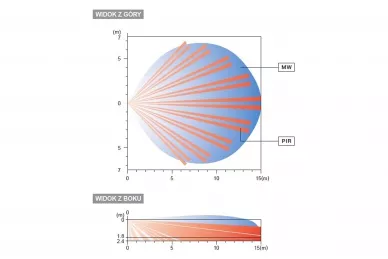

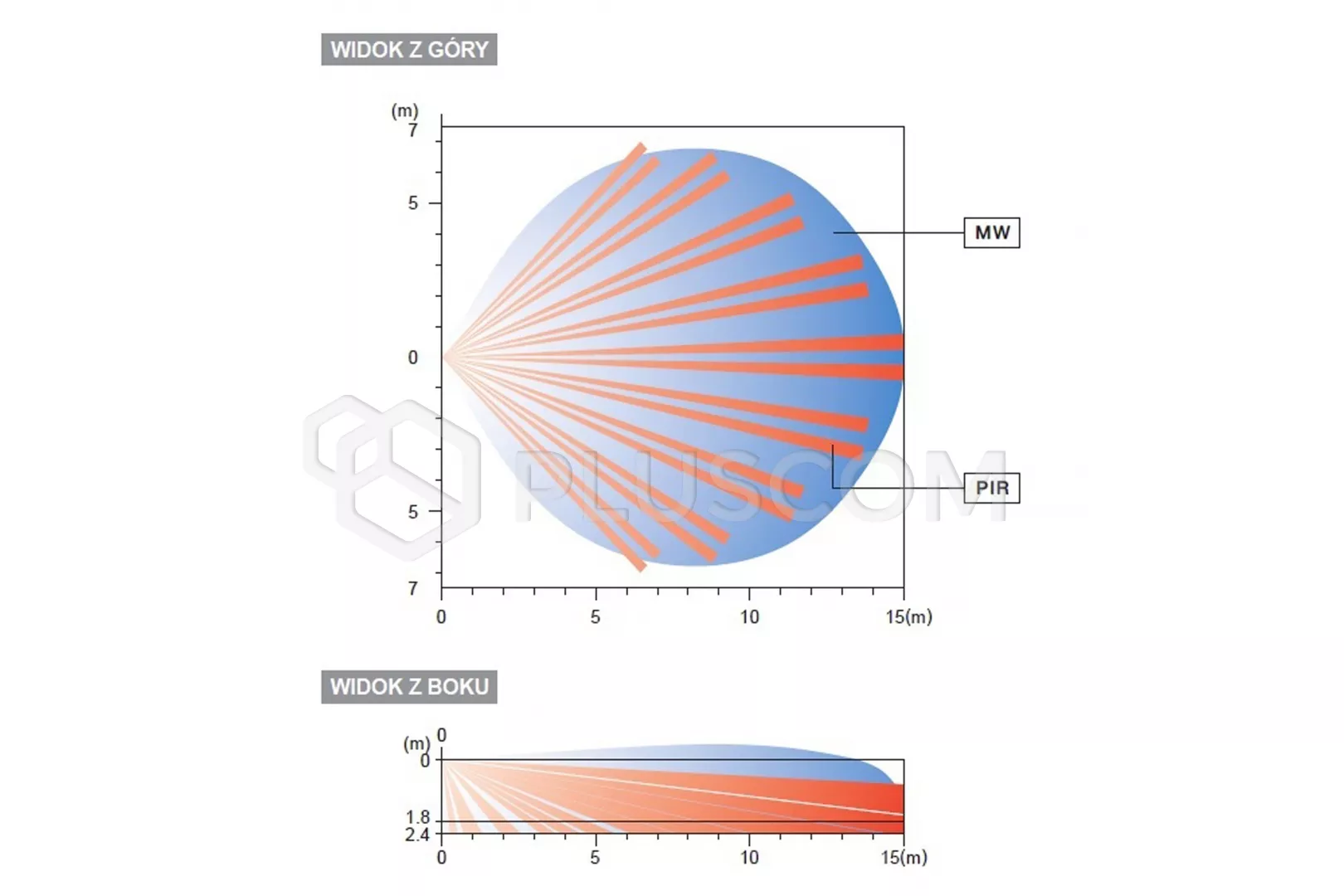

The CDX series features 82 detection dense zones. In the detection coverage, 4 or more zones must be crossed to distinguish between human and small animal detection. In addition, CDX series features the newly developed digital MPU "CORE PLATFORM" for reliable and accurate performance.

The CDX series uses AIR technology to detect masking. To realize a stable performance, the CDX series differentiate between true masking and other masking caused by environmental changes such as dust/dirt adhesion, temperature changes and direct light by optimizing it's sensitivity.

Key Features

• Double- conductive Shielding
• Digital AIR Anti-Masking
• Interchangeable Main Unit
• Plug in EOL unit option

SPECIFICATION

• Detection method: passive infrared
• Standards met: EN50131-2-2 (Grade 3)
• Anti-mask technology: digitally controlled active infrared
• Detection range: 15x15m
• Number of zones: 82 zones
• Detection angle: 85 °
• Power consumption: 17 mA (normal) / 20mA (max) at 12 Vdc
• Alarm output: NC 28V DC 0.2 A max.
• Trouble output: NC 28V DC 0.2 A max.
• Working temperature: -10°C~50°C
• Humidity: 95% max.
• Noise immunity: No 10V / m alarm
• Mounting height: 1.8 - 2.4 m
• Time: 180 g
• Dimensions: 70x52.3x140 mm
