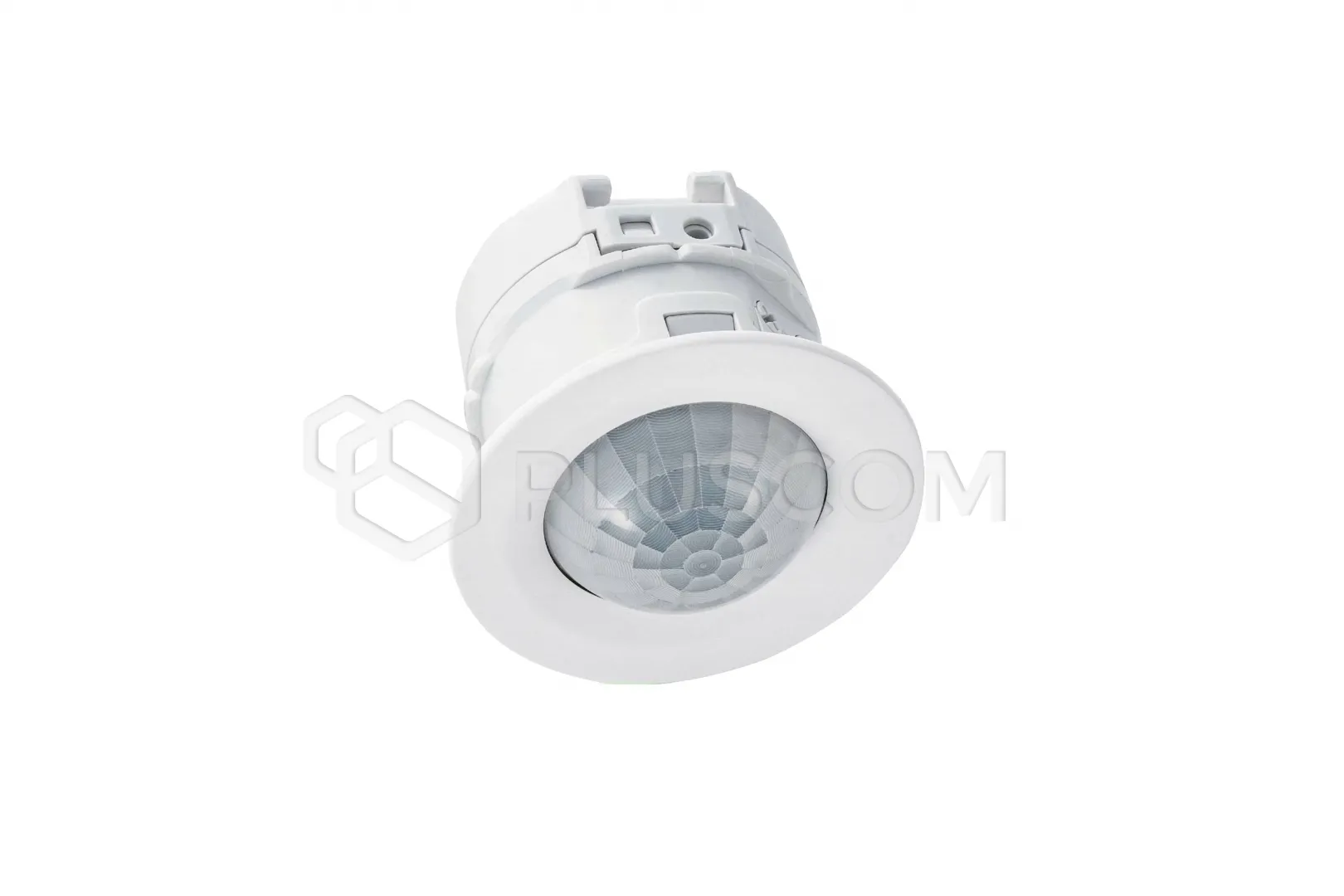

OPTEX AP-360BR(C) Recessed ceiling-mount PIR motion detector

52,87 EUR including 23.00% VAT
Product code: #45684
Manufacturer: Optex
  • Ceiling-mounted detector with a 360° detection range
  • Adjustable detection sensitivity
  • For lighting control and home/building automation
  • Option to activate the battery-saving timer
  • Power supply: 2.7 – 3.6 V DC (CR123A battery)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,46 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

OPTEX AP-360B(C) Recessed ceiling-mount motion detector for home/building automation with 360° detection range


The OPTEX AP-360B(C) is a professional passive infrared (PIR) detector designed for recessed ceiling mounting. Thanks to its unique design, it sits flush with the suspended ceiling surface, ensuring an aesthetically pleasing interior while maintaining superior detection performance.
It features a 360° volumetric detection area, enabling effective monitoring of the entire room without blind spots. It is suitable for use in both intrusion detection systems and building automation—including the activation of escalators, air conditioning, CCTV, and sound systems.
It is an ideal solution for protecting offices, corridors, living areas, and commercial facilities where traditional wall-mounted detectors might detract from the room's design.

The AP-360BR(C) offers an option to activate a battery-saving timer. The user can choose between a default setting of 120 seconds and a 5-second setting, thereby increasing the device's energy efficiency.

FEATURES:
  • 360° Detection: a spherical lens ensures full coverage of the area surrounding the detector
  • Discreet Design: flush mounting allows the device to sit flush with the ceiling surface, blending unobtrusively into the surroundings
  • Sensitivity Adjustment: three sensitivity levels (low, medium, high) allow the device to be tailored to specific room conditions
  • Digital Signal Processing: advanced signal analysis algorithms minimize the risk of false alarms
  • Dual-Purpose Use: built-in outputs enable integration with alarm control panels and home automation controllers

TECHNICAL DATA:

  • Detection method: Passive Infrared (PIR)
  • Detection range: Up to 6-meter radius and 360° coverage
  • Diameter: ø6 m (when mounted at a maximum height of 4.5 m)
  • Mounting height: 2.5 m to 4.5 m
  • Detectable movement speed: 0.3 to 3.0 m/s
  • Power supply: 2.7 – 3.6 V DC (CR123A battery)
  • Current consumption:
    • Standby: 10μA
    • Maximum: 4 mA (at 3 V DC)
  • Alarm output: Relay N.O./N.C., 3.6V DC 10mA max.
  • Tamper output: N.C., 28 V DC, max. 100 mA (contact opens upon housing removal)
  • Operating temperature: -20°C to +50°C
  • Dimensions:
    • Without mounting box: ø52 x 42.5 mm
    • With installation box / frame: 86 x 86 x 42.5 mm
  • Mounting hole: ø45 mm
  • Weight: 50 g
