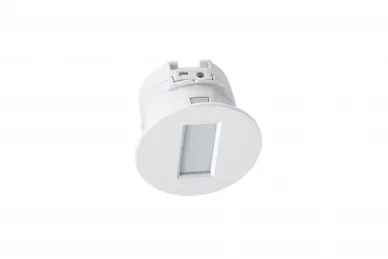

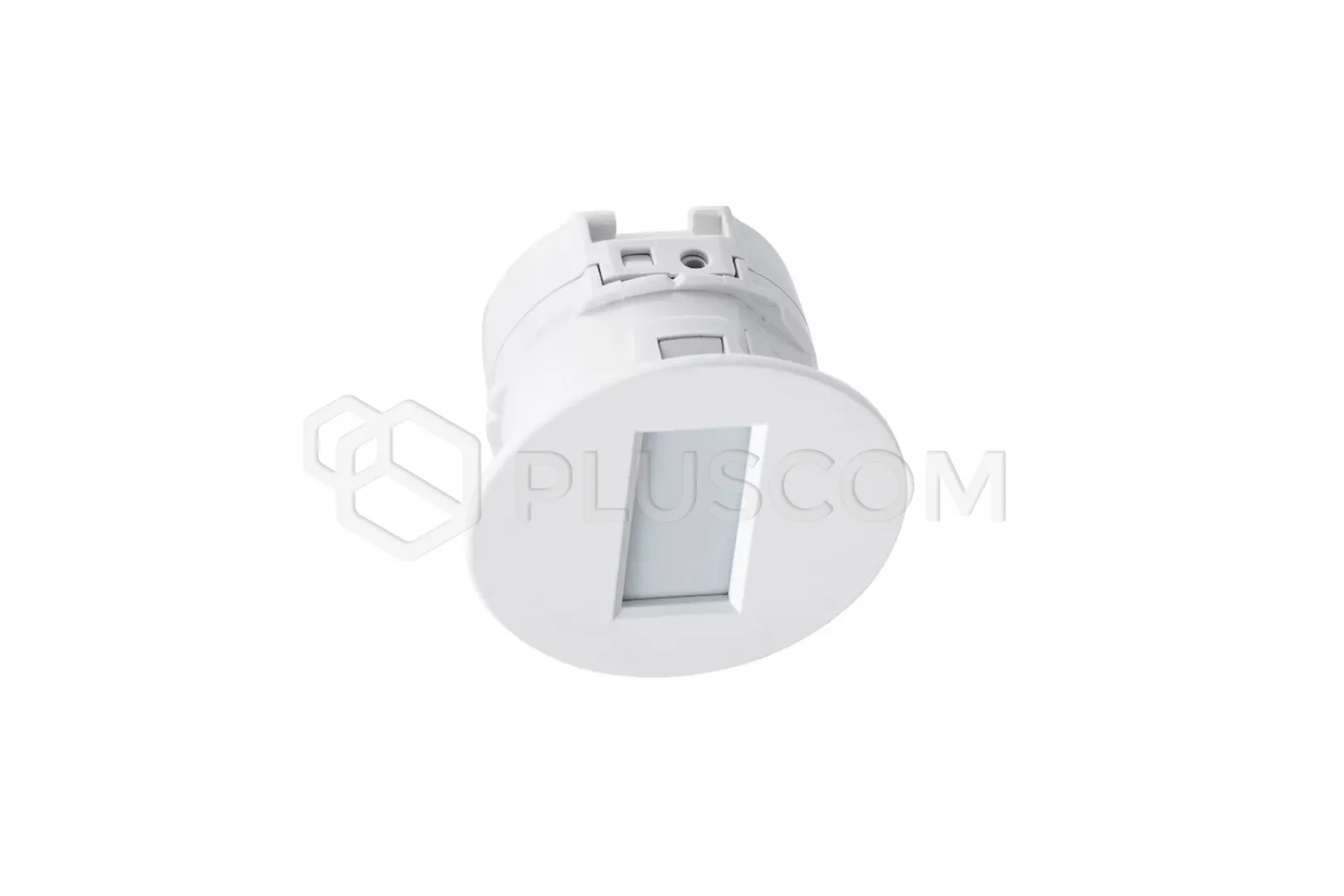

OPTEX AP-20NB(C) Recessed PIR curtain detector

47,58 EUR including 23.00% VAT
Product code: #45685
Manufacturer: Optex
  • Wall or ceiling mounting
  • 6-meter detection zones
  • Universal mounting height ranging from 2.5 m to 4.5 m
  • Adjustable detection sensitivity
  • Power supply: 9.5 – 16 V DC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,46 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

OPTEX AP-20NB(C) Recessed PIR Curtain Motion Detector for Home/Building Automation


The OPTEX AP-20NB(C) is an advanced, wired PIR detector with a curtain-style detection pattern, designed for use in alarm systems and building automation (Smart Home) applications.
Thanks to its unique design intended for flush (recessed) mounting, the detector blends almost seamlessly into the ceiling or wall, ensuring the highest level of security without compromising the interior aesthetics.

KEY FEATURES:
  • Inconspicuous protection (Flush mounting): With a diameter of just 52 mm, the detector sits perfectly flush with the ceiling or wall surface. Optional mounting in a standard type 86 installation box is also possible
  • Precise curtain detection (Range up to 6 m): The device creates a narrow detection barrier, making it an ideal solution for securing areas along windows, entrance doors, balcony doors, and corridors
  • Versatile mounting (Vertical / Horizontal):
    • Ceiling mounting: Creates a vertical curtain measuring 6.0 x 1.0 m (at a mounting height of up to 4.5 m)
    • Wall mounting: Provides a horizontal detection plane, ideal for protecting approaches to windows, for example
  • Flexible sensitivity configuration: Three-level sensitivity adjustment (low / medium / high) allows the device to be adapted to room conditions, minimizing the risk of false alarms
  • Versatile application: NO/NC relay outputs allow for easy integration of the detector with both alarm control panels and home automation controllers (e.g., for automatically turning on lights upon entering a corridor)

TECHNICAL SPECIFICATIONS

  • Detection method: Digital PIR (Passive Infrared)
  • Detection range:
    • Ceiling - 6.0 m × 1.0 m (at a height of 4.5 m)
    • Wall - 6.0 m × 4.5 m (at a height of 1.5 m)
  • Mounting height: 2.5 m to 4.5 m
  • Supply voltage: 9.5 – 16 V DC
  • Current consumption: 11 mA (standby) / 13 mA (max at 12 V DC)
  • Alarm output: NO/NC relay (28 V DC, max 200 mA)
  • Tamper protection: NC output (28 V DC, max 100 mA) – housing opening
  • Sensitivity adjustment: 3 levels (Low / Medium / High)
  • Operating temperature: -20°C to +50°C
  • Dimensions:
    • Diameter: Ø52 mm
    • Depth: 35.5 mm
  • Weight: approx. 50 g
  • Mounting location: indoor
Download
User manual 0.99 MB
