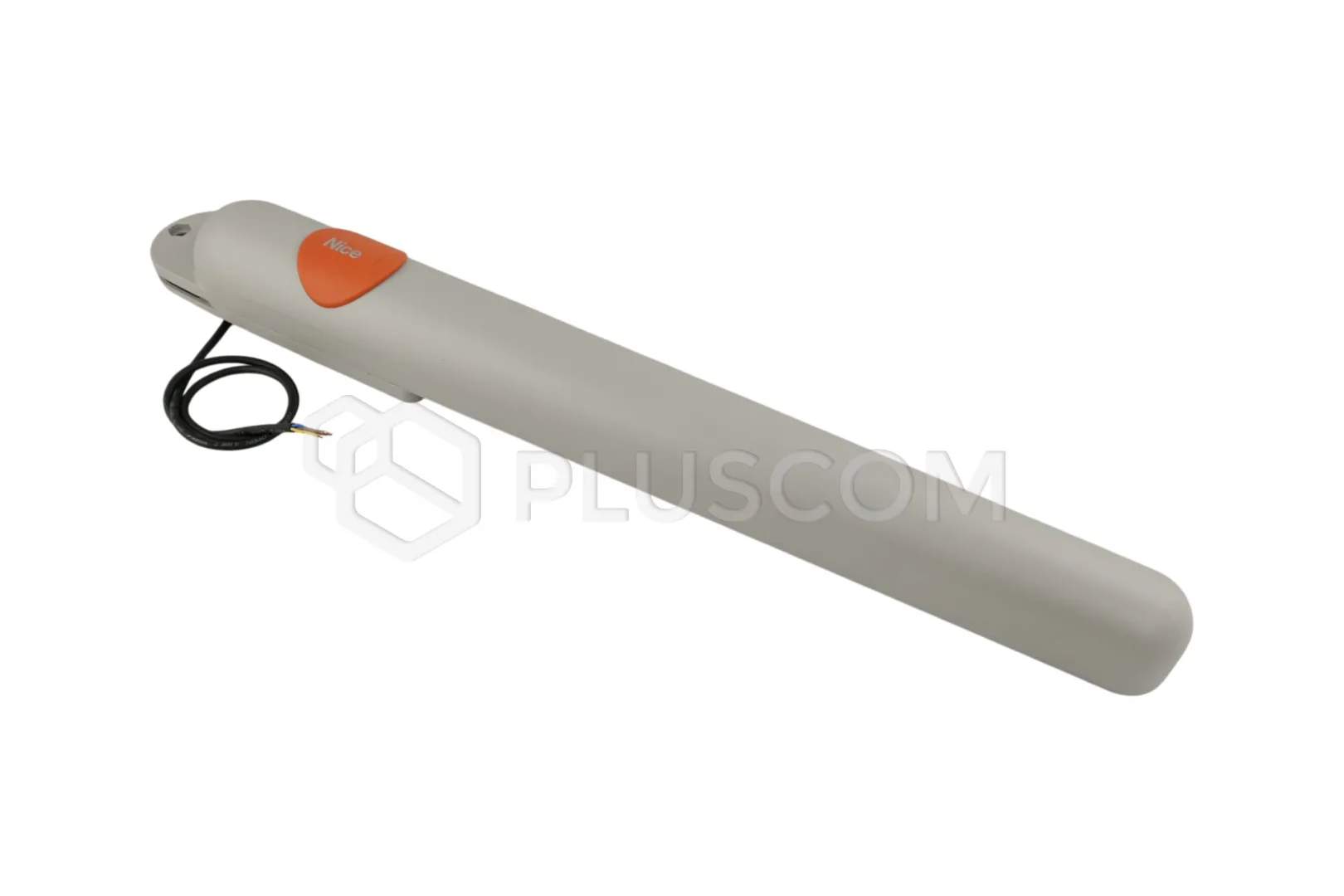

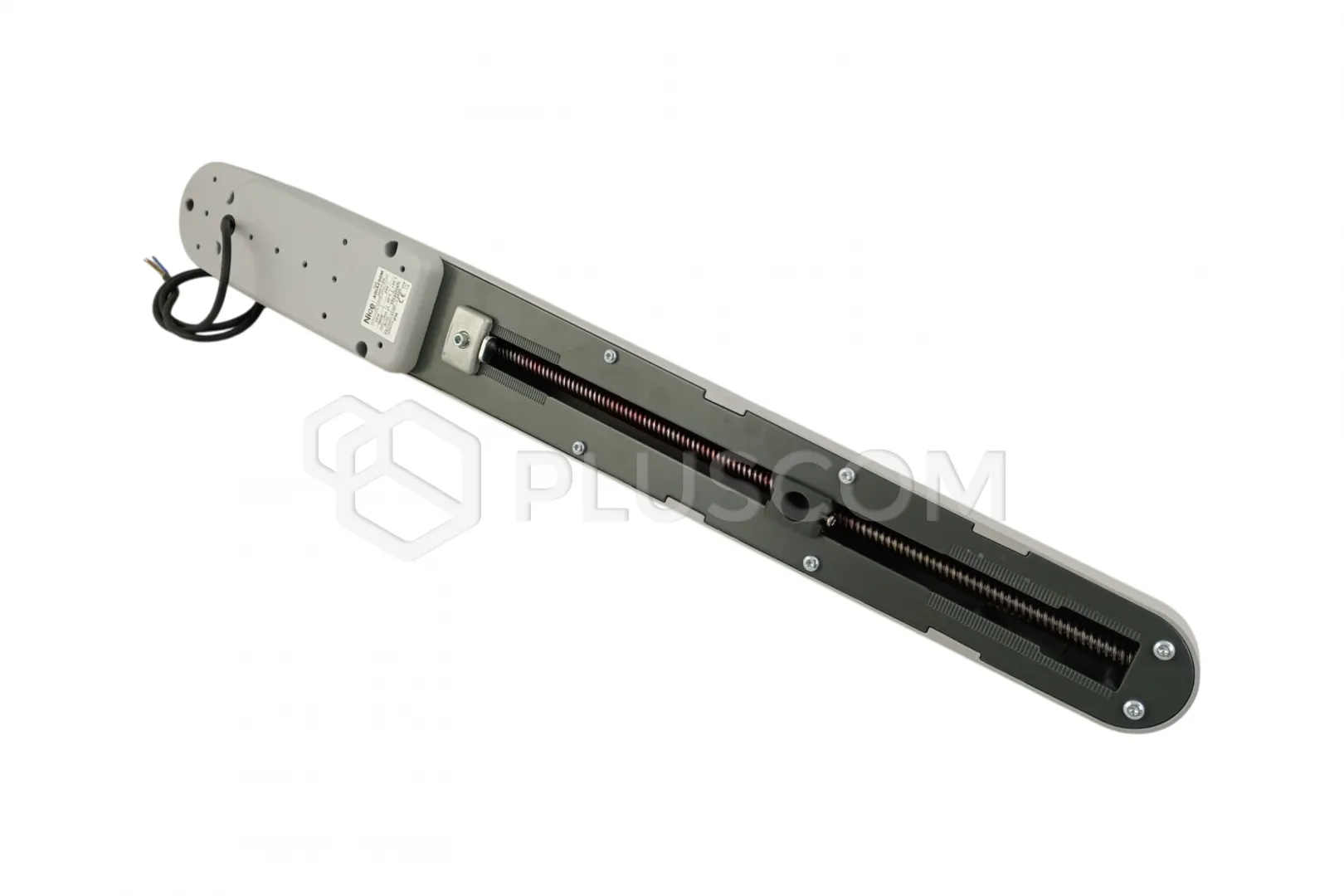

NiceHome Aria 200 actuator 24V, leaf up to 2.2m

Product code: #40528
  • Max. leaf length: 2.2 m
  • Max. wing weight: 250kg
  • Engine power supply: 24V
  • Max. work intensity: 15 cycles/hour.
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Photocell NiceHome PH200 NiceHome ECCO5BO 4-channel black and orange remote control NiceHome ECCO5WO 4-channel white and orange remote control NiceHome FL200 signal lamp with built-in antenna NiceHOme CLB202 R10 - complete control unit (with casing and transformer) for ARIA200/400 R10

NiceHome Aria 200 24V actuator for gates with a maximum leaf length of 2.2 m


A actuator for swing gates, for gates with a maximum length of 2.2 m (with a max. weight of 150 kg) and a weight of up to 250 kg (with a max. length of 1.6 m).

Fast: Opens or closes the gate in 14 seconds. Possibility of equipping the set with an emergency battery, so that you can open or close the gate in the event of a power failure. End stops included.

Easy installation: Trouble-free installation thanks to the use of Bus technology and new mounting brackets.

Practical: The actuator can be disengaged from above

Universal: Mounting parameters adapted to the needs of most users.

User-friendly: Full compatibility with the SoleKit solar power system and the possibility of using wireless accessories.

Technical data:

  • Motor power supply: 24 V DC
  • Maximum starting torque: 1230 Nm
  • Nominal torque: 300 Nm
  • No-load speed: 20 mm/s
  • Nominal load speed: 17 mm/s
  • Maximum work intensity: 15 cycles/hour
  • Maximum continuous work time: 4 minutes 4 minutes
  • Maximum power consumption: 24 W
  • Operating temperature: -20°C ... +50°C
  • Protection class: IP44
  • Dimensions: 846 x 98 x 90 mm
  • Weight: 5kg
Download
User manual 11.57 MB
