Nice WINGO5KLTR30 WINGO FLOR Set

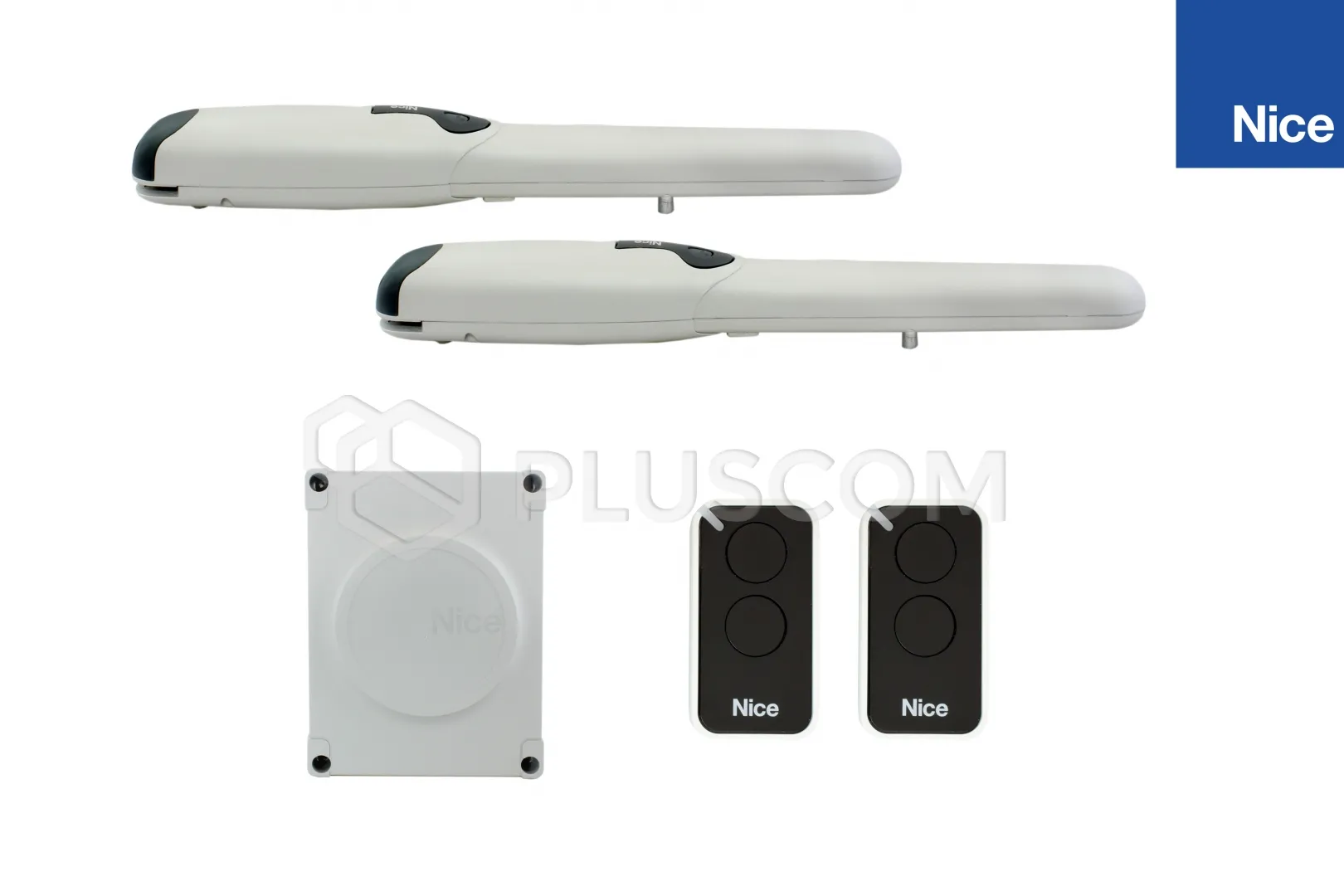

Nice WINGO5KLTR30 WINGO FLOR - set for double-leaf gates with a leaf length of up to 3.5m and a weight of up to 200kg

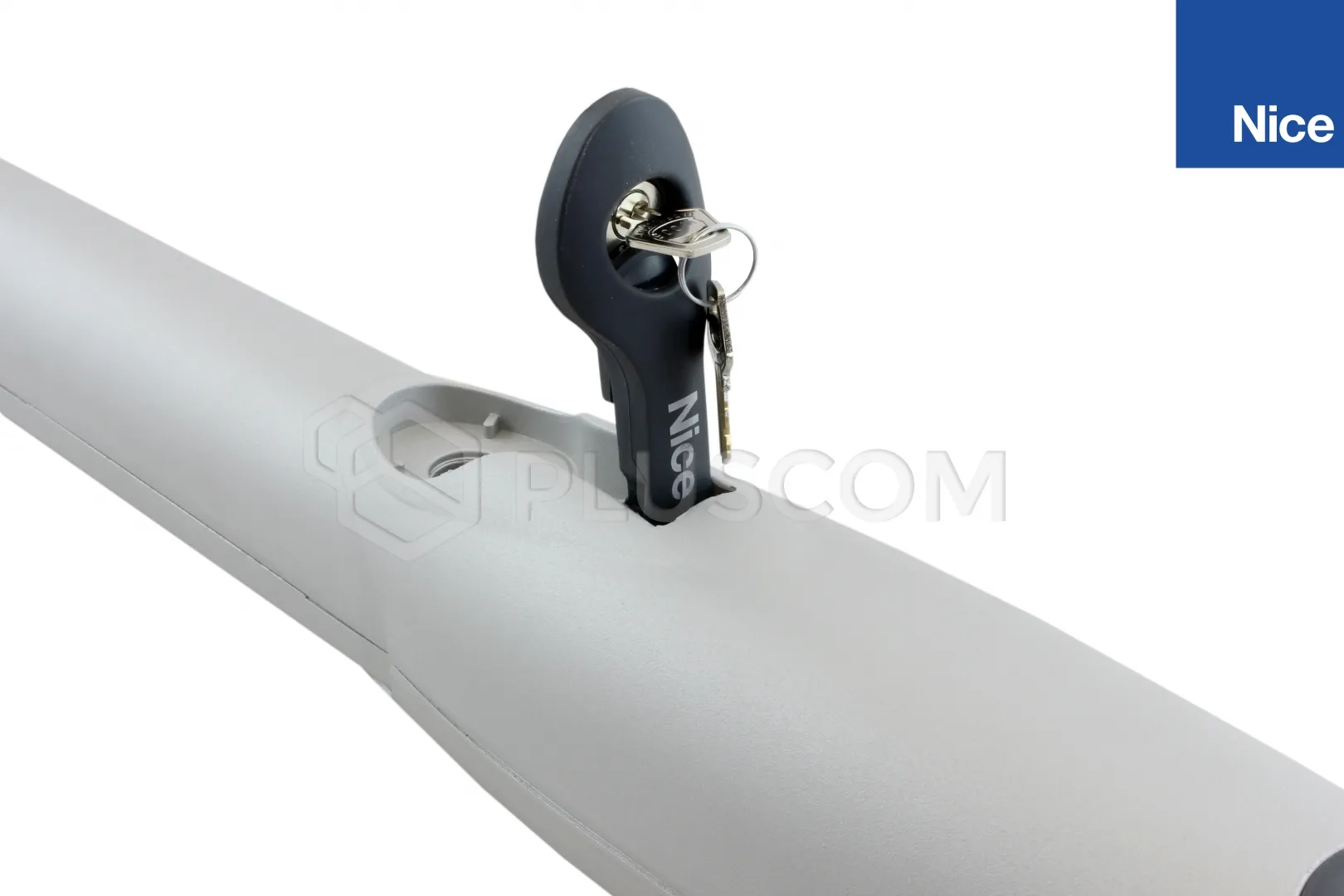

The WINGO5000 is a self-locking actuator with a limit switch during opening. After operation, the gate is locked and cannot be opened manually, eliminating the need for additional locks. In the event of a power outage, a Nice triangular key lock is used for emergency release. Turning the key 90° clockwise releases the lock, allowing manual opening of the gate. Turning the key counterclockwise further locks the drive.

The heart of the set is the proven and reliable MC800 control unit with the latest specifications provided by the manufacturer for a given quarter (a firmware-optimized version), maintaining identical connection diagrams, electrical parameters, and full functionality of the BlueBUS system and Yubii device support.
The latest version of the electronics features updated firmware, improved overload characteristics (amperometrics), and improved native compatibility with new accessories from the Nice ecosystem (e.g., OXIBD receivers and Smart Home systems).

INTI2 is a 2-channel remote control compatible with other remote controls from the Nice range, such as One and Flor, but is not compatible with the Smilo system.
Transmission security is ensured by a 72-bit dynamically changing code; each transmission is different. Only the control unit into which the transmitter has been programmed "knows" what code will be transmitted.
A practical and elegant remote control with an LED indicator on the remote that indicates signal transmission. A weak or absent LED signal indicates the need to replace the batteries.

TECHNICAL DATA:

• motor power supply: 230V
• current load: max 1,5A
• power consumption: 200W

• speed: 0,016m/s
• strength: max 1700N
• intensity work: 30 cycles/h


• operating temperature: -20°C...+ 50°C
• degree of protection: IP44
• dimensiosn: 920x98x95mm
• weight: 6kg
