Nice WINGO 3524HS Base set

1039,30 EUR including 19.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #22813
Manufacturer: Nice
  • maximum leaf width 3m, maximum leaf weight 200kg
  • magnetic encoder and limit switch when opening and closing
  • 24V AC motors
  • auto programing, works with Oview, BLUEBUS intput
  • SM, OXIBD radio connector
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ELDC LED flashing signal light 12/24V Photocell Nice EPMB ERA Medium BLUEBUS Nice ON3EBD 3-channel remote two-way Nice IT4WIFI BusT4 interface - Wi-Fi Nice OVIEW/A R01 Display programmer +IBT4N interface Nice OXIBD 4-channels receiver two-way Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal Nice PS324 24V battery with integrated battery charger Nice Core WiFi-radio interface

Nice WINGO 3524HS Electromechanical gear motor 24V witch MC824HR10 control panel HI-SPEED version

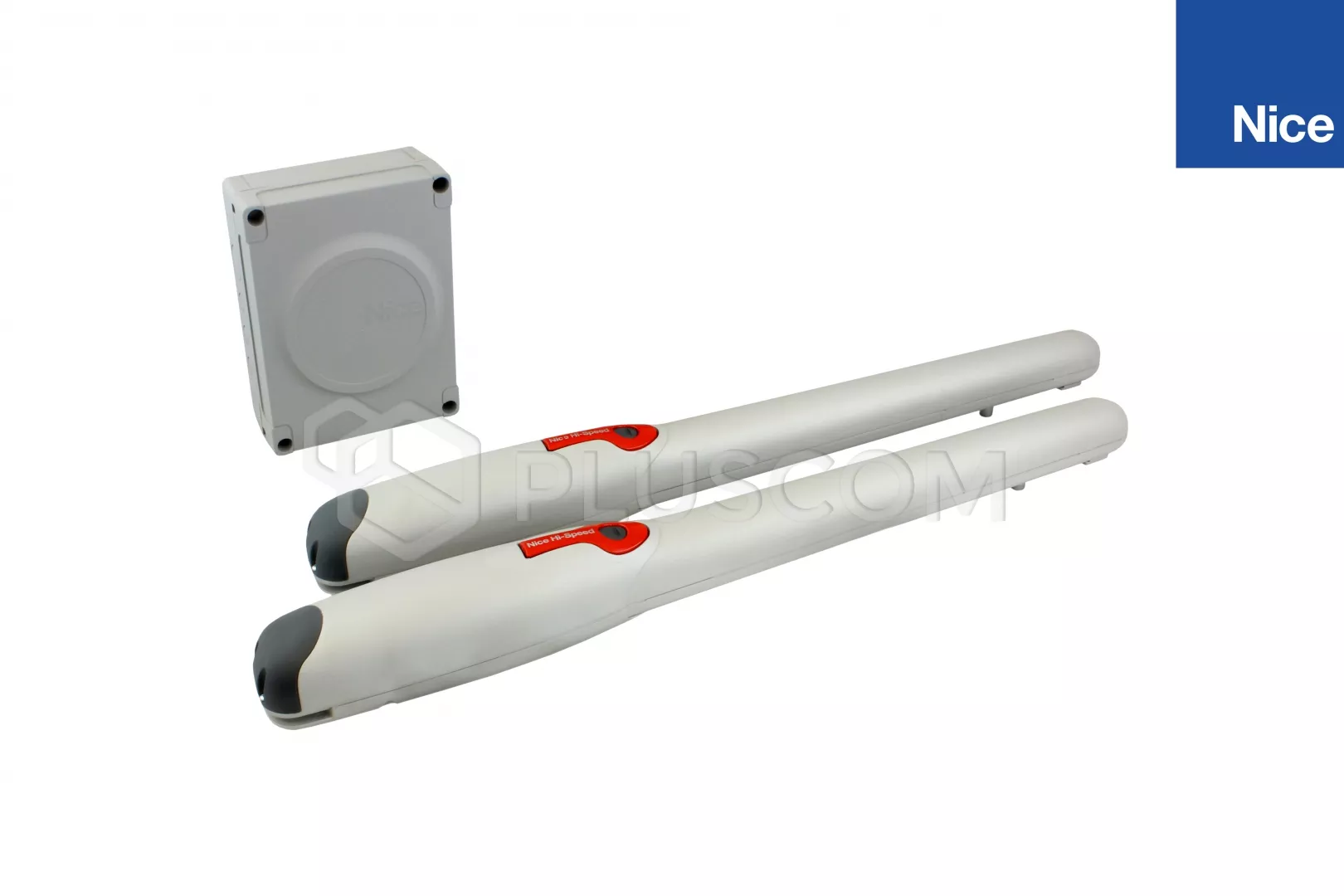

KIT CONTENTS:
Nice WINGO3524HS Electromechanical gear motor witch MC824HR10 control panel

Nice WINGO3524HS Electromechanical gear motor witch MC824HR10 control panel

Nice WINGO 3524HS is one of the most popular swing gate motors of Nice. He has won wide acceptance among users with reliability, versatility and high comfort of use.

It is especially recommended for gates with the following parameters:
  • leaf length 3m
  • weight 200kg
FASTER opening wings to 90° may take 10 seconds (excluding the acceleration and deceleration phases)

RELIABLE SAFE encoder using magnetic actuator remembers the gate end positions are additionally secured limiters.

SILENT number of moving parts, the drive is reduced to a minimum, their deployment is protected by patent

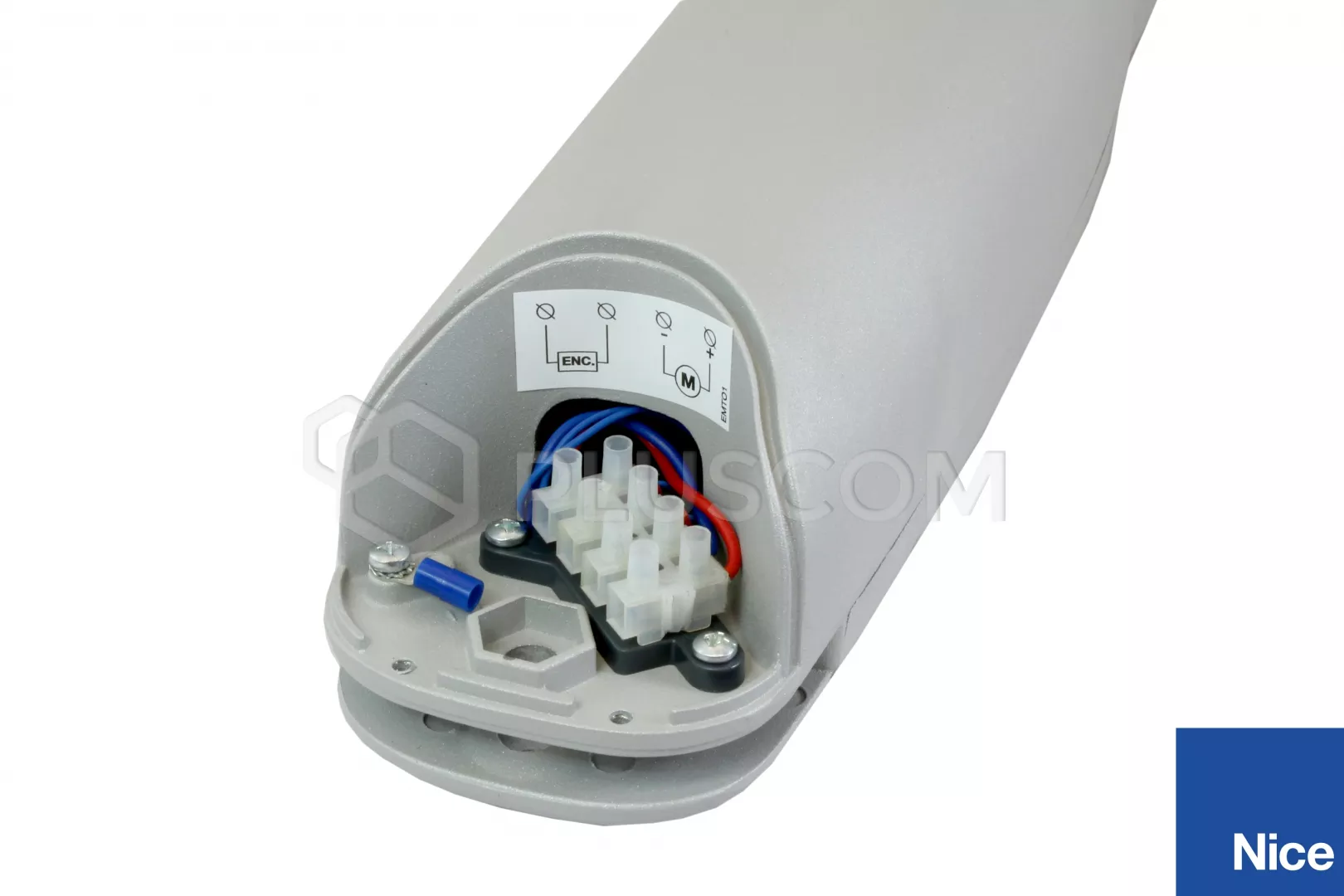

EASE OF USE easy access to the electrical connections of the actuator, convenient way emergency release actuator.

The work of the actuators is controlled by the MC824HR10 control panel, which implements a number of useful ones functions:
  • controlling the operation of two 24V actuators with an encoder
  • manual, semi-automatic, automatic operation
  • SM type connector for plug-in radio receivers
  • IBT4N connector for connecting BusT4 devices
  • BLUEBUS technology
  • auto programming during the first programming the control panel automatically determines and memorises the end positions of the gate
  • gentle start and release at closing
  • regulation of the speed of the actuators
  • function of partial opening of the gate - wicket
  • possibility of connecting the PS124 battery thanks to which the gate will open even when the mains power supply is disconnected
  • possibility of connection to the '' Solemyo '' solar power system
  • service of an electric lock
CONTROL UNIT PARAMETERS:
  • power supply of the control panel: 230V AC
  • rated power consumed from the 200W grid
  • degree of protection: IP54
  • working temperature -20 ° C ... + 50 ° C
  • dimensions: 310x232x122mm
  • Weight: 4.1 kg

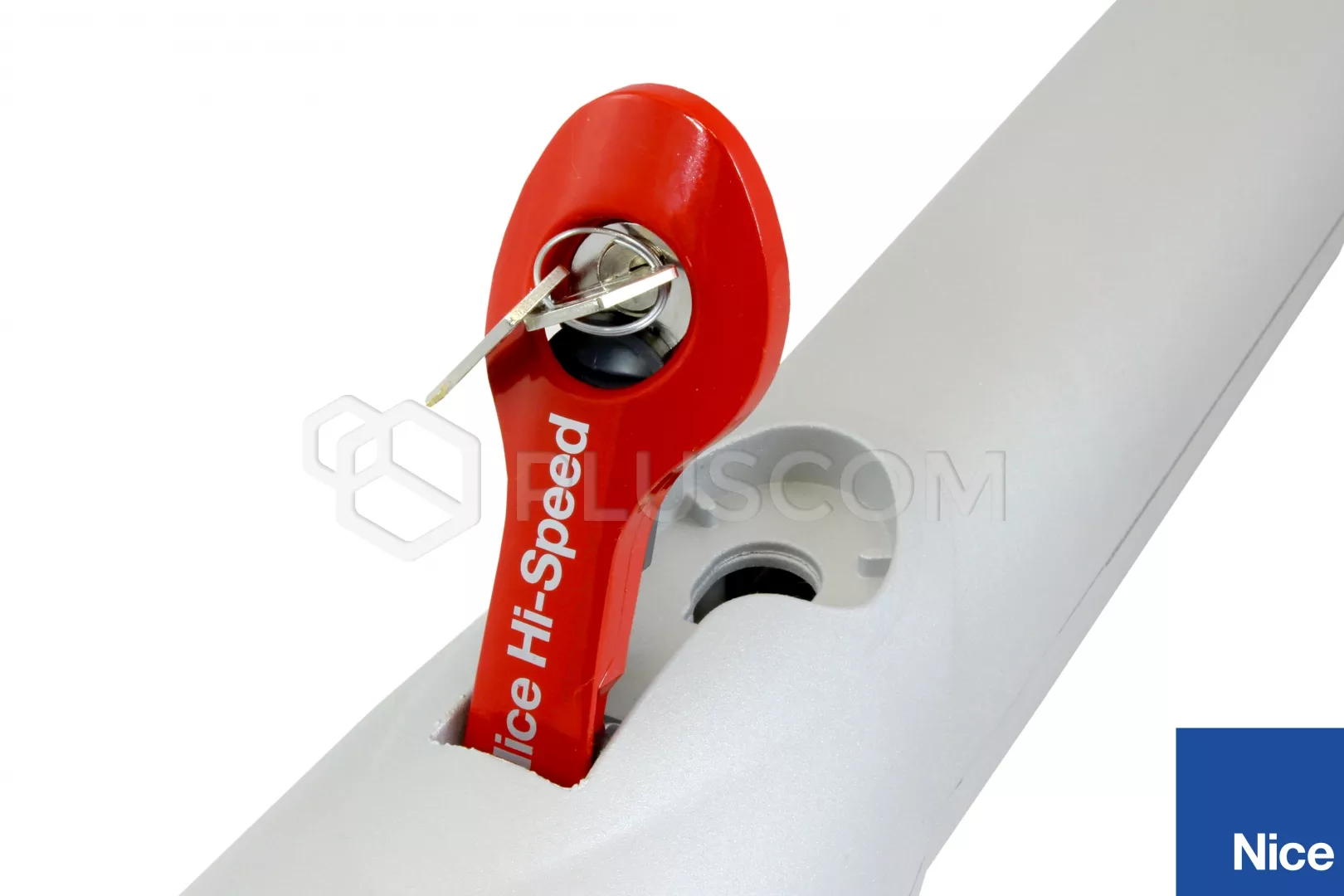

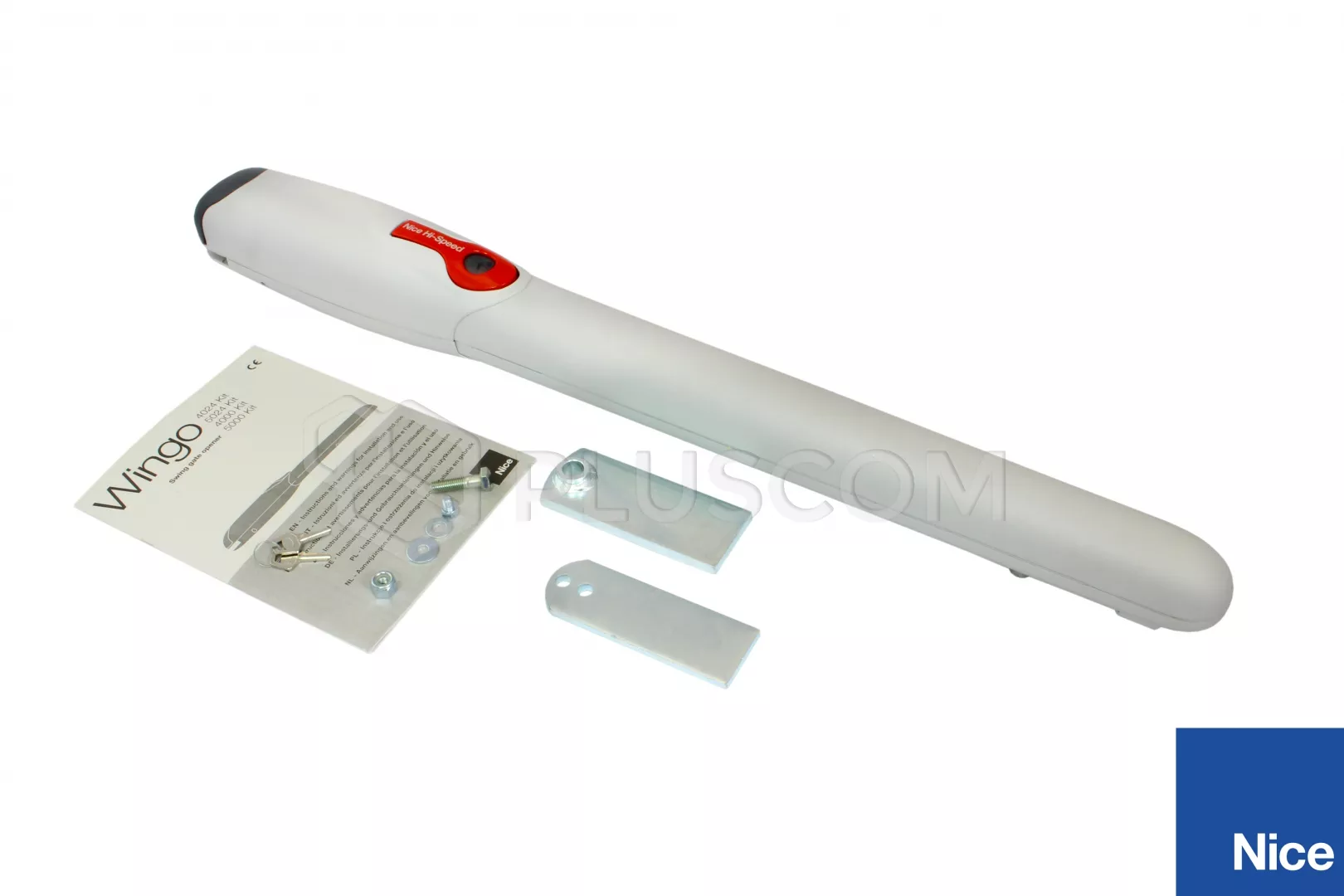

An aluminum lever is used for emergency disengagement of the drive. Together with the actuator, brackets are included for mounting the actuator on the post and to gate wings. The handles require welding.

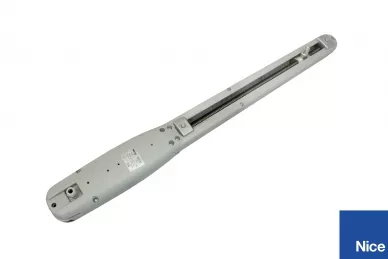

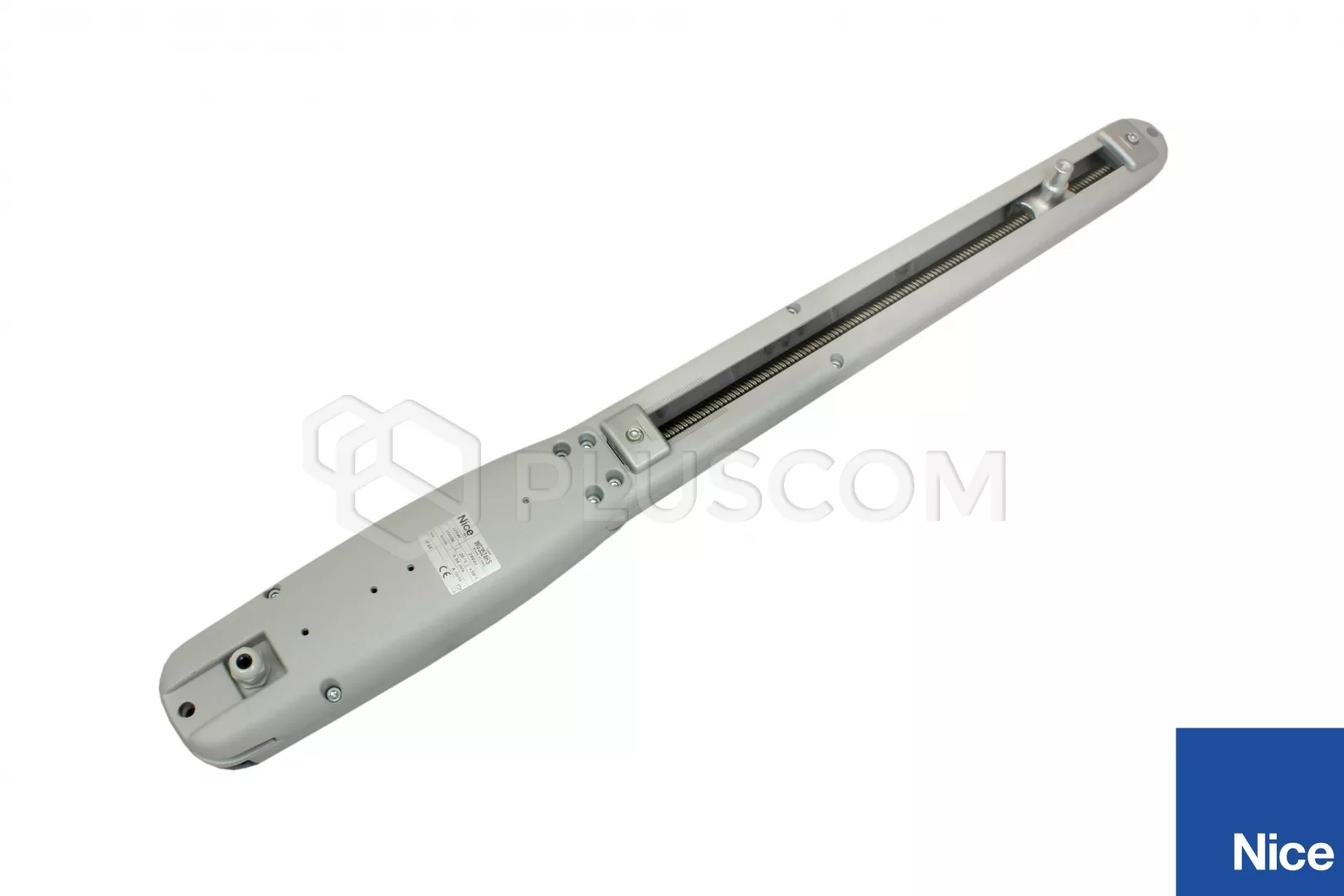

ACTUATOR PARAMETERS:
  • motor power supply: 24V
  • current load: max 5A
  • power consumption: 120W
  • speed: 0,04m/s
  • working stroke: 470mm
  • strength: max 1500N
  • intensity work: 30 cycles/h
  • operating temperature: -20°C...+ 50°C
  • degree of protection: IP44
  • weight: 6kg
Download
User Manual 1.05 MB
