Nice TOO3024 Telescopic actuator for swing gate 3m/300kg

Nice TOO3024 Telescopic actuator for swing gates 3m/300kg

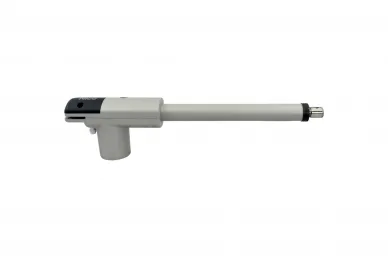

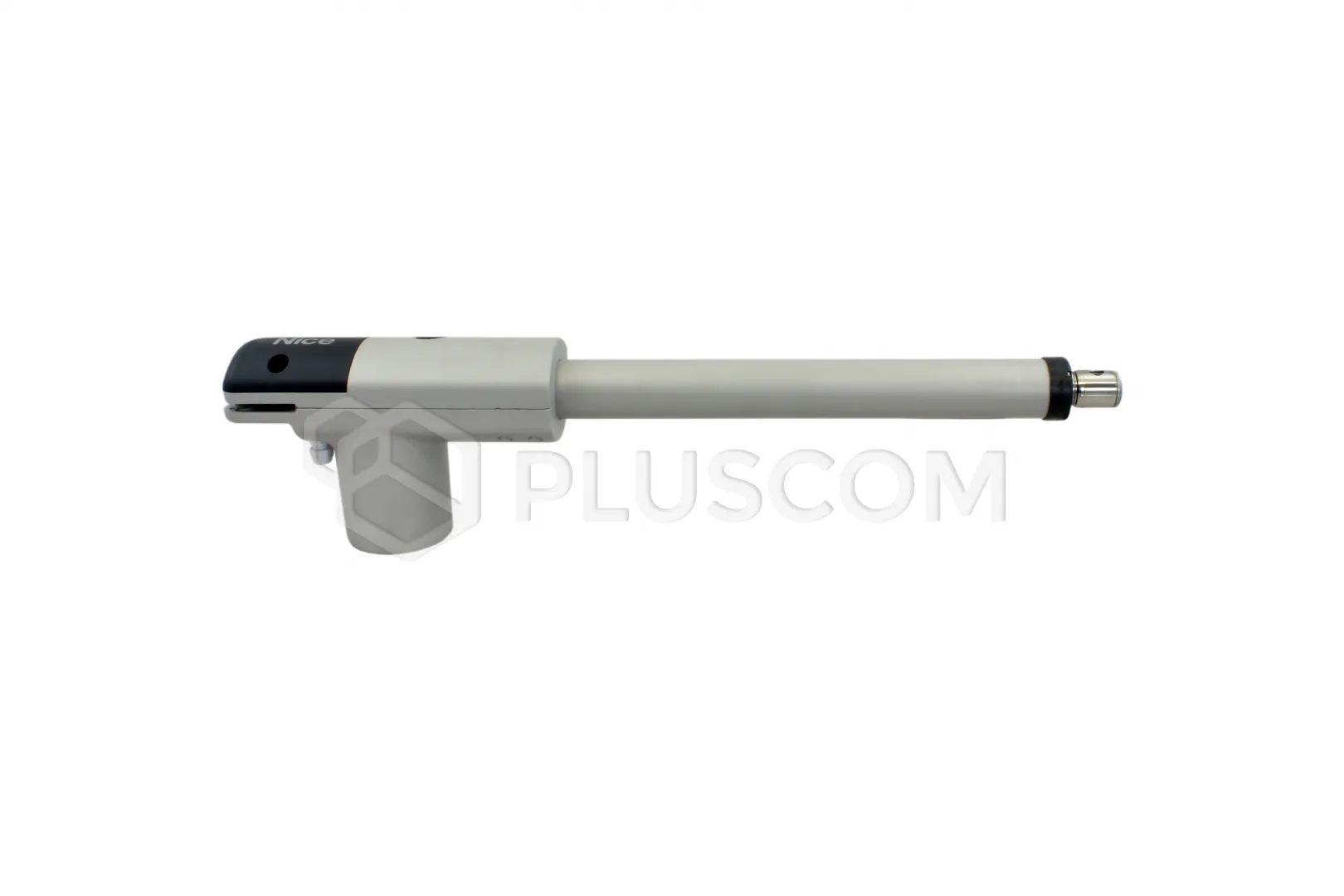

Telescopic actuator for swing gates, mounted on posts, with a wing length of up to 3m and a weight of up to 300kg. The drive is powered by an external control unit, to which it must be connected.
After work is finished, the gate is locked and cannot be opened manually. This eliminates the need to use additional locks. In the event of a power outage, the Nice triangular key lock is used for emergency release. By turning the key 90° clockwise, we release the lock and it is then possible to open the gate manually. By turning the key counterclockwise, we additionally lock the drive.

The actuator is connected and controlled from the MC424L control unit, which is a modern BLUEBUS control unit.
After installation, the control unit is ready to work with factory-set functions that are most frequently used.

CONTROL UNIT FUNCTIONS:

• automatic programming of end positions
• advanced: only three programming buttons, operating mode adjustment, opening time, LED diodes indicate enabled functions - programming logic as in Bluebus control units
• adjustment of force, pause time, speed, leaf relaxation, offset when closing
• possibility of connecting the Oview programmer using IBT4N
• built-in multi-system radio, memory of 100 transmitters (read in Mode 1)
• radio connector for SM, OXIBD receivers
• “Stand by” function, saving emergency battery energy
• “Phototest” function, increasing safety automation
• “Photo” and “Photo 1” input for connecting classic photocells
• “AUX” programmable input

TECHNICAL DATA:

• power supply: 24V
• current: 1.1A
• power: 120W
• speed: 0.014m/s
• force: 300N
• stroke: 400mm
• duty cycle: continuous
• protection class: IP54
• operating temperature: -20°C - 50°C
• dimensions: 700x100x177mm
• weight: 5.5kg
