Nice SPR32BDWKCER30 SPIDER800WKLT WIFI Kit for garage doors up to 12.6m²
with 3.2m rails and reinforced belts
PURPOSE OF THE DRIVE:
Automation of garage doors up to:
- Up-and-over door - up to 12.6m
- Sectional door - up to 11.4m
KIT COMPOSITION:
|
Nice SPR16BDWKCER30 SPIDER800WKLT WIFI kit for garage doors rail 2 x 1.6m STRIP
|

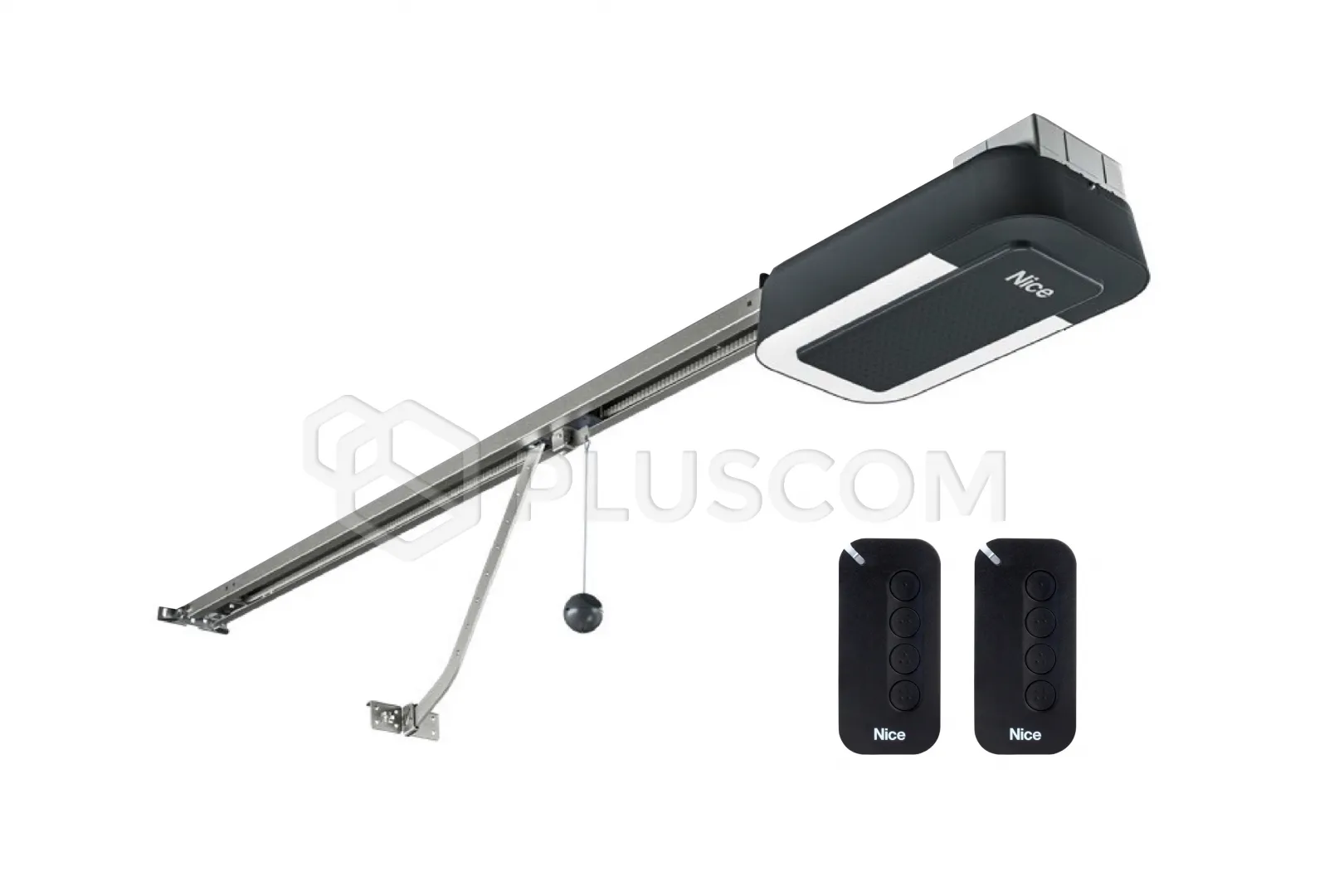

SPIDER is an electromechanical actuator for automating sectional and
swing doors.
The drive, with a pulling force of 800 N, is designed to operate sectional
doors up to 11.4 m² and swing doors up to approximately 12.6 m². The use of a
belt drive ensures very quiet and smooth operation.
The WKLT model has a built-in Wi-Fi module that allows you to control your
garage door using the MyNice app. This allows you to conveniently manage your
automation from anywhere using your smartphone, meaning you can control,
manage, check, and stay informed about your garage door automation anytime,
anywhere.
The gearmotor is equipped with a mechanical unlocking system that allows you to
manually open and close the door. These manual operations should be performed
in the event of a power outage, malfunctions, or during installation work.
The actuator is equipped with additional LED lighting. This illuminates the
area under the actuator when the maneuver begins. The lighting switches off
automatically when the actuator stops.
The built-in SPSPA600R30 control unit includes a radio receiver compatible with
all transmitters supporting NICE OPERA radio coding protocols. Additionally,
the control unit is connected to a stand-by SPTB807A power supply board, which
reduces power consumption in the device's sleep mode.
The

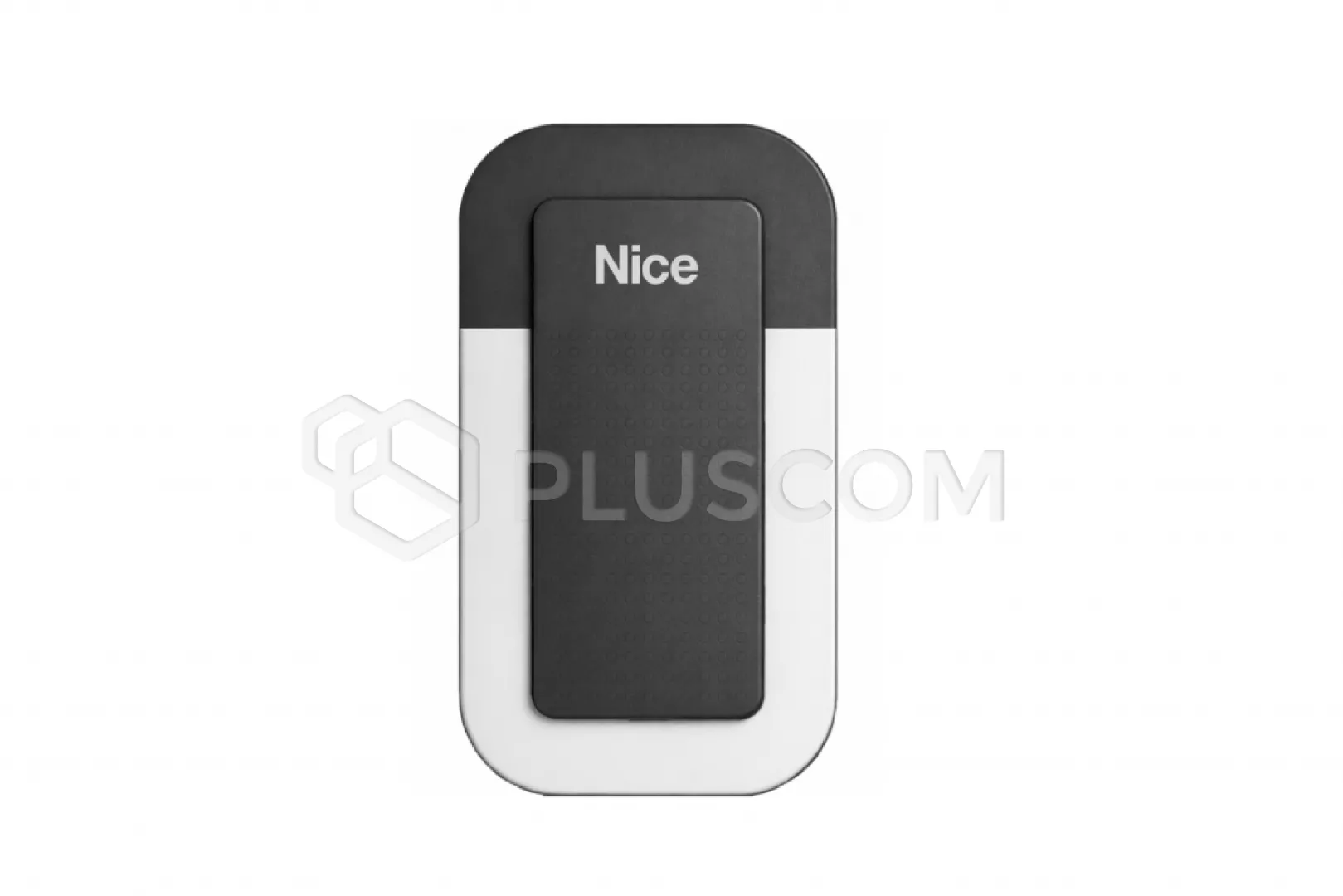

MYGO4 remote control provides radio control with a
dynamically rolling code at a frequency of 433.92 MHz, which ensures a high
level of user security and makes the code impossible to copy.
The MYGO4 has a secret code called the "TURN-ON CODE." By
transferring this code from a memorized transmitter to a new transmitter, the
latter is automatically recognized (and memorized) by the receiver.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with "O-Code" radio
coding.
TECHNICAL DATA:
- Power supply: 230 VAC 50/60 Hz
- Current: 1.1A
- Power: 180W
- Standby power: <1W
- Speed: 0.2m/s
- Force: 800N
- Work intensity: 50 cycles/day
- Protection rating: IP40
- Operating temperature: -20°C / +55°C
- Dimensions: 225 x 395 x 105.5 mm
- Weight: 4.9 kg
