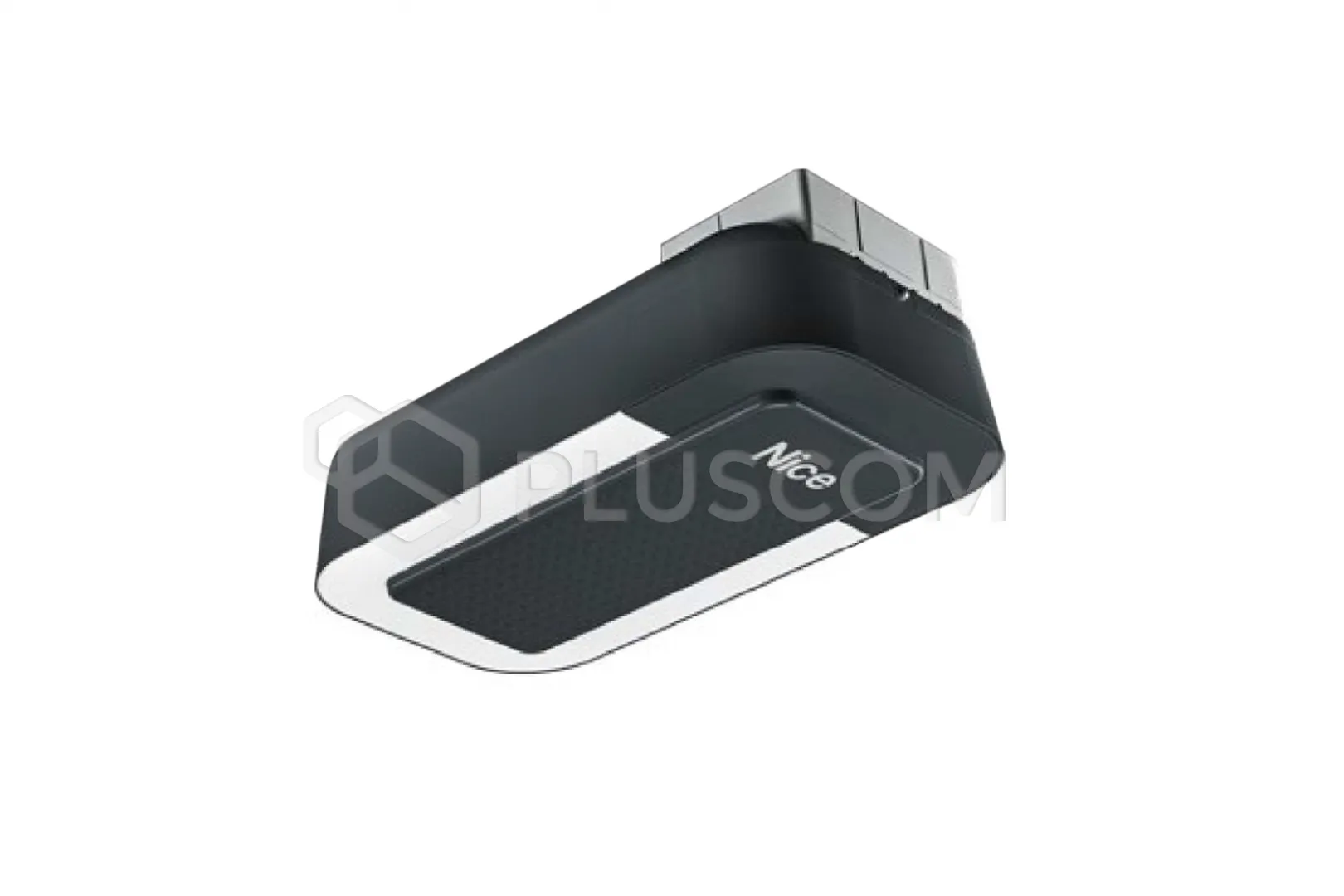

NICE SPIDER 800WKLT Drive for sectional doors up to 11.4 m² and overhead
doors up to 12.6 m²
SPIDER is an electromechanical actuator for the automation of sectional and
swing doors.
This drive, with a pulling force of 800 N, is designed for sectional doors up
to 11.4 m² and overhead doors up to approximately 12.6 m². The belt drive
ensures very quiet and smooth operation of the automation.
The WKLT model has a built-in Wi-Fi module that allows you to control your
garage door using the MyNice app. This allows you to conveniently manage your
automation from anywhere using your smartphone, allowing you to control,
manage, check, and know everything about your garage door automation anytime,
anywhere.
Security:
- Anti-theft function: If a break-in attempt is detected,
a notification will be received via the MyNice app and a new closing maneuver
will be automatically initiated.
- Eye Check, visual control system: Green and red LEDs
built into the motor indicate potential problems/maintenance requirements or
show that everything is running smoothly.
Gate lock after opening and closing. Once the gate has finished moving,
the motor automatically locks it, preventing it from opening. Thanks to this
feature, the user does not need to additionally lock the gate with a lock or
bolt, which increases comfort and safety.
The gearmotor is equipped with a mechanical unlocking system that allows the
gate to be manually opened and closed. These manual operations should be
performed in the event of a power outage, malfunctions, or during installation
operations.
The actuator is equipped with additional LED lighting. This illuminates the
space under the actuator when the maneuver begins. The lighting switches off
automatically when the actuator stops.
TECHNICAL DATA:
- Power supply: 230 VAC 50/60 Hz
- Current: 1.1A
- Power: 180W
- Standby power: <1W
- Speed: 0.2m/s
- Force: 800N
- Work intensity: 50 cycles/day
- Protection rating: IP40
- Operating temperature: -20°C / +55°C
- Dimensions: 225 x 395 x 105.5 mm
- Weight: 4.9 kg
