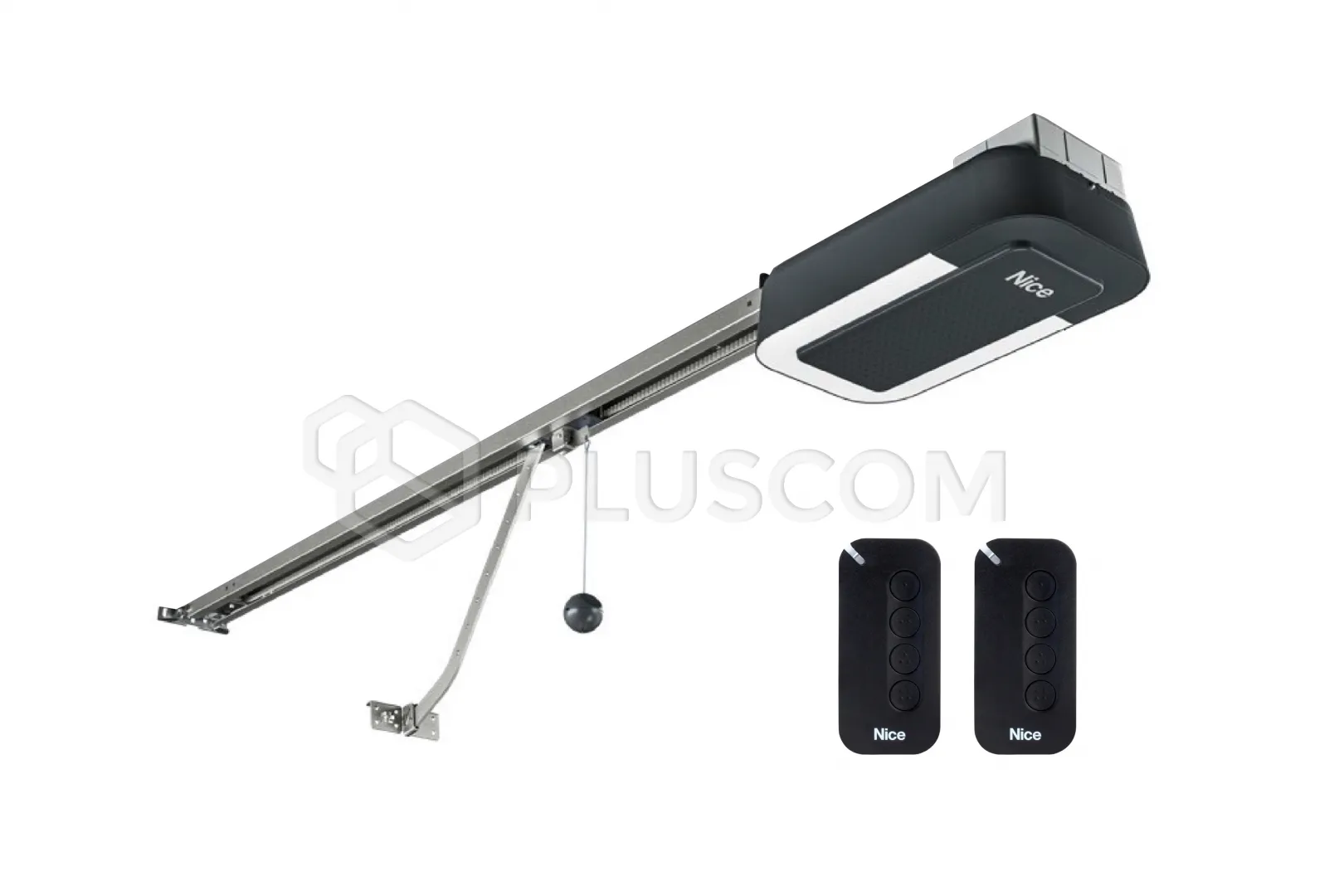

Nice SPR16BDKCER30 SPIDER800 Kit for garage doors up to 12.6m² with 2 x
1.6m rails with reinforced belt
PURPOSE OF THE DRIVE:
Automation of garage doors up to:
- Up-and-over door - up to 12.6m
- Sectional door - up to 11.4m
|
KIT COMPOSITION:
|
Nice SPR16BDKCER30 SPIDER800 kit for garage doors rail 2 x 1.6m STRIP
|
SPIDER is an electromechanical actuator for automating sectional,
swinging, and non-swinging doors.
Security:
- Anti-theft function: If an attempted break-in is
detected, a notification will be received via the MyNice app and a new
closing maneuver will be automatically initiated.
- Eye Check, visual inspection system: Green and red LEDs
built into the motor indicate potential problems/maintenance requirements or
show that everything is running smoothly.
Gate lock after opening and closing. Once the gate has completed its
movement, the motor automatically locks it, preventing it from opening. Thanks
to this feature, the user does not need to additionally lock the gate with a
lock or bolt, which increases comfort and safety.
The gearmotor is equipped with a mechanical unlocking system that allows the
gate to be manually opened and closed. These manual operations should be
performed in the event of a power outage, malfunctions, or during installation.
The actuator is equipped with additional LED lighting. This illuminates the
area under the actuator after starting a maneuver. The lighting automatically
turns off when the actuator stops.
The built-in SPSPA600R30 control unit includes a radio receiver compatible with
all transmitters supporting NICE OPERA radio coding protocols. Additionally,
the control unit is equipped with a stand-by power supply board, SPTB807A,
which reduces power consumption in sleep mode.

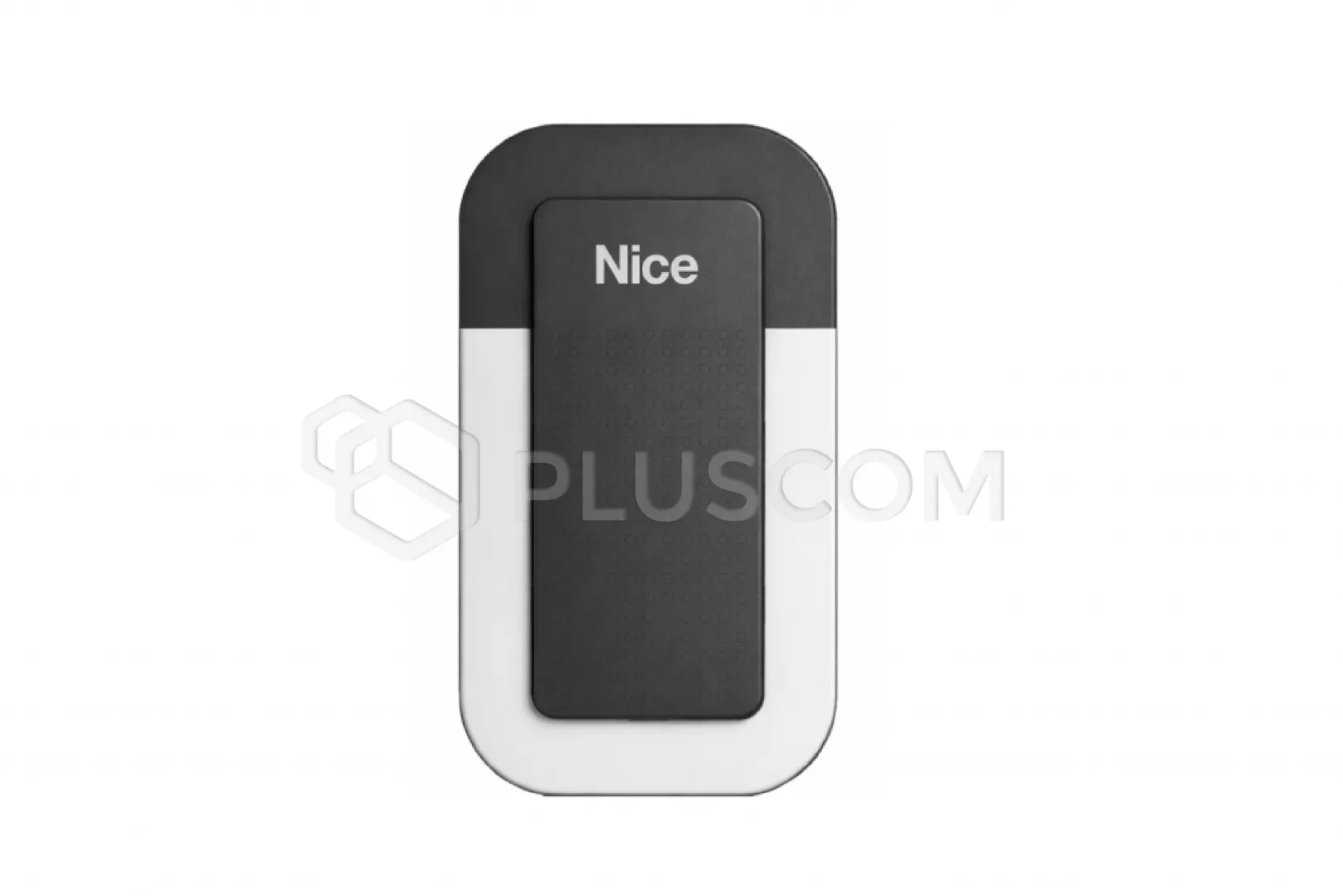

The MYGO4 remote control provides radio control with a
dynamically changing code at a frequency of 433.92 MHz, ensuring a high level
of operational safety and making the code impossible to copy.
MYGO4 has a secret code called the "SWITCHING CODE." By transferring
this code from a memorized transmitter to a new transmitter, the latter is
automatically recognized (and memorized) by the receiver.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with "O-Code" radio
coding.
TECHNICAL DATA:
- Power supply: 230 VAC 50/60 Hz
- Current: 1.1A
- Power: 180W
- Standby power: <1W
- Speed: 0.2m/s
- Force: 800N
- Work intensity: 50 cycles/day
- Protection rating: IP40
- Operating temperature: -20°C / +55°C
- Dimensions: 225 x 395 x 105.5 mm
- Weight: 4.9 kg
